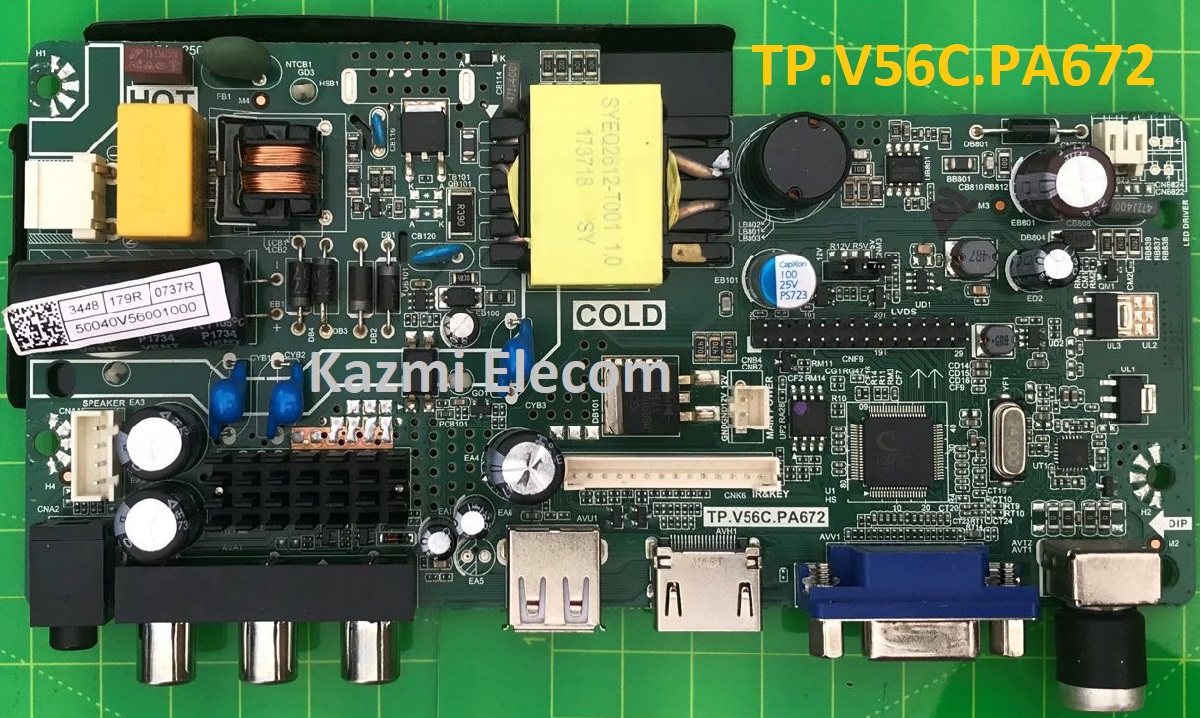

TP.V56C.PA672 LED TV Board
TP.V56C.PA672 is an analog TV board with the integration of a network driver board, power supply, and TV module. TP-V56C-PA672 with backlight power under 25W, the main promotion backlight voltage is between 25v-60V, and single backlight output. TP_V56C_PA672 is mostly used for 18.5″ to 24″ screens and can support resolutions up to 1920×1080. It has all the connectivity user interfaces like HDMI, AV, VGA, RF, and USB for multimedia playback and software upgrades as well. TP.V56C.PA672 firmware files are shared in this post for the technician’s support.
General Specifications:
Brand Name: China
Model Number: TP.V56C.PA672
Backlight Type: LED
Wide Screen Support: Yes
Display Format: 720P (HD)
Screen Size: 18.5-24 inch
Support Resolution: 1920×1080
Main IC: TSUMV56RJUL-Z1
OSD Language: English
Factory Mode: Menu+1147
Firmware Name: VST56C_4MB_57.bin
How to Update Software:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to the U disk based on your screen size
Step 3: Connect the U dish and TV Mainboard Via USB Interface
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done.
If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
(Note: During Step 5, the power supply can’t be cut off *The same firmware can only be burned once time)
Boot Logo Setting:
Step 1: Put your logo into the U disk
Step 2: Connect your U disk with the mainboard
Step 3: Find your logo in Multi-media File
Step 4: Select your logo
Step 5: Press No.”6 ” on the remote control to change to fullscreen play, then press “ok” on the remote control, on the bottom of the option items, there is a ” catch”, choose it. Done
Note: The following given Software is a USB bootable and backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
TP.V56C.PA672 firmware free download:
- TP-V56C-PA672 1366x768_CRISTOR_USB
- TP-V56C-PA672 1366x768_HYUNDAI_DUMP
- TP-V56C-PA672 1366x768_SONY_DUMP
- TP-V56C-PA672 1920x1080_SAMSUNG_DUMP
