TP.V56.PC815 Firmware Free Download

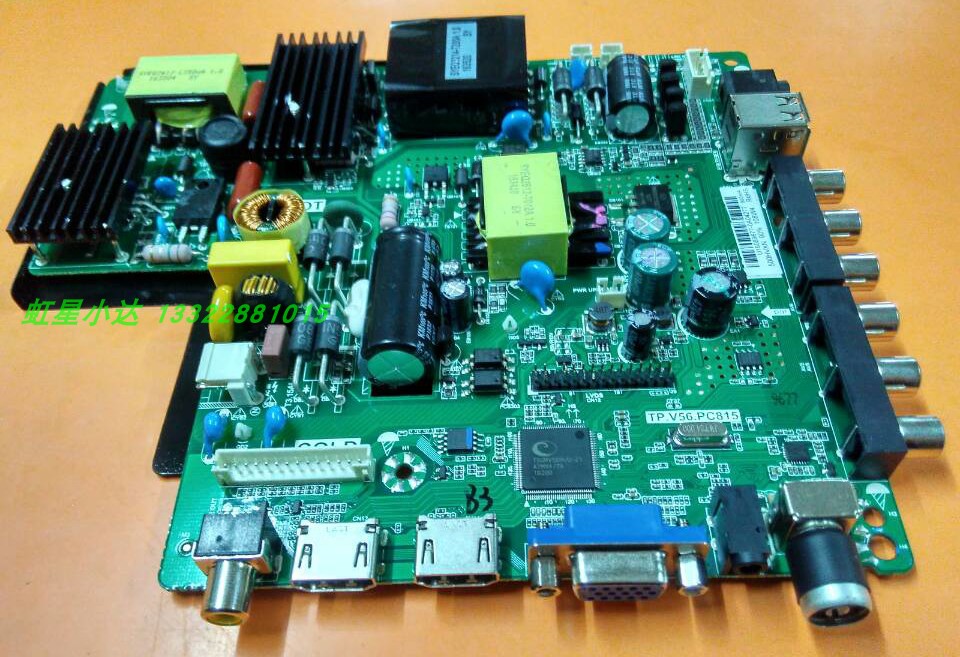

TP.V56.PC815 LED TV Board

TP.V56.PC815 is designed for an LCD/LED FHD TV Board that supports the screen size of 26″ to 42″. TP_V56_PC815 is three in one motherboard that has the main power module and an Inverter module in a single piece of a motherboard that is also called a combo board. TP-V56-PC815 is best with its interfaces like Dual AV, Dual HDMI input, Dual USB interface, PC Input with audio, and Headphone jack. It has 40 pins LVDS Connector screen cable and has 4Mb program storage memory. TP.V56.PC815 firmware files are given below for the Technician’s support.

General Specifications:

Brand/Mark: China Universal FHD Three-in-One Board

Model: TP.V56.PC815

Product: LED TV

LED Backlight Current: 480MA

Main Chipset: TSUMV56

Flash IC: 4Mb

Screen supported: 26-42 inch

Resolution: Up to 1920×1080

Panel Voltage: 12V

Power Input: 220V AC

Firmware Name: VST56_4MB_60.bin, VST56_4MB_72.bin, VST56_4MB_100.bin

Firmware Type: USB Upgrade

Service Code:

Menu+1147

Note: The following software/firmware is USB upgradeable and backup dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download TP.V56.PC815 Firmware File:

Download all parts of the following firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

How to Program:

1. Format the USB Disk with FAT32 System
2. Transfer the required resolution file into a USB
3. Insert the USB into the TV Motherboard USB interface
4. Connect the Keyboard&IR
5. Power on the Main Board and wait until the LED light Start Flashing
6. Keep watching while the LED light stops flashing. It is Done

TP.V56.PC815 firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	TP.V56.PC815_1366x768_General_USB	Download
2	TP.V56.PC815_1920x1080_General_USB	Download
3	TP.V56.PC815_Changhong Ruba LED50F3300_Dump	Download
