TP.V56.PB842 Firmware Free Download

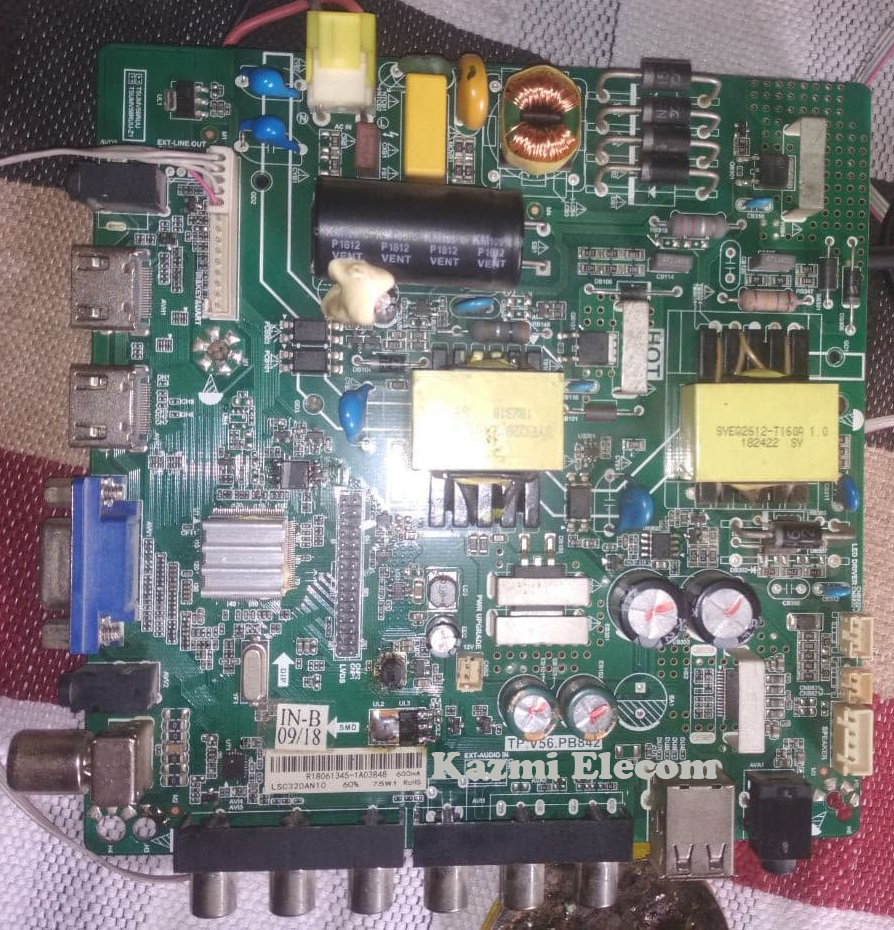

TP.V56.PB842 LED TV Board

TP.V56.PB842 is an analog LCD/LED TV ATV control card that is designed especially for Asian countries and the Middle East as well. TP_V56_PB842 is a combo card that is designed for the power supply unit and Inverter board with ATV Module three in one embedded board. This board supports 28 to 39-inch screens up to a resolution of 1920×1080. Its USB interface can support software upgrades and multimedia playback as well. TP.V56.PB842 firmware files are given below for technician support.

It’s designed to be used with Full HD television and LED panel cover. The demand in the Middle East and the Asia Pacific region can profit from this board. The quintet board has 3 functions in 1. The main power module, backlight inverter circuit module, and ATV card are integrated into this motherboard. This board has all introductory and empty anchorages according to the rearmost client conditions, similar as HDMI input, USB interface, PC input, corridor information, television, Scart, etc. The USB trading point can be used for software/ firmware updates and multimedia file playback.

General Specifications:

Brand/Mark: China Universal

Model: TP.V56.PB842

Main Chipset: TSUMV56RUU-Z1

Tuner Chip: R842

Product: LED TV Driver Board

Resolution: Up to 1920×1080

Panel: 28″ to 39″

Panel voltage: 12V

Backlight Adjust: Yes

Mirror Mode: Yes

Input Supply: 220V AC

Backlight: 600mA 75w

Speaker Output: 2x5W

Service Mode:

Source/Input 2580

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download TP.V56.PB842 Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

TP.V56.PB842 Firmware Collection Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	TP.V56.PB842_1366x768_Intex_Dump	Download
2	TP.V56.PB842_1366x768_Supra_Firmware	Download
3	TP.V56.PB842_1366x768_Intex_USB	Download
