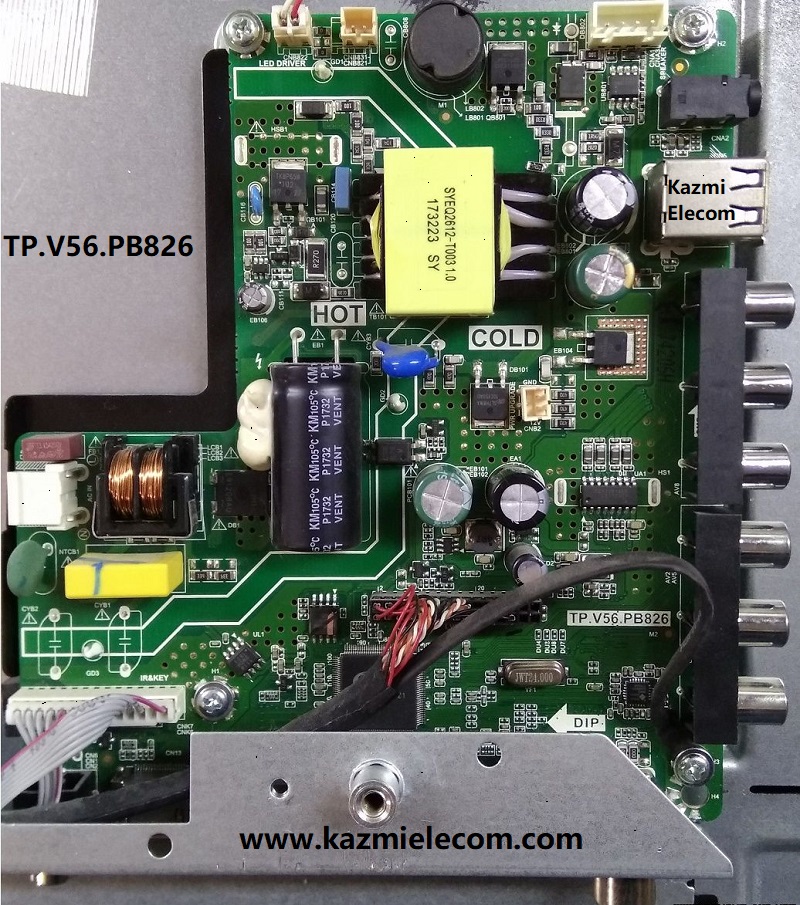

TP.V56.PB826 Combo LED TV Board
TP.V56.PB826 is an analog LCD/LED TV ATV control card that is designed especially for Asian countries and the Middle East as well. TP_V56_PB826 is a combo card that is designed for the power supply unit and Inverter board with ATV Module three in one embedded board. This board supports 28 to 32-inch screens up to a resolution of 1920×1080. Its USB interface can support software upgrades and multimedia playback as well.
General Specifications:
Brand/Mark: China Universal
Model: TP.V56.PB826
Main Chipset: TSUMV56RUU-Z1
Tuner Chip: R842
Product: LED TV Driver Board
Resolution: Up to 1920×1080
Panel: 28″ to 32″
Panel voltage: 12V
Backlight Adjust: Yes
Mirror Mode: Yes
Input Supply: 220V AC
Backlight: 45-65V 35w
Speaker Output: 2x5W
Service Mode:
Source/Input 2580
Note:
All Backup or Dump files can be loaded by the programmer. Can not upgrade by USB interface. All files are tested by myself. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.V56.PB826 firmware free download:
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | TP.V56.PB826_1366x768_Sony Logo and Remote_Backup Dump | Download | Download |
| 2 | TP.V56.PB826_1366x768_Samsung_USB | Download | Download |
| 3 | TP.V56.PB826_1366x768_Sony Logo_Backup Dump | Download | Download |
| 4 | TP.V56.PB826_1366x768_ATC-32 Inch_Backup Dump | Download | Download |
| 5 | TP.V56.PB826_1366x768_FLEXY-32 Inch_Backup Dump | Download | Download |
| 6 | TP.V56.PB826_1366x768_Telezone-32 Inch_Backup Dump | Download | Download |
| 7 | TP.V56.PB826_1366x768_Starsat 32led7 Hyper_Backup Dump | Download | Download |
| 8 | TP.V56.PB826_1920x1080_Samsung_Backup Dump | Download | Download |
| 9 | TP.V56.PB826_1366x768_ATA 32DM_Backup Dump | Download | Download |
| 10 | TP.V56.PB826_1366x768_StarX_Backup_Dump | Download | Download |
For video tutorials, visit my youtube channel.
please give me
I want to have a good training on how to repair LCD & LED TV plasma of all inches.
Do you have any guide to repair or detecting fault for this board. Mine runs few minutes then hand and nothing works. no button and a grrr sound from speaker.
watch some videos on youtube and get idea
i like kazmi elecom
Mpg2 सेट टॉप बॉक्स का लोगो चेंज करना बताएं सॉफ्टवेयर
Sir, i have tp. V56. Pb826 boarf on my aiwa 32 led tv. Problem is no red and green indicator light. I checked voltage on hot and cold voltages the voltage going to green read only 0.45v and going to red is 1.42v going to ir is 5v on both side.. The rest pin gives 3.3v. Can this be fix with your software? Thank you in advance to your responds ad answer.
I think the hardware issue. check voltage again 0.45v is doubtful. you can also try after it software by saving a backup of original
Your might be right sir i already check the voltage from 5v it goes to a very small smd i dont know if its a zener diode or resistor and came out 0.45v going to smd transistor of red and green indicator.. My problem is how could i know the value of this smd. And
is it better to replace whole board?
not confirm without checking. better to replace the board and keep the faulty board with you. whenever the same board you found then check the same faulty component and get it to repair
I have installed new board tpvs53u71.2 which was successfully functioning but the other day its remote stop working only key pad on off switch works.I tried my level best but could not do it.sir please the solution.
Ir sensor on TV maybe faulty
salam sir… maray pas TP.V56.PB826 CARD LAGA HUYA HAI AUR RESOLATION 1920*1080 AUR SIMPLE FRAMEWARE HAI …. MAIN APKI SITE SE SAMSUNG KA BACKUP UTHAYA HAI AB YEH BTAIN K JB MAIN FRAMEWARE CHANGE KRUN GA TO MUJHA REMOTE CHANGE KRNA PRA GA YA NAHI… BOTH SHUKRYA …..
w.salam dear remote change ho jye ga
Bhai mre pas china Samsung 32 inch led hai uska board khrab ho gya tha jo pb816 tha lakin ab pb826 lia hai wo lgaya hai to red light blink kr rahi hai khid hi aur back lights b khud hi on ho jati hen lakin display b ni araha. Plz bta den k konsa software krna hai aur kese krna hai. Shukria
behtar hoga kisi technician se set karwa len
सर मेरे पास एक 32 इंच इंटेक्स led negetiv picture ke fault से आयी थी उसका सर्विस मेन्यू में भी सेटिंग किया फिर भी ना हुआ model no,3801 tha .or usme v59t.pb706 board combo t con vala laga hua tha uska software 2 bar kiya to white screen ane lagi to fir uska jo back up liya softwere dala to panal black ho gai or back light ok thi sir kuch samaj nahi ata .rt809f se kisi ka bhi software dalu to aisa hi hota hai pls help me.
software change karen
This site can’t be reachedThe webpage at https://s6.scdn.online:8443/d/7644mfoe3jlyrzypoxntnnyfuw226wqkdmiwj37u7mixyvroe35bp6s2vad5rwqfhd2ladysq6o3ldwwjq7ymvtpyuu24tjnl7pcvb32otvmc34sl6nu4aybuufjskx2vsfyfc3jhon2jtbbqdq3poq/TP.V56.PB826_1366x768_Samsung_USB.rar might be temporarily down or it may have moved permanently to a new web address.
ERR_INVALID_RESPONSE
yehoi erroe ata hai kuch b download kr lo end me jakr
server issue. wait and refresh the page again and again
Dear Sir….i need the file “TP.V56.PB826_1366x768_Sony Logo and Remote_Backup Dump” Very Badly…..It Shows Error or file Expired…. Please Help Me to get the File…..Love From Bangladesh
Now you can easily download from Link.2
China remote working software plz
no password
THANK YOU SIR
Assalam O Alaekum
kaisy mezaj hain ap k ???
Sir kindly guide kejiye ga k yeh board, 42″ LED Panel k sath use kr sakta hun ???
Or kiya mujhy is ke bin file ka name change krna pary ga ???
(jaisy is ke default bin file install hue hai us k name sy USB main yeh software save kr k)
Navazish ho ge
w.salam
han g kar sakte hen. file rename ki zarorat nai backup file programmer se load hogi
Bohat Shukriya javab dainy k liye …
means k board sy EPROM nikal k koi bhe backup file jo ap ny upload ke hue voh programmer k through load krna ho ge ???
yes. panel resolution check kar k try karen
