TP.V56.PB759 Firmware Free Download

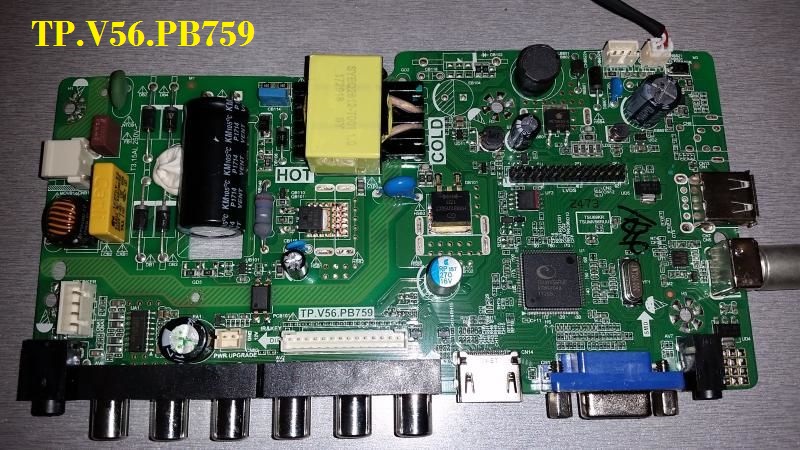

TP.V56.PB759 Universal Driver Board

The TP.V56.PB759 LCD/LED TV-specific ATV driver motherboard is simple. It is designed to be used with full HD LCD and LED screens. The Middle East and Asia Pacific markets can benefit from this board. The combo board has three functions in one. The primary power supply module, backlight inverter circuit module, and ATV card are integrated into this motherboard. This board has all the components and connectivity options as per the latest customer requirements like HDMI input, USB interface, PC input, Parts information, TV, Scart, etc. The ATV driver motherboard TP.V56.PB759 dedicated to TV/LED TV is easy.

It is designed to be used with Full HD TV and LED panel cover. The demand in the Middle East and the Asia Pacific region can benefit from this board. The combo board has 3 functions in 1. The main power module, backlight inverter circuit module, and ATV card are integrated into this motherboard. This board has all basic and empty ports according to the latest customer requirements, such as HDMI input, USB interface, PC input, parts information, TV, Scart, etc. The USB trading point can be used for software/firmware updates and multimedia file playback.

It also supports headphone output. To assist experts, the firmware file TP.V56.PB759 is listed below. The USB port can be used for software/firmware updates and playing multimedia files. It also supports headphone output. With the help of experts, the TP.V56.PB759 firmware files are listed below.

Basic Info:

Model No. TP.V56.PB759 (Combo Board)

Main Chipset: TSUMV56RUU

LED Backlight: 220mA to 280mA

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Panel Screen Support: 20″ to 32″

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Firmware Type: USB Upgrade and Backup Dump

Firmware Name: VST56_4MB_55.bin

How to Upgrade Firmware:

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.

Step 3: Connect the U disk with the Mainboard

Step 4: Connect the Keypad and IR also

Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,

Factory Service Mode:

Menu+1147

Note: The following is given TP.V56.PB759 firmware is a dump backup and USB upgrade. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download TP.V56.PB759 Firmware Files:

Download the following given TP.V56.PB759 firmware and then extract you will get the folder. Now load the file by a programmer. For More Details about the download, process watch the video Click Here

TP.V56.PB759 Firmware Files Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	TP.V56.PB759_1366x768_Fusion_Dump	Download
2	TP.V56.PB759_1366x768_Micromax_Dump	Download
3	TP.V56.PB759_1366x768_Ramesh_Dump	Download
4	TP.V56.PB759_1366x768_Sony_Dump	Download
5	TP.V56.PB759_1920x1080_Fusion_Dump	Download
6	TP.V56.PB759_1920x1080_Ramesh_Dump	Download
7	TP.V56.PB759_Micromax 24B900HDi_USB	Download

For video tutorials, visit on my YouTube channel.
