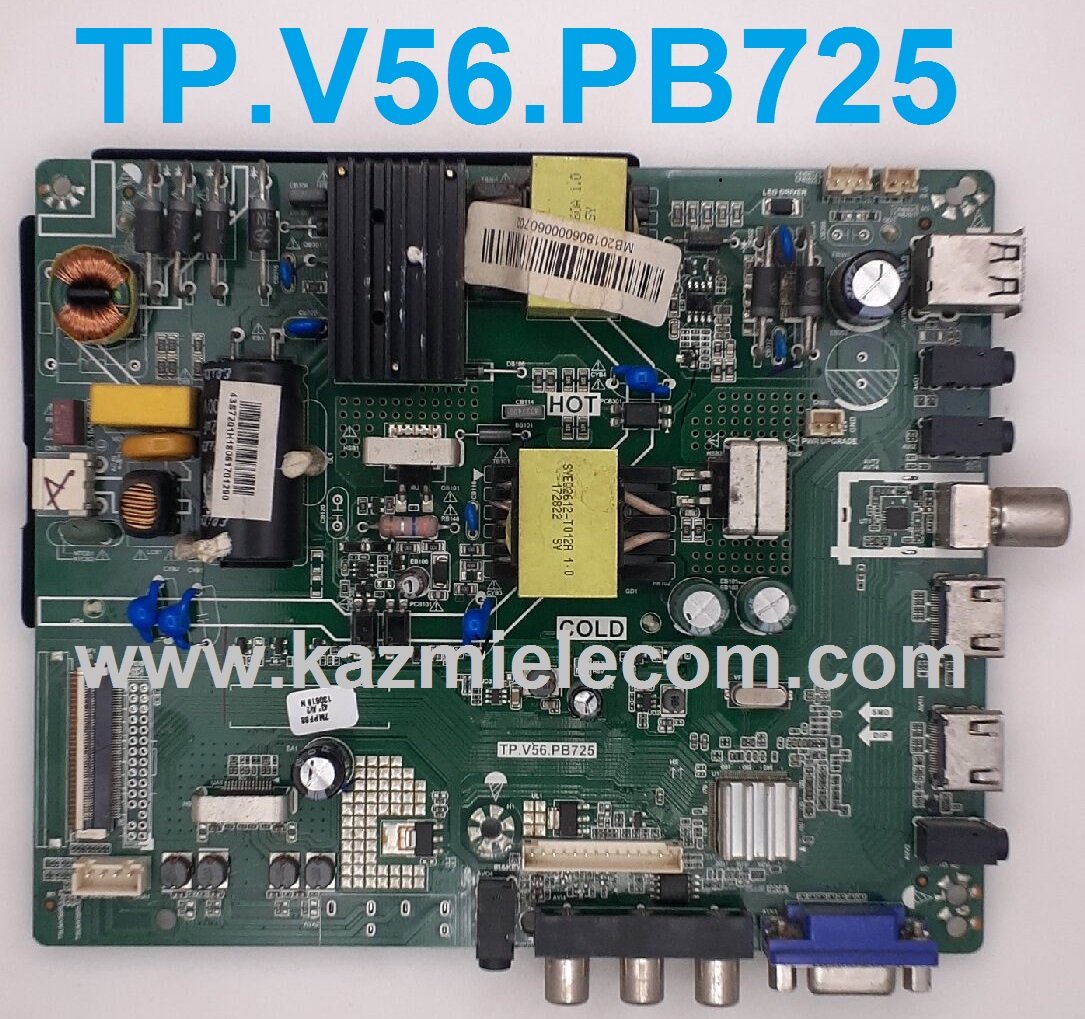

TP.V56.PB725 LED TV Board
TP.V56.PB725 is an analog LCD/LED TV ATV control card that is designed especially for Asian countries and the Middle East as well. TP_V56_PB725 is a combo card that is designed for the power supply unit and Inverter board with ATV Module three in one embedded board. This board supports 32 to 43-inch screens up to a resolution of 1920×1080. Its USB interface can support software upgrades and multimedia playback as well.
It is intended to be used with LED panel covers and full HD TVs. This board will benefit the demands of the Asia-Pacific and Middle East regions. The Quintet board serves three purposes in one. This motherboard integrates an ATV card, a backlight inverter circuit module, and a main power module. According to the latest customer situation, this board is equipped with all initial and empty anchors, such as HDMI input, USB interface, PC input, corridor information, TV, Scart, etc. Multimedia file playback and software/firmware updates are supported by the USB trading point.
General Specifications:
Brand/Mark: China Universal
Model: TP.V56.PB725
Main Chipset: TSUMV56RUU-Z1
Tuner Chip: R842
Product: LED TV Driver Board
Resolution: Up to 1920×1080
Panel: 32″ to 43″
Panel voltage: 12V
Backlight Adjust: Yes
Mirror Mode: Yes
Input Supply: 220V AC
Backlight: w
Speaker Output: 2x5W
Service Mode:
Source/Input 2580
Note:
All Backup or Dump files can be loaded by the programmer. Can not upgrade by USB interface. All files are tested by myself. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.V56.PB725 firmware free download:
