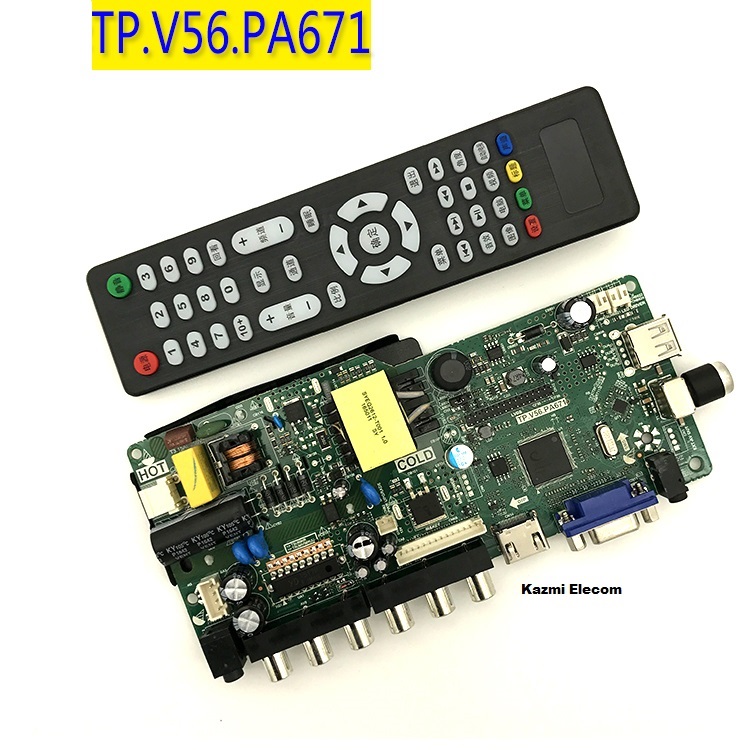

TP.V56.PA671 Universal LCD/LED Controller Board
TP.V56.PA671 is a combo universal non-smart LCD/LED TV Controller board.
Basic Info:
Model No. TP.V56.PA671 (Combo Board)
Main Chipset: TSUMV56RUE
LED Backlight: 220mA to 280mA
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC 220V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
Factory Service Mode:
Menu+1147
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download TP.V56.PA671 Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.V56.PA671 Firmware All resolutions Free Download Here :
| S.NO | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | TP.V56.PA671_General_1366x768_USB | Download | Download |
| 2 | TP.V56.PA671_General_1920x1080_USB | Download | Download |
| 3 | TP.V56.PA671_Samsung_1366x768 | Download | Download |
| 4 | TP.V56.PA671_Sony_1366x768 | Download | Download |
| 5 | TP.V56.PA671_TCL_1366x768 | Download | Download |
| 6 | TP.V56.PA671_TCL_1920x1080 | Download | Download |
| 7 | TP.V56.PA671_Mix-Panel_USB | Download | Download |
| 8 | TP.VST56.PA671_Saturn LED22FHD400U | Download | Download |
| 9 | TP.V56.PA671 General_1280x720_USB | Download | |
| 10 | TP.V56.PA671 General_1280x768_USB | Download | |
| 11 | TP.V56.PA671 General_1280x1024_USB | Download | |
| 12 | TP.V56.PA671 General_1440x900_USB | Download | |
| 13 | TP.V56.PA671 General_1680x1050_USB | Download | |
| 14 | TP.V56.PA671 General_1920x1200_USB | Download | |
| 15 | TP.V56.PA671 1600x900_Multi Logo | Download |
Dear sir i need TP.V56.PA671 SOFTWEREWE 1920/1080 RESOULATION
Regards
Raj electronics
Alrady shared in this post
TP. V56. PA671 ka 1600×900 resolution ka software upload kijie. PLEASE
https://www.mediafire.com/file/srxnkhx2lsbblx7/TP.V56.PA671_1600x900.bin/file
yeh file meri tested nai hy. ap try kar len aur reply zaror karna work karti hy ya nai
1600/900
i share it but not tested by me
Hello sir I want VS.TP53U51.2 board service menu cod plz.
Sir please send me v56.Pa671 software
list de hui hy download kar len
1600/900
Rt809f ka firmware kaise update karna please share
i need tp.vst59s.pb788
Tp.v56.pb756 software no 9866631139
TP.V56.PA671
TP.V56.PA671 SOFTWARE
tp.v56.pa671
HELLO
I AM FROM PUNJAB I NEED TP56.PA671 AKAI 24 INCH LED SOFTWARE
KINDLY PROVIDE THIS AS SOON AS POSSIBLE
THANKS WITH REGARDS
search with akai model number
Sir tp v56 pa671 bord mil Jay ga kya
koi new board laga den. yeh bhe mil jye ga per new nai mile ga. kisi technician k pas available ho sakta hy
Sr tp.v56.pa671 resuleson ..dawnload nehi.hoegya
ab try karen link set kar diey hen
sir 715G5635-M01-000-004K soft.please
is there software for dansat 24 inch(dte24bf) to last upgrade i will be thank full.
update not available
Pls help me to activate ur forum my mail is okwudiripaul15@gmail.com
Done
Dear sir up4ever is not working it says couldn’t generate direct link on any softwear we try to download
alternate link added
Sir mujhe cv59L-G23 board plane 1366×768 ka software chahiye aur Kya sir pendrive se software chadah sakta hai kya.
NA
than tp.v56.pa671 software
I’m facing a problem with my tv set having TP.V56.PA671 mainboard. After using it for a few days, it’s not switched on properly when I power on the TV. I needed to switch the power on or off 6-7 times, then it switched on.
Should I need to upgrade my mainboard software or have any other technical issues?
I’ll be glad if you mail me the solution.
{neloyhstu@gmail.com}
It seems to be a hardware issue. may some FET switching fault or main chip is dry or dusty
Hie.
Tp.v56.pa671 1440×900 firmware loaded successfully using rt809H but tv is stuck in burning mode nothing works, remote control does not work and tv buttons also not working. Only Blue, Green, White and Red solid colours continuously alternating.
Please can you assist to get out of burning mode or provide alternative firmware.
Thanks very much.
resolution mismatch
Can you please assist with correct resolution firmware for TP.V56S.PA671 1440×900(19″ screen). The one provided shows changing solid blue, red, green & white colours with 3 chinese characters written on the screen, remote and buttons are not responding so I’m failing to get out of this burning mode.
Please help.
this happens due to panel resolution mismatch
