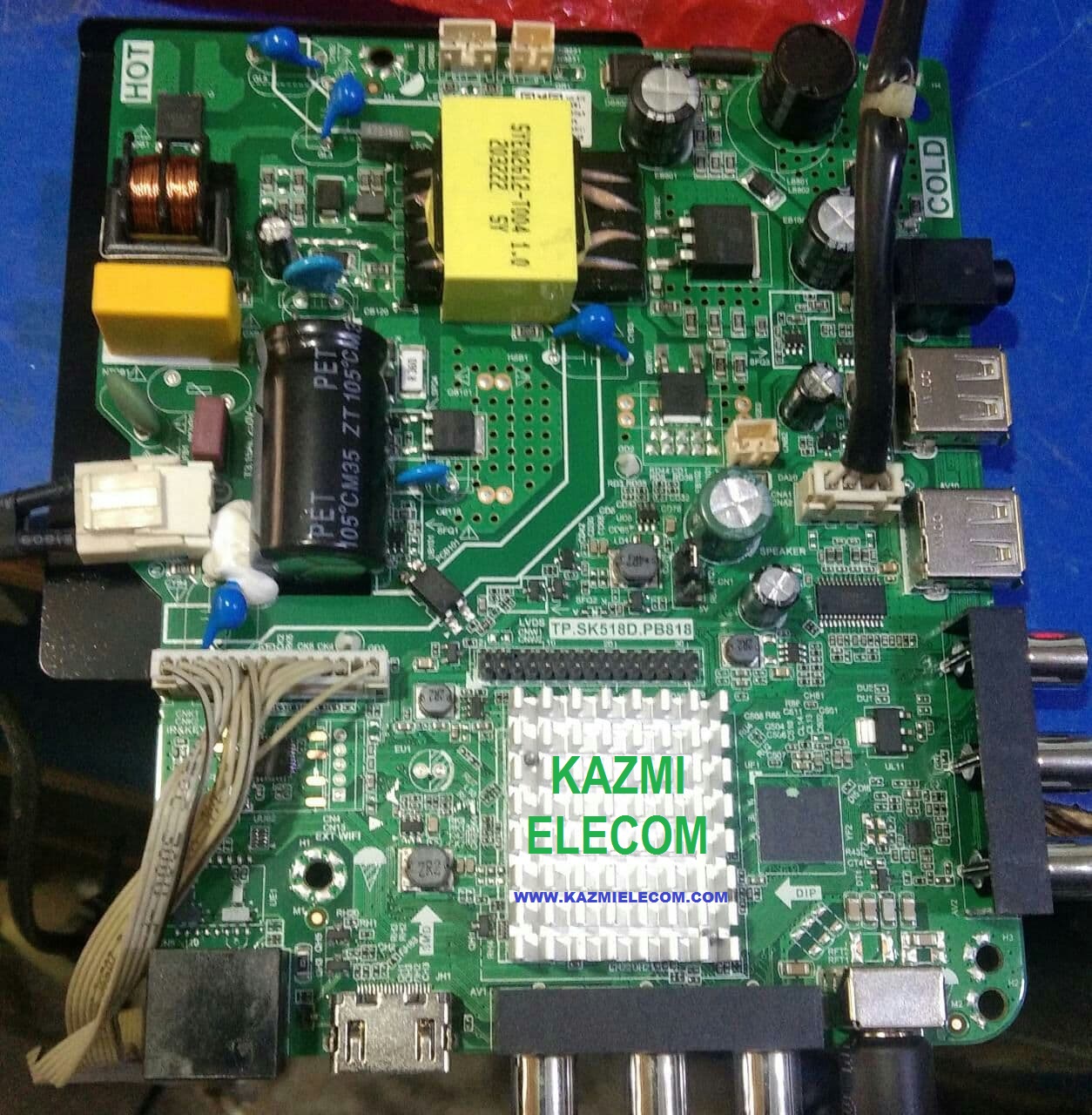

TP.SK518D.PB818 Smart Android Board
TP.SK518D.PB818 is an android network driver smart led tv board with an FHD resolution of 1920×1080. TP_SK518D_PB818 has a powerful wifi system. Smart FHD TV With the latest Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP SK518D PB818 Smart Board has multiple ports A/V, USB interface Ports, and a single HDMI port as well in addition to the VGA interface for computers. TP-SK518D-PB818 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.SK518D.PB818 is a Combo Network Triple play board that has the Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of this android board are very good and the Response rate is very efficient. TP.SK518D.PB818 china smart network board is the best fit for 32″ LED Panels. TP.SK518D.PB818 firmware file is available for the technician’s support. If you are facing any issues during firmware installation then visit and read here first.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK518D.PB818
Main Chipset: MT9255
Operating System: Android 9.0
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Mali-G31MP2
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512MB/1GB
ROM: 4/8 Gb
Resolution: up to 1920×1080
Screen Size supported: 32 to 42 Inch
Audio Output power: 2x8W
Mirror Mode: Yes
Logo Change: Yes
Bluetooth: Yes
Tuner: ATBM253
Input Voltage: 200-240V AC
Firmware Name: allupgrade518_4GB_512MB_sos.bin, allupgrade518_8GB_1GB_sos.bin
Firmware Type: USB Updateable Firmware
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Sir,please provide service code for TP.SK518D.PB818
try input/source 2580
menu1147
Sr tp.sk 518d.pb818 Sr is ka code Bata den
Menu 1147 or Source 2580 try karen otherwise apko one by one try karna hoga
https://www.kazmielecom.tech/all-lcd-led-service-menu-code/
Service menu code is 1147 But You Need To Type It very Quick
sir mi ni tp.sk518d.p818 ka softwear lode kar deya hi. ab tv per remot kam nahe karrah… us ke leye konsa remote khared lo… sir ples muj emai zaror kare…
china wala enter remote use karen. ya phir koi bhe universal remote laga len
Samsung
Led software
ATV ,TV mode
Source menu me show nahi no reha
Wisdom share ki LCD ha.
Av1,av2,hdmi,hi show hi reha ha
TV mode kese enable kre?
indian software me ATV aksar disabled hota hy. change software
1920×1080 available ? For the same board.
NA
Tp.sk529.pb818
Softwear
App kay pass yeh softwear hai to kaisay lana hai
can l update this software skyworth tv 32tb7000 model Android tv
No
please give suggestions for my TV upgrade. stuck skyworth logo and upgrade error I can’t find firmware my tv
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
hi sir I need your help. for upgrade Wich files should copy to USB
not for an upgrade. if the TV malfunctioning then you can load it
sir I upgrade my TV after. complete upgrade TV get reboot but only skyworth logo come then automatically turn off I can’t operate malfunctioning…. please please give me the solution….I downloaded upgrade file from http://www.skyworthphilleepn web site. thanks for replying sir
contact Skyworth support center
how can i find led tv software
type in search box upper top right corner
Tp.sk518d.pc821 firmware required
NA
were you able to find the firmware?
i am also looking for same.
please let me know.
i change the logo how change and which file given
tp.sk518d.pb818 firmware 1gb
My smart tv is showing “Launcher is not activated “,what to do?
Lan connection is connected with Rj 45 but not taking data but in laptop its working swiftly,kindly suggest how to activate launcher
Sir TP SK518D PB818 1920×1080 part 4,5 and 6 cannot be downloaded, please help.
links working
After successful update I removed power cable, put it back on tv entered burning mode flashing blue green red white colors, please help
maybe panel resolution mismatch
no, panel resolution 1920×1080
Panel resolution ok, checked. 1920×1080, but tv is in burn/ageing mode(blue, green, red, white colors on screen.) how to get our of burn mode, i tried pressing power button for 30 seeconds. not working.
https://forum.kazmielecom.com/showthread.php?tid=1916&highlight=burn+mode
after software there is only black screen fix?
I installed sk518D.pb818 software but after installing the software the remote cannot working
try some other remotes or use universal remote
I have a vitron 43 smart tv. it has developed the same issue, model number is HTC4368FS. How can I get it to work again
My number is TP.SK516S.PB803 Unfortunately the software or firmware is not on the list on your website. Please assist.
Not available right now.
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Unfortunately this method has failed that is why, can i use a software with different board number to update?
No
Hi beryl, I have the same model and the same issue. Did you find a solution?
tp.sk518d.pb818 is ka software download ni ho raha help
Tp sk518d pb818 me software update ky baad mukhtlif rangon ki line arhi hain. Ye burn ya ageing mode nhi ha.Software dobara install bhi nhi horha.
resolution mismatch
cx-56ud925 is ka softwate update mil jy ga ya nhi
No
dear sir
tp.sk518d.pb818 (8gb &1 gb)
1920×1080 software link send me please
My TV has the this mainboard, is 39 inches, I downloaded the firmware and its dosen’t install, it dosen’t Run anything… Please help me
Dear sir
Tp.sk529.pb108b (2 &16)
1920*1080 software link send me please
Sir i need software “ TP.SK518D.PC821”
PC821 not available. install PB802 or PB818
I have installed ، pb802, But I get a message “ please activate license “
SIR MUJHE 42 INCH LCD KA SOFTWARE CHYE BOAR MODEL TP.SK529 PB816 YE MODEL PLZ AGER AP KE PASS TO SEND KRWN MERA WHATSAPP NUMBER YE 03002905803 PLZ SEND ME
i have wisdom share tv model “tp.sk518d.pb818”.Netflix is not runing on tv anymore as netflix stop supporting this device.
i want to know is there any custom rom or trick to run netflix?
or should i have to buy new tv?
No way, Its android version is old. Only change mainboard with latest android version not a TV
Please how would he do that
It is possible to install linux on it?
No experience
Bhai ya ma na order kar na ha
apni local market se pata karen
tpsk518bp818
tp sk518d pb818 software plz TP.SK518D.PB818-1366X768-512M-4G-
download
