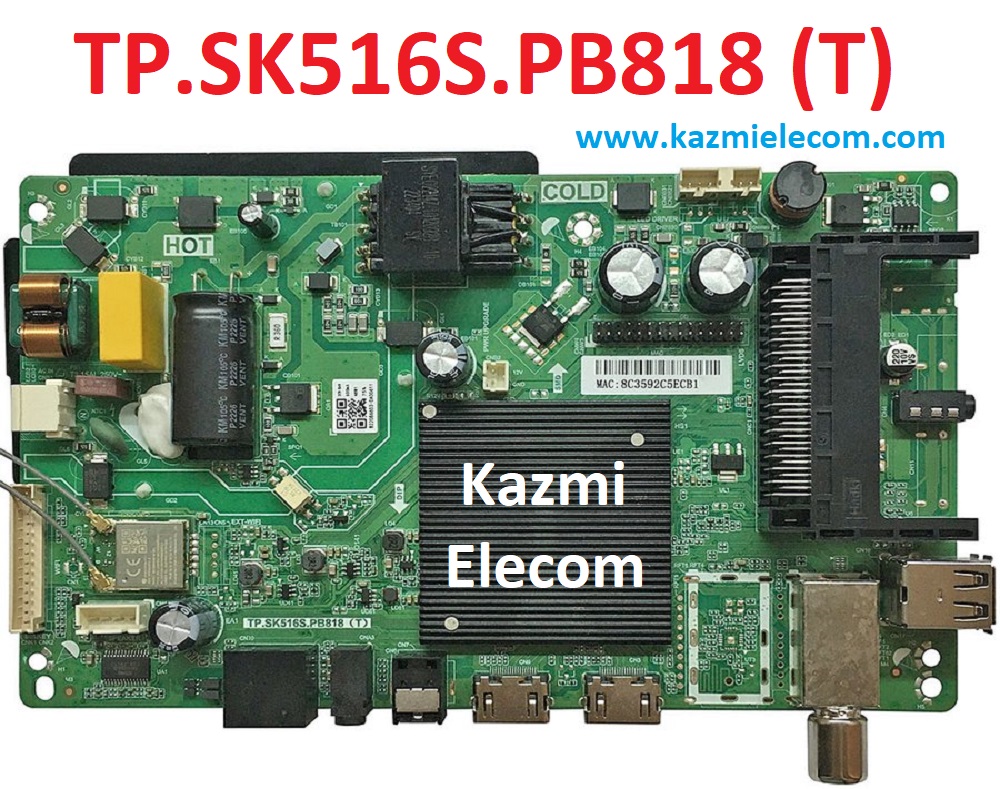

TP.SK516S.PB818 Android Smart Board
TP.SK516S.PB818 (T) is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_SK516S_PB818 has a powerful wifi system. Smart FHD TV With the latest Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP SK516S PB818 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to the SCART interface. TP-SK516S-PB818 has a LAN/RJ45 Connector interface port for the wired internet network.
TP.SK516S.PB818 is a Combo Network Triple play board that has the Digital TV tuner (Optional) built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of the TP-SK516S-PB818 Android board are very good and the Response rate is very efficient. TP.SK516S.PB818 China smart network board can support up to 24″ LED Panels. TP.SK516S.PB818 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: CVTE Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK516S.PB818
Main Chipset: MT9256AAATEX
Operating System: Android 11.0
CPU: Multi Core Arm Cortex A53 64-bit
GPU: CA55*4
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 1GB
ROM: 8 Gb
Resolution: up to 1920×1080
Screen Size supported: 24 to 32 Inch
Audio Output power: 2x10W
Mirror Mode: Yes
Logo Change: Yes
Bluetooth: Yes
Tuner: RAFAEL R842
ATV System: PAL, SECAM,NTSC
DTV System: DVB-T, DVB-C, DVB-S2
Input Voltage: 200-240V AC
Firmware Name: allupgrade516_8GB_1GB_ref00.bin
Firmware Type: USB-Bootable
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download TP.SK516S.PB818 Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.SK516S.PB818 Software file for free download:
- TP-SK516S-PB818 1366×768 1G-8G REF38.part1
- TP-SK516S-PB818 1366×768 1G-8G REF38.part2
- TP-SK516S-PB818 1366×768 1G-8G REF38.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
