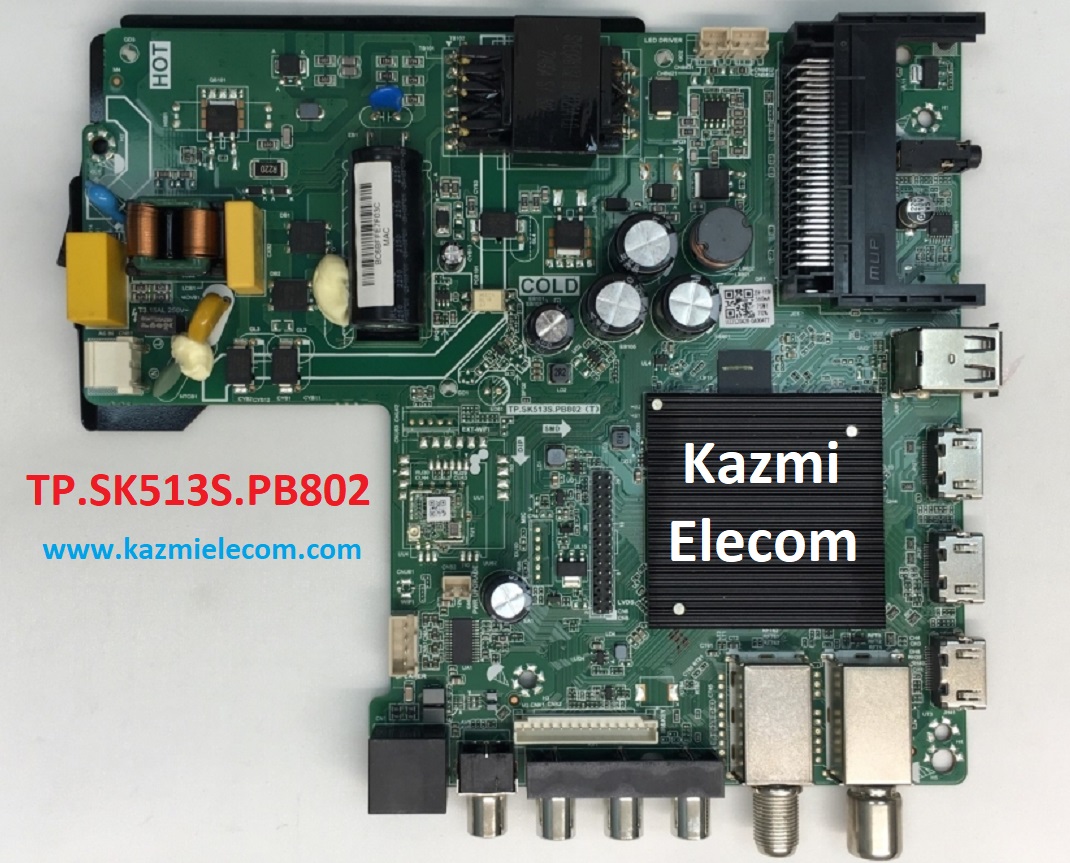

TP.SK513S.PB802 Smart Android Board
TP.SK513S.PB802 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_SK513S_PB802 has a powerful wifi system. Smart FHD TV With the latest Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP SK513S PB802 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to the VGA interface for computers. TP-SK513S-PB802 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.SK513S.PB802 is a Combo Network Triple play board that has the Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of the TP-SK513S-PB802 Android board are very good and the Response rate is very efficient. TP.SK513S.PB802 China smart network board can support up to 43″ LED Panels. TP.SK513S.PB802 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: CVTE Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK513S.PB802
Main Chipset: Amlogic T950D4
Operating System: Android 13.0
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Mali-G31
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 1GB
ROM: 8 Gb
Resolution: up to 1920×1080
Screen Size supported: 24 to 43 Inch
Audio Output power: 2x10W
Mirror Mode: Yes
Logo Change: Yes
Bluetooth: Yes
Tuner: RAFAEL R842/RAFAEL RT710(DVBS)
ATV System: PAL, SECAM,NTSC
DTV System: DVB-T, DVB-C, DVB-S2
Input Voltage: 200-240V AC
Firmware Name: allupgrade_aml950d4_an13_8G_1GB_70.img
Firmware Type: USB Bootable
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.SK513S.PB802 Software file for free download:
Hello
How can we change the panel type from GENERAL_1366_768 to GENERAL_1920_1080 ???
if you change the FHD panel then software also must be 1920×1080
I tried a lot but could not update with the file that is on the site
I held the power button and connected the USB and plugged it in. It has no effect
Not for upgrade. if TV is stuck on logo then you can load it. Change USB disk
I tested several USBs and it didn’t make any difference
Is there a way to set the Samsung remote control to this chassis?
Dear Support i need TP.SK513SPB802 (N) Firmware update
Resolation 1920 x 1080
Model – Dansat DTD43BF SMART TV
Update not available
Thanks a lot it’s good
Hello Sir. I have this model but the img file seems to be corrupt. Can I get a working version?
download all three parts and get allupgrade_aml950d4_an13_8G_1GB_70.img
