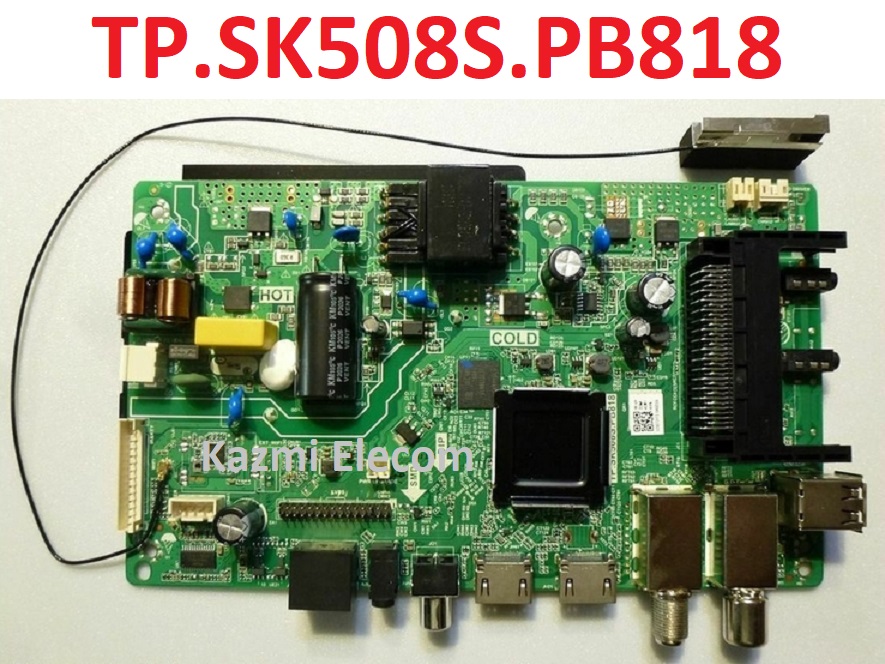

TP.SK508S.PB818 Smart Android Board
TP.SK508S.PB818 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_SK508S_PB818 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP SK508S PB818 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to the VGA interface for computers. TP-SK508S-PB818 has a LAN/RJ45 Connector interface port for the wired internet network.
TP.SK508S.PB818 is a Combo Network Triple play board that has the Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of the TP-SK508S-PB818 Android board are very good and the Response rate is very efficient. TP_SK508S_PB818 China smart network board can support up to 32″ LED Panels. TP.SK508S.PB818 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK508S.PB802
Main Chipset: Hi3751V350
Operating System: Android 9
CPU: Arm Cortex A53*4
GPU: MaliT470MP3
CPU Frequency: 1000-1300MHZ
GPU Frequency: 550MHz
Backlight: 18-60V 350mA 40W
RAM: 1GB
ROM: 8G
Resolution: up to 1920×1080
Screen Size supported: 15.6 to 32 Inch
Audio Output power: 2x8W
Mirror Mode: Yes
Logo Change: Yes
Tuner: R842
Input Voltage: 200-240V AC
Firmware Name: allupgrade_V3510D0N_8G_1G_38.bin
Firmware Type: USB Upgrade
Note The following given Software/firmware is a USB Boot file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download TP.SK508S.PB802 Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.SK508S.PB818 firmware file for free download:
- TP-SK508S-PB818 1366×768-1G-8G-DEXP.part1
- TP-SK508S-PB818 1366×768-1G-8G-DEXP.part2
- TP-SK508S-PB818 1366×768-1G-8G-DEXP.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
