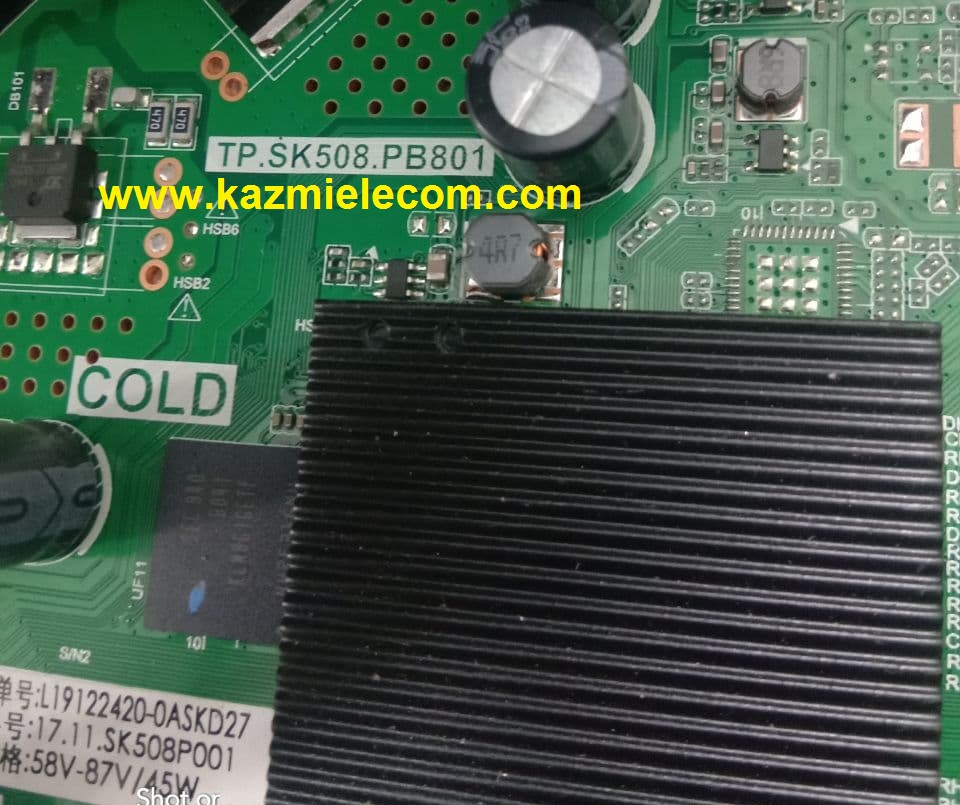

TP.SK508.PB801 Smart Android Board

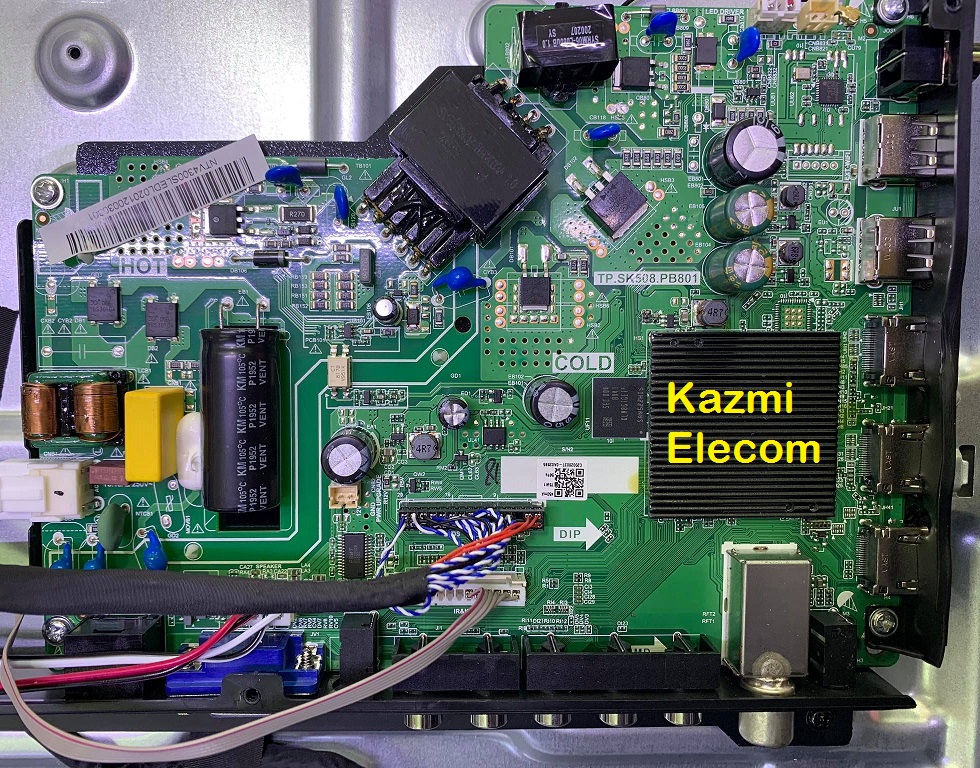

TP.SK508.PB801 is an android network driver smart led tv board with an FHD resolution of 1920×1080. TP_SK508_PB801 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP SK508 PB801 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to the VGA interface for computers. TP-SK508-PB801 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.SK508.PB801 is a Combo Network Triple play board that has the Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of the TP.SK508.PB801 android board are very good and the Response rate is very efficient. TP.SK508.PB801 china smart network board can support up to 42″ LED Panels. TP.SK508.PB801 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK508.PB801
Main Chipset: Hi3751V350
Operating System: Android 9
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Multi-Core Mali-T450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512MB/1GB
ROM: 4/8 Gb
Resolution: up to 1920×1080
Screen Size supported: 32 to 42 Inch
Backlight: 58-87V 45W
Audio Output power: 2x8W
Mirror Mode: Yes
Logo Change: Yes
Tuner: R842
Input Voltage: 200-240V AC
Firmware Name: allupgrade_V3500N0N_4G_512M_75.bin
Panel Name: LVDS_VGA_1366x768_60Hz_2D
Firmware Type: USB Updateable Firmware
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. The following firmware file can be loaded in the same chipset boards version:
- TP-SK508S-PB801
- TP-SK508S-PB802
- TP-SK508S-PB818
- TP-SK508S-PB819
- TP-SK508S-PC821
you can rename the firmware file as per requirement. This firmware file can also be loaded on a 1G/8G board by renaming the firmware name but at your own risk. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.SK508.PB801 firmware file for free download:
- TP-SK508-PB801-1366×768-1G-8G-REF75-Skyline.part1
- TP-SK508-PB801-1366×768-1G-8G-REF75-Skyline.part2
- TP-SK508-PB801-1366×768-512M-4G-REF75-Mediastar.part1
- TP-SK508-PB801-1366×768-512M-4G-REF75-Mediastar.part2
- TP-SK508-PB801-1366×768-1G-8G-Ref73-Unionaire.part1
- TP-SK508-PB801-1366×768-1G-8G-Ref73-Unionaire.part2
- TP-SK508-PB801-1920×1080-1G-8G-Ref69-Unionaire.part1
- TP-SK508-PB801-1920×1080-1G-8G-Ref69-Unionaire.part2
pleas send me part 2
I upload again
thanks
Assalam o alaikum sir TP. SK508.PB801 Part2 koe music upload hy. Wrong software sir. Please upload again
ok
Assalamualaikum sir ji..to.sk508.pb.801 urinaire 1920×1080 pe Konsa remote lagega? Ak tasbi upload korega sir ji?
Hello sir, with love from India, I have this same board on my tv with Android 9 , but when in service menu there’s no option to change the boot logo.
Please advice.. thankyou in advance.
dear check import/export option
Request for the manufacturer service code
Try Menu 1147 or Source/Input 2580
the best
HELLO SIR. THANK YOU VERY MUCH. GOOD LUCK. THE BEST SITE. I LOVE THIS SITE.
Pls say how to load the file to tv
it will autoboot or keep pressing the power button
Can I load the same file on my 1G/8G board without renaming or what name should I rename to?
LOGRO HACER EL CAMBIO QUE NOMBRE LE COLOCO A MI NO ME CARGA
TP.SK506S.PB802 SOFTWARE PLEASE.
sir is board ka 1920×1080 resulation chai he please sir
I WANT TO 32″TV SMART TP.SK508.PB801 SOFTWARE
download from given links
TP.SK506S.PB802 hello i have this software can i download another one because i cant find one another please help me
not sure
hello sir i am from uae . i have problom with my tv . its showing under the screen LAUNCHER IS NOT ACTIVATED!. i reset and restart i try everything but its still showing there. can you help me to remove it please thanks
software issue. reload new software
how to import frimware
tv in logo
Hello sir,
Tv me power button nhi ho to board me kaha sort kre ki tv aging view se bahar aa jaye
Board TP SK518D PB802
pen back cover connect external keypad and do the needful
HELLO SIR,
SOFTWARE PLS TP.SK518D.PB802 1GB/8GB 32 INCH HD
NA
azhar bhai asslamualekum plz TP.SK508 PB801
ka 3840 × 2160 8gb usb software burning mode se ni nikal rha bahut meharbani hogi 4k panel he
panel ki resolution dobara verify karen. agar burn mode exit nai hota to software hoga
GOOD DAY ,,, WILL the TP.SK508.PB801 or the TP.SK506S,PB802 work FOR a TP.SK506.PB801 board,,, I am not seeing the TP.SK506.PB801 for download …
not tested
Hello Sr. My Tv is not working, not even power led.
visit the nearest technician
I need TP.SK508.PC821 1gb ram 4gb rom, 50 inch, resolution 1920*1080 firmware. Available?
NA
can some other firmware be used for the TP.SK508.PC821
if not, where can we search for it
PB801 is same
Assalamualakum sir.i have a board .that has burning problem so I want to boot it..but this firmware is not working.its a 55 inches TV board.any rename ?what will be the renam it’s? allupgrade_V3510N0N_8G_1G_69.bin?????
rename 69 to sos
TP. SK. 508.PB.801 FULL HD SOFTWARE PLEASE SEND A MY MAIL
Hi sir.. Im from Philippines i got the same firmware issue is stock logo…emmc is 8g…from what should i download
The download parts is up to 10parts should i download it all
yes
first your should try to hard reset
Great day sir.. I was happy that i see this page of yours i hope i can fix the problem of my tv.
The another question is after extracting all the parts.
Where can i get the bin file for mboot and emmc_boot
in the folder
Asalam o Alaikum,
need help due to blank screen.
I do following steps,
Input then 2580,
Factory Menu
Panel Setting
and then reset panel setting
I don’t know board model but I see Hi3751V350 same as mentioned above post.
Please give me solution…..
Waiting for your reply…. thanks
open back cover. check board number then search software and load
sir esko remote kon sa lagta ha .or kia es ma sumsung ka remote lag sakta ha
How about TP.SK506.PB801 is it available
NA
What can I use as an alternative
I want TP.SK508S.PC821 software please help
were you able to find a solution for your problem? i am also facing the same issue, need help please.
software for my TP.SK508.PB801
MY SMART CLOUD TV has logo stuck on screen
Please help
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Otherwise, load firmware:
https://www.kazmielecom.tech/how-to-load-firmware/
Please i need software for tp.sk506.pb801
NA
Sir software extract nahi ho raha hi please help
Tp.sk508.pb801
1366*768
download all parts then extract any one of them
HELLO SIR,
upside down logo hang up after stoped in 71% while upgrading software for union aire 32″ 1366*768
Please help…
TPSK508PB801 Resolution: 1440 x 900 (WXGA+ my chahi ya
NA
Please re-upload the files: TP.SK508.PB801-FHD-1G-8G-REF69-UNIONAIRE-USB.part4, TP.SK508.PB801-FHD-1G-8G-REF69-UNIONAIRE-USB.part5, TP.SK508.PB801- FHD-1G-8G-REF69-UNIONAIRE-USB.part6. The download does not work from the file hosting file-upload*com
Noted
skyline wale ka remote ka photo milega kya
google kar len
help me with TP.SK506.PB801
Not Available
ou en peut trouver le TP.SK506.PB801
Not available
can i exit burning mode in my 32 inch hari tv using this software download model board TP.SK508.PB801
https://forum.kazmielecom.com/showthread.php?tid=1916&highlight=burn+mode
Please provide board no. TP.SK508.PB801(RESOLUTION 1920×1080) software having Android 11 or above version.
My current software currupt and tv display rotate just opposite.
I want to install latest android version software, if available.
update not available
Dear sir,
I have tried many times but i have not success full to boot my LED TP.SK508.PB801 . I have rename file many times and also tried many softwares.
visit to the technician
sir software OK but remot kon as support karaga
confirm nai. koi try kar len aur reply me confirm kar dena plz
i was try to update my tp.sk508.pb801 full hd into non-hd but software is not install in my motherbord
Can you explain the way to rename the downloaded .bin file, thanks
https://www.kazmielecom.tech/how-to-load-firmware/
Hi, mi smartv not load file .bin What name should I put?
https://www.kazmielecom.tech/how-to-load-firmware/
I’ve tried all the names, but I always get warning invalid data. Mi tv is daewoo jsa40aidm51af with board TP.SK508.PB801
rename REF number (69, 75) to sos.
https://www.kazmielecom.tech/how-to-load-firmware/
THANK
Hello sir, I am from the Arab countries. I follow you on YouTube. I am sir. ineed Software via flash for this board “9216M6C1” under the name My General or any other name. Thank you.
Not available
SIR YEH SOFTWEAR CHAHE TP.SK508.PB801
download
good man
