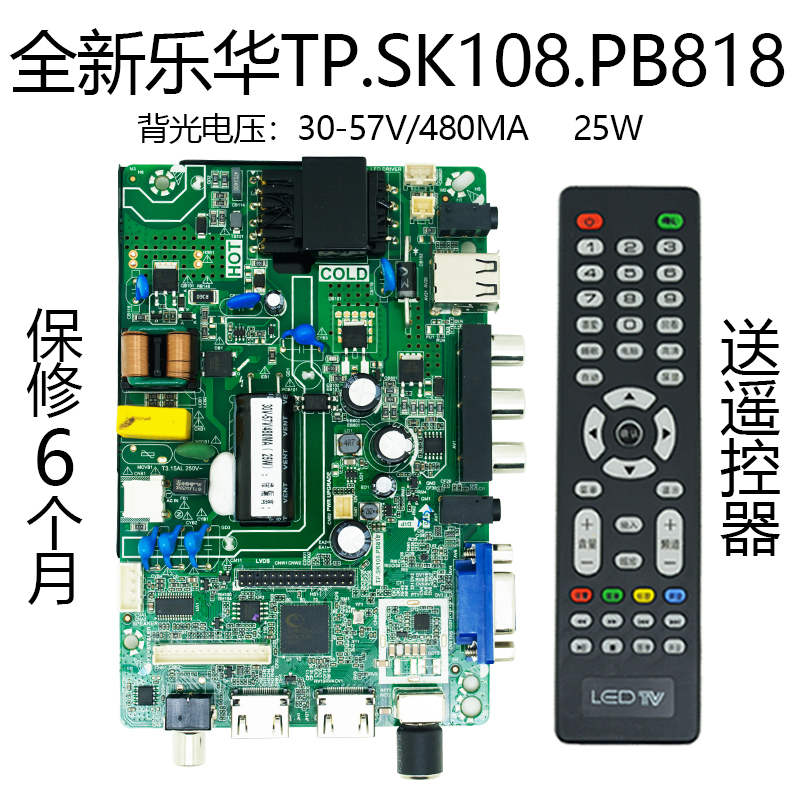

TP.SK108.PB818 Combo TV Board
TP.SK108.PB818 is Three-In-One FHD LCD/LED TV Motherboard that is designed for especially 32-inch screens. TP_SK108_PB818 is a combo board which is three modules builtin in a single piece of PCB like power card, Backlight driver controller, and ATV Module. TP-SK108-PB818 is a universal Board that is compatible with many panel screens. TP SK108 PB818 is a Universal Combination of Main Boards that can be used for a variety of different television models. TP.SK108.PB818 firmware files are given below for the technician’s support.
General Basic Info:
Brand/Mark: China Universal
Model: TP.SK108.PB818
Main Chip: TSUMV53
Resolution: HD1080(1920*1080)
TV System: PAL\SECAM\NTSC
Product: LED TV
Input Voltage: 220V AC
Backlight Current: 350MA/480MA
MAX Backlight Watt: 25W
Backlight voltage: 30-57V
Size : 146*128mm
Resolution: 27-32 ” PANEL
Service Menu:
Menu 1147/Menu 2008
USB Upgrade Method:
- Plug the U disk into the USB port.
- Insert the AC cord and the machine go to standby status, then it will begin to update the SW, it will take you about 30 seconds to complete the whole update.
- There is one feature when it updates, like below:
The led will twinkle, it will be red, green, red, green slowly, then change quickly, then the led change to red, TV power on itself.
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.SK108.PB818 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.SK108.PB818_1366x768_General_USB | Download |
| 2 | TP.SK108.PB818_1366x768_Backup_Dump | Download |
| 3 | TP.SK108.PB818_1920x1080_General_USB | Download |
