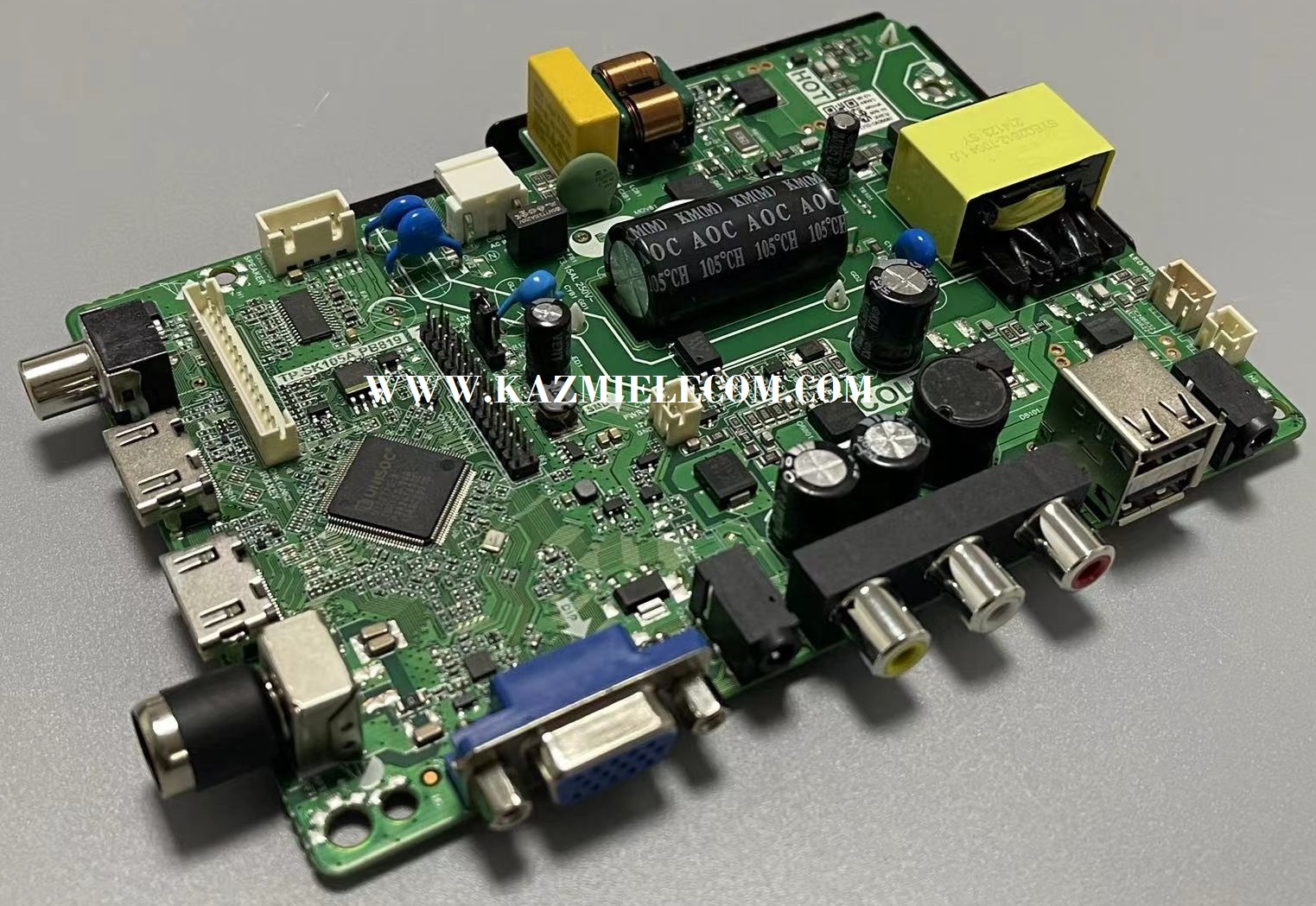

TP.SK105A.PB819 LED TV Board
TP.SK105A.PB819 is a Three-In-One FHD LCD/LED TV Motherboard that is designed for especially 24″ to 30-inch screens. TP_SK105A_PB819 is a combo board that has three modules integrated into a single piece of PCB like a power card, a Backlight driver controller, and an ATV Module. TP-SK105A-PB819 is a universal Board that is compatible with many panel screens.
TP SK105A PB819 is a Universal Combination of Main Boards that can be used for a variety of different television models. TP.SK105A.PB819 firmware files are given below for the technician’s support.
General Info and Features:
Brand/Mark: China Universal
Model: TP.SK105A.PB819
Main Chip: UNISOC UTS6710
Resolution: FHD (1920*1080)
TV System: PAL\SECAM\NTSC
Product: LED TV
Input Voltage: 100-240V AC
Backlight Current: 480ma
MAX Backlight Watt: 25W
Backlight voltage: 30v-87v
Multi-Language:
Default language: English

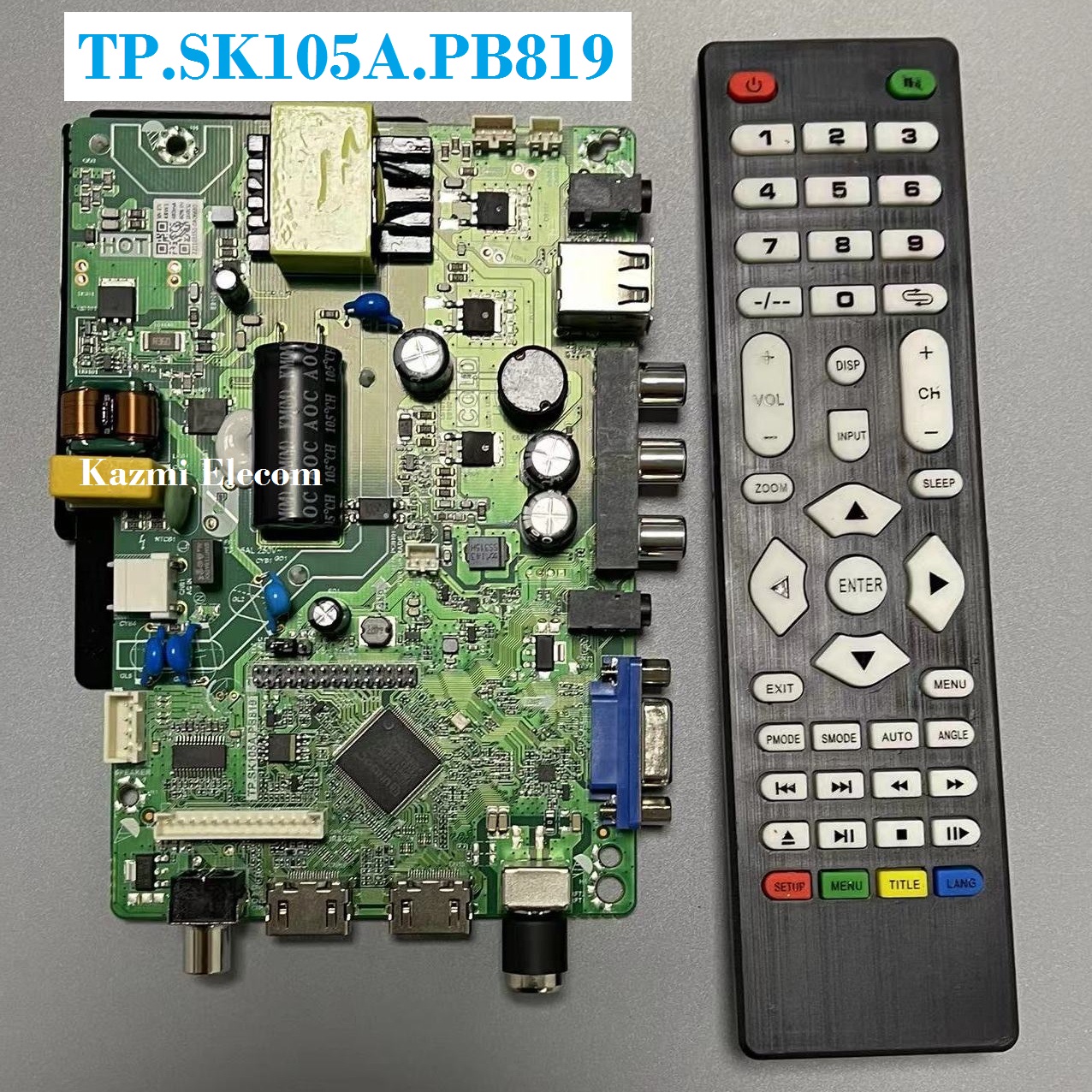

Remote control: M90
Firmware Type: USB Boot
Firmware Name: UTS6710_75.bin
Service Menu:
Menu 1147
USB Upgrade Method:
- Plug the U disk into the USB port.
- Insert the AC cord and the machine go to standby status, then it will begin to update the SW, it will take you about 30 seconds to complete the whole update.
- There is one feature when it updates, like below:
- The led will twinkle, it will be red, green, red, and green slowly, then change quickly, then the led change to red, TV power on itself.
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the USB/programmer. For More Details about the download, process watch the video Click Here
TP.SK105A.PB819 firmware for free download:
