TP.SK105A.PB815 Software Free Download

TP.SK105A.PB815 LED TV Board

TP.SK105A.PB815 is a simple ATV Driver Motherboard intended for LCD/LED TVs. It is intended to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.

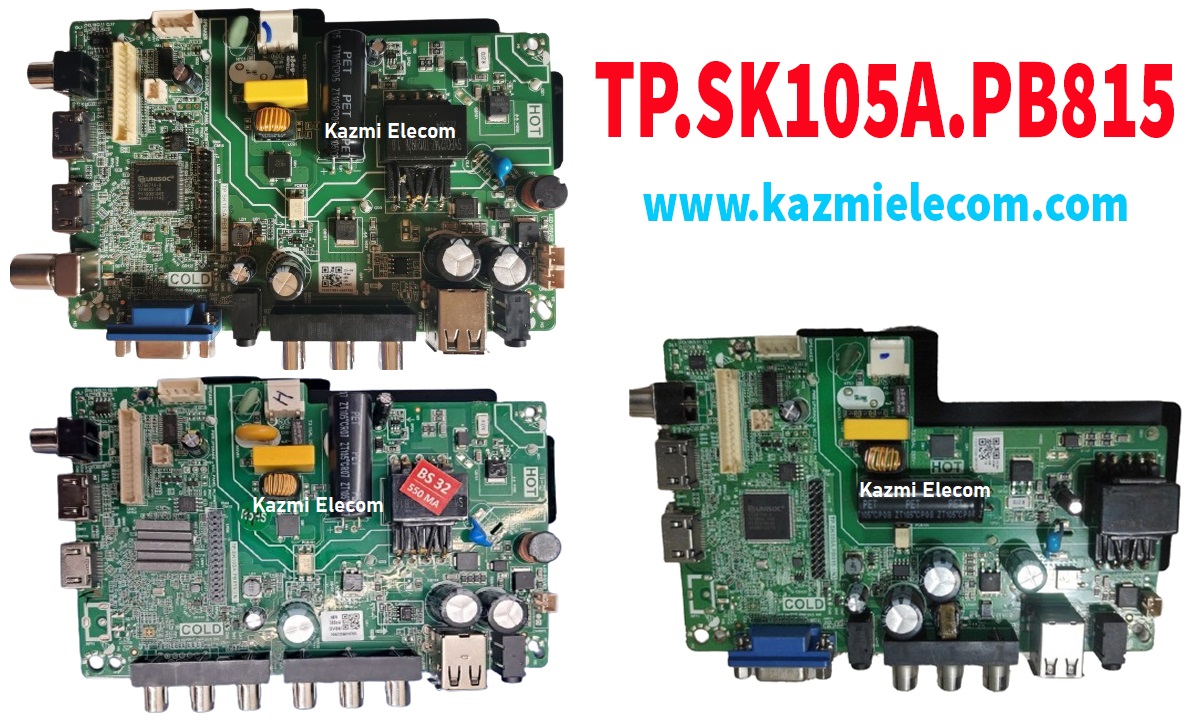

Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. Please note that the Tuner, RCA, and VGA port are optional in some regions as seen in the picture given below. TP.SK105A.PB815 firmware files are given below for the technician’s support.

Tp.sk105A.pb815

General Specifications:

Brand/Mark: Universal Board

Model: TP-SK105A-PB815 (N)

Main Chip: UTS6710

Product: LED TV

LED Backlight: 30Ⅴ-84V 550mA 25W

Flash IC: 4Mb

Sound Chip:

Tuner IC:

Screen supported: 32-39 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Type: USB Bootable & Backup Dump

Firmware Name: UTS6710_sos.bin

Service Code:

Source/Input

Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

TP.SK105A.PB815 firmware for free download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
