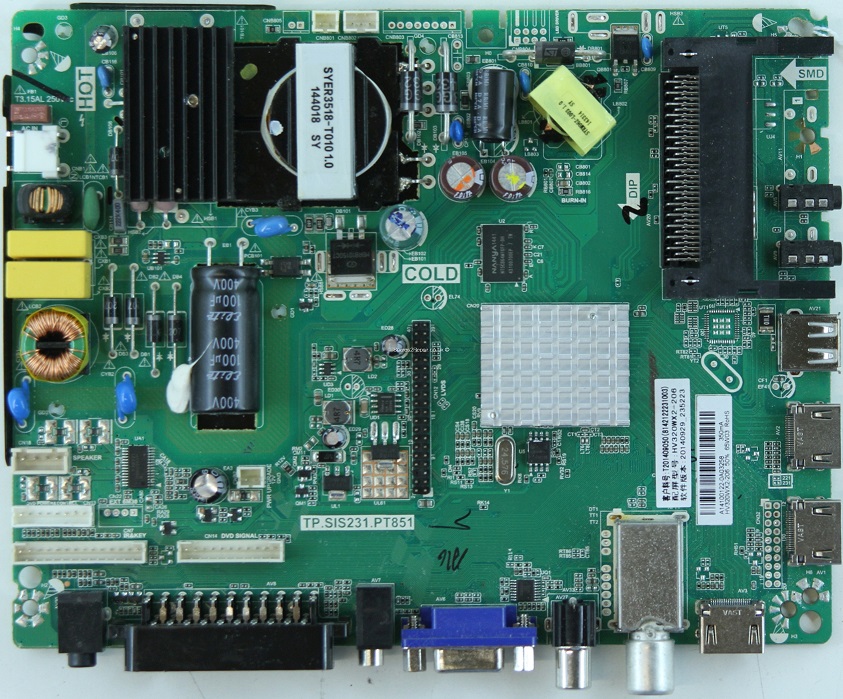

TP.SIS231.PT851 Universal Driver Board
TP.SIS231.PT851 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-50 inches LED panels, with maximum resolution up to 1920*1080. TP_SIS231_PT851 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board builtin into it. TP-SIS231-PT851 has multiple input interface ports like USB, HDMI, AV, Scart port, and VGA port for computer connectivity. TP SIS231 PT851 for many brand LED TVs like Goldvision, Rolsen, Vivax, JVC, etc. Its USB interface can be used for loading software as well as for playing multimedia files. TP.SIS231.PT851 supports analog TV signals. TP.SIS231.PT851 firmware files are given below for the technician’s support.
General Specifications:
Model: TP.SIS231.PT851
Main Chipset: SIS231C1CI
Resolution Supported: 1920×1080
Flash Memory: 25Q64
Television System: PAL (BG, DK), SECAM (BG, DK, LL)
Tuner: DVB-T, DVB-C
Audio Output Power: 2X6 W (8Ω)
Backlight Current: 350mA
Backlight Power: 65 W
Power Input: 100 to 240V
Power Consumption: 75W
Service Code: Menu 1147, Balance (value is “0”) +1969
Flash Memory: 25Q64 (8Mb)
Firmware Name: SISEU23X8M.bin
Firmware Type: USB Bootable Firmware and Flash Backup Dump
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here is below TP.SIS231.PT851 Firmware files for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.SIS231.PT851_1366x768_ADLER_Dump | Download |
| 2 | TP.SIS231.PT851_Aconatic AN-LT3215_Dump | Download |
| 3 | TP.SIS231.PT851_BERG BLT-32D303_Dump | Download |
| 4 | TP.SIS231.PT851_Combo TV TDL28F4AU001_Dump | Download |
| 5 | TP.SIS231.PT851_Continental Jcl-CK4291E_Dump | Download |
| 6 | TP.SIS231.PT851_Digiclass 32 F-5500_Dump | Download |
| 7 | TP.SIS231.PT851_Erisson 40LEP92_Firmware | Download |
| 8 | TP.SIS231.PT851_FOX 32DLE250_Dump | Download |
| 9 | TP.SIS231.PT851_Goldvision GVLED 29D1 TNT_Dump | Download |
| 10 | TP.SIS231.PT851_Goldvision GVLED 42ESR TNT_Dump | Download |
| 11 | TP.SIS231.PT851_Grandin LD40CH105F_Dump | Download |
| 12 | TP.SIS231.PT851_JVC LT-32N310C_Dump | Download |
| 13 | TP.SIS231.PT851_JVC LT-40N540_Dump | Download |
| 14 | TP.SIS231.PT851_MAXWELL ELED42MXEL7_Dump | Download |
| 15 | TP.SIS231.PT851_ORION OLT-28202_Dump | Download |
| 16 | TP.SIS231.PT851_ORION OLT-39212_Dump | Download |
| 17 | TP.SIS231.PT851_ORION T28 D-LED_Dump | Download |
| 18 | TP.SIS231.PT851_ROLSEN RL-29D1307T2C_Dump | Download |
| 19 | TP.SIS231.PT851_ROLSEN RL-39D1307T2C_Dump | Download |
| 20 | TP.SIS231.PT851_ROLSEN RL-42D1307FT2C_Dump | Download |
| 21 | TP.SIS231.PT851_RUBIN RB-40D5FT2C_Dump | Download |
| 22 | TP.SIS231.PT851_SABA LED40TD1050E_Dump | Download |
| 23 | TP.SIS231.PT851_SABA SBC32FH_Dump | Download |
| 24 | TP.SIS231.PT851_STARLIGHT SL42E8200_Dump | Download |
| 25 | TP.SIS231.PT851_Starlight_REF72_Firmware | Download |
| 26 | TP.SIS231.PT851_TCL L32B3303_Dump | Download |
| 27 | TP.SIS231.PT851_TCL_REF50_Firmware | Download |
| 28 | TP.SIS231.PT851_VENGA VG32DTV3_Dump | Download |
| 29 | TP.SIS231.PT851_VIVAX 40LE72_Dump | Download |
| 30 | TP.SIS231.PT851_VIVAX 40LE72_Firmware | Download |
| 31 | TP.SIS231.PT851_VIVAX TV-32LE73_Dump | Download |
| 32 | TP.SIS231.PT851_VR LT-32T01V_Dump | Download |
| 33 | TP.SIS231.PT851_Zanussi ZN32Z6000_Dump | Download |
| 34 | TP.SIS231PT851_REF43_Firmware | Download |
| 35 | TP.SIS231PT851_REF79_Firmware | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
