TP.SIS231.PT85 Software Free Download

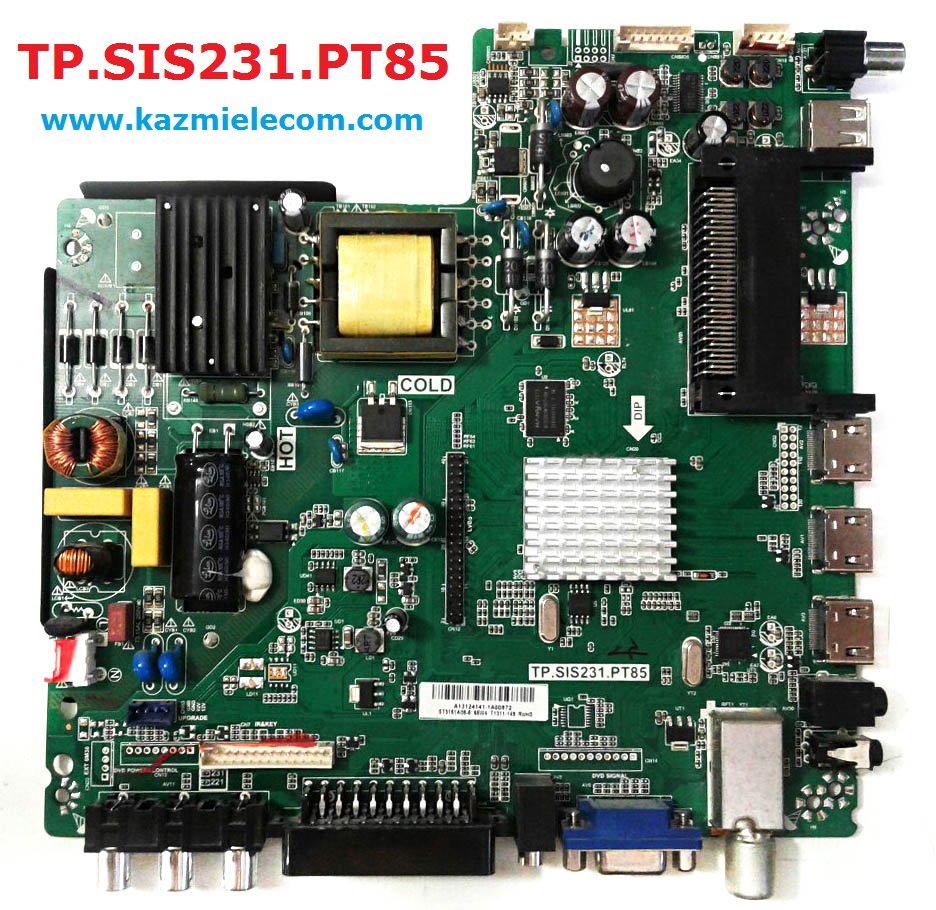

TP.SIS231.PT85 LED TV Board

TP.SIS231.PT85 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-50 inches of LED panels, with a maximum resolution of up to 1920*1080. TP_SIS231_PT85 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board builtin in it. TP-SIS231-PT85 has multiple input interface ports like USB, HDMI, AV, Scart port, and VGA port for computer connectivity.

Download Here

TP SIS231 PT85 for many brand LED TVs like Supra, Haier, Crown, Bush, etc. Its USB interface can be used for loading software as well as for playing multimedia files. TP.SIS231.PT85 support for analog TV signals. TP.SIS231.PT85 firmware files are given below for the technician’s support.

General Specifications:

Model: TP.SIS231.PT85

Main Chipset: SIS231

Resolution Supported: 1920×1080

Flash Memory: 25Q64

Television System: PAL (BG, DK), SECAM (BG, DK, LL)

Tuner: DVB-T, DVB-C

Audio Output Power: 2X6 W (8Ω)

Backlight:

Backlight Power: 75 W

Power Input: 100 to 240V

Power Consumption: 75W

Service Code: Menu 1147, Balance (value is “0”) +1969

Firmware Name: SISEU23X8M.bin

Firmware Type: USB Bootable Firmware and Flash Backup Dump

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

TP.SIS231.PT85 Firmware files for Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	TP.SIS231.PT85_1366x768_ACONATIC_DUMP	Download
2	TP.SIS231.PT85_1366x768_ASAHI_DUMP	Download
3	TP.SIS231.PT85_1366x768_DAEWOO_DUMP	Download
4	TP.SIS231.PT85_1366x768_DAIKO_DUMP	Download
5	TP.SIS231.PT85_1366x768_DYON_DUMP	Download
6	TP.SIS231.PT85_1366x768_FOX_DUMP	Download
7	TP.SIS231.PT85_1366x768_HISENSE_DUMP	Download
8	TP.SIS231.PT85_1366x768_MAXWELL_DUMP	Download
9	TP.SIS231.PT85_1366x768_TD SYSTEMS_DUMP	Download
10	TP.SIS231.PT85_1366x768_TELEFUNKEN_USB	Download
11	TP.SIS231.PT85_1366x768_THOME_DUMP	Download
12	TP.SIS231.PT85_1366x768_VISION_DUMP	Download
13	TP.SIS231.PT85_1920x1080_DNS_DUMP	Download
14	TP.SIS231.PT85_1920x1080_GLOBEVISION_DUMP	Download
15	TP.SIS231.PT85_1920x1080_HISENSE_USB	Download
16	TP.SIS231.PT85_1920x1080_JVC_DUMP	Download
17	TP.SIS231.PT85_1920x1080_SUPRA_DUMP	Download
