TP.SIS231.PT818 Software Free Download

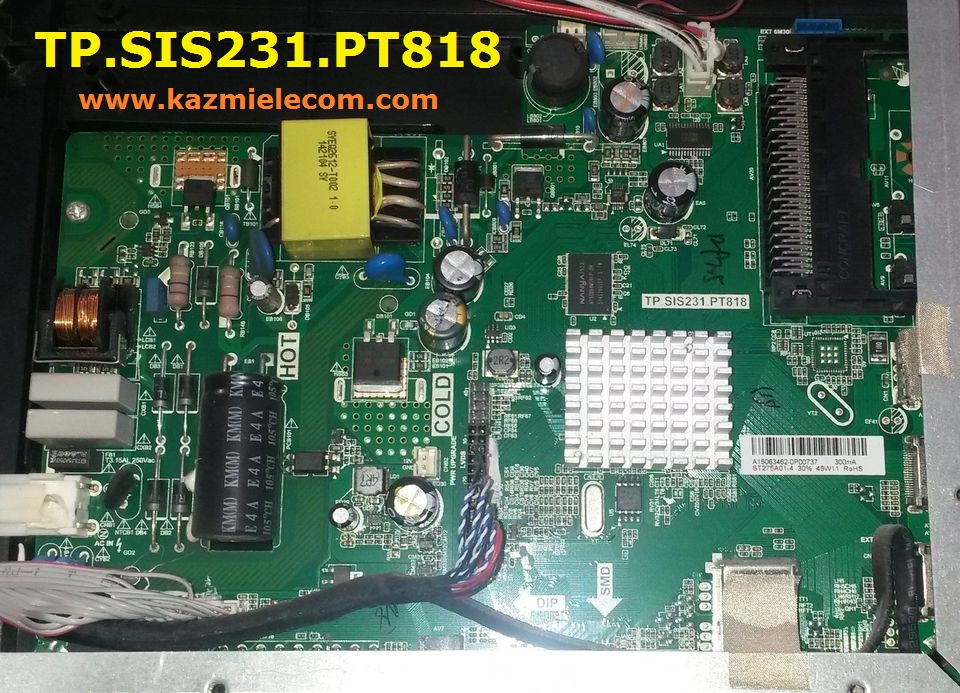

TP.SIS231.PT818 LED TV Board

TP.SIS231.PT818 is an LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 27-32 inches of LED panels, with a maximum resolution of up to 1920*1080. TP_SIS231_PT85 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board builtin in it. TP-SIS231-PT818 has multiple input interface ports like USB, HDMI, AV, Scart port, and VGA port for computer connectivity.

Download Here

TP SIS231 PT818 for many brands of LED TVs like Fuego, Saba, Crown, Bush, etc. Its USB interface can be used for loading software as well as for playing multimedia files. TP.SIS231.PT85 support for analog TV signals. TP.SIS231.PT818 firmware files are given below for the technician’s support.

General Specifications:

Model: TP.SIS231.PT818

Main Chipset: SIS231

Resolution Supported: 1920×1080

Flash Memory: 25Q64

Television System: PAL (BG, DK), SECAM (BG, DK, LL)

Tuner: DVB-T, DVB-C

Audio Output Power: 2X6 W (8Ω)

Backlight: 300mA

Backlight Power: 45 W

Power Input: 100 to 240V

Power Consumption: 45W

Service Code: Menu 1147, Balance (value is “0”) +1969

Firmware Name: SISEU23X8M.bin

Firmware Type: USB Bootable Firmware and Flash Backup Dump

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

TP.SIS231.PT818 Firmware files for Free Download:
