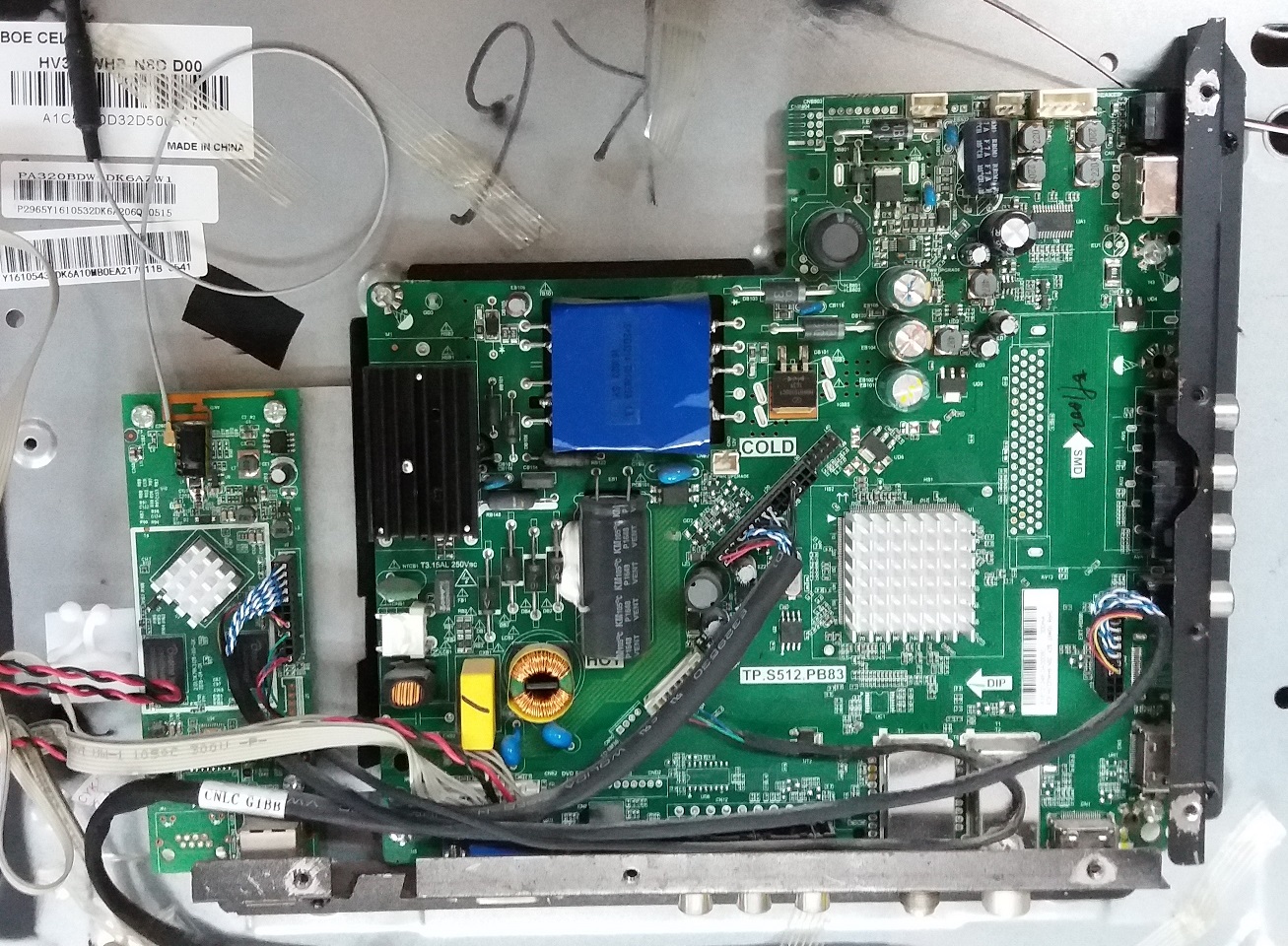

TP.S512.PB83 Combo LED TV Board
TP.S512.PB83 is a simple ATV driver motherboard designed for LCD/LED TV. This board is suitable for the Asia Pacific and Middle East markets. This is a combo board. This motherboard is built-in with a main power module, LED backlight inverter circuit module, and ATV card. This board has all the features as per the latest requirements such as HDMI input, USB interface, PC input, component input, TV, Scart, etc. Firmware file for TP.S512.PB83 is provided below for technical support. TP.S512.PB83 is a simple ATV driver motherboard designed for LCD/LED TV. It is designed to support a full HD LCD/LED panel screen.
This board is suitable for the Asia Pacific and Middle East markets. This is a 3-in-1 combo board. This motherboard is built-in with a main power module, LED backlight inverter circuit module, and ATV card. The card has all the features and connectivity options as per the latest user requirements such as HDMI input, USB interface, PC input, component input, TV, Scart, etc. The USB interface can be used to update software/firmware or play multimedia files. Headphone output is also supported. The firmware file TP.S512.PB83 is listed below for technical support.
General Specifications:
Brand/Mark: China Universal
Model: TP.S512.PB83
Resolution: 1920×1080
Backlight: 300mA to 500mA 65 to 75 w
Aspect Ratio: 16:9
Sound Output: 8 W
USB: 2
HDMI: 2
Composite Video Input: 1
Component Video Input: 1
Headphone Out: 1
PC Audio connector: 1
RF In: 1
Supports Hard Disks: Up to 1 TB
Power Supply: 100-240V 50/60Hz
Power Consumption: 60 Watts
Power Consumption: 0.5 Watts Standby mode
Note: The following given firmware is dump backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
TP.S512.PB83 firmware files free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.S512.PB83_AKAI LEA-39V51P_Backup | Download |
| 2 | TP.S512.PB83_DEXP F40B7000C_Backup | Download |
| 3 | TP.S512.PB83_DREAMAX DM32DK20S_Backup | Download |
| 4 | TP.S512.PB83_DREAMAX DM32DK100_Backup | Download |
| 5 | TP.S512.PB83_DREAMAX DM32DN100_Backup | Download |
| 6 | TP.S512.PB83_DREAMAX DM49DN100_Backup | Download |
| 7 | TP.S512.PB83_ECHOLINK LED32E6000_Backup | Download |
| 8 | TP.S512.PB83_FITCO 32DN3S2_Backup | Download |
| 9 | TP.S512.PB83_FITCO FLED32DN4_Backup | Download |
| 10 | TP.S512.PB83_Gold Ray GR32LED002_Backup | Download |
| 11 | TP.S512.PB83_Gold Ray GR42LED004_Backup | Download |
| 12 | TP.S512.PB83_Gold Ray GR43LED001_Backup | Download |
| 13 | TP.S512.PB83_Goldvision GV32ES3R TNT_Backup | Download |
| 14 | TP.S512.PB83_Goldvision GVLED42ESR TNT_Backup | Download |
| 15 | TP.S512.PB83_HAIER LE28F6000T_Backup | Download |
| 16 | TP.S512.PB83_HAIER LE32B7000T_Backup | Download |
| 17 | TP.S512.PB83_HAIER LE32F6000T_Backup | Download |
| 18 | TP.S512.PB83_HAIER LE42B9000TF_Backup | Download |
| 19 | TP.S512.PB83_HISENSE LTDN40D50TS_Backup | Download |
| 20 | TP.S512.PB83_Shiwaki STV-32LED13_Backup | Download |
| 21 | TP.S512.PB83_SIERA 32HDN5S2_Backup | Download |
| 22 | TP.S512.PB83_Supra_STV-40LED17_Backup | Download |
| 23 | TP.S512.PB83_Supra_STV-LC32T440WL_Backup | Download |
| 24 | TP.S512.PB83_Supra_STV-LC40T900FL_Backup | Download |
| 25 | TP.S512.PB83_Thomson_T40D17SF-01B_Backup | Download |
| 26 | TP.S512.PB83_Uniontech 32LED32DN6_Backup | Download |
| 27 | TP.S512.PB83_VISIO 42L91S_Backup | Download |
| 28 | TP.S512.PB83_VISION VS-32LE4800_Backup | Download |
| 29 | TP.S512.PB83_Vivax_LED TV-32LE72T2_Backup | Download |
| 30 | TP.S512.PB83_HKC L32C10_Backup | Download |
| 31 | TP.S512.PB83_1366x768_Samsung_Backup | Download |
| 32 | TP.S512.PB83_1366x768_USB_Firmware | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
merci a votre aide
Asalmuailkom
Sr Mayr pas tp.s512.pb83 borde hay Jski taswer olti hay
service menu me mirror ki option check karen otherwise software change karen
Asallamualikok
Shokirya Sar mugy software nahi mlrahay
Hello Sir, please how can I unpack/pack TP. S512.PB83 to change the customer config.
If it is possible, what application can I use?
no experience with non-smart firmware
BHAI MERAY PASS LCD HAI THREE IN ONE YE WALA BOARD LAGA HUWHA HAI OR MERY GHR ME AAG LAG GI TI OR REMOTE JAL GEYA TAA KOI HELP KIR SAKTA HAI ES KO REMOTE KN SA LAGEY GA REMOTE KI PIX HAI MERY PASS LAKEEN REMOTE WALOO KO SAMJ NI ATI Q KYA CHINA KI 55 INCH HAI LCD MERY PASS PLEASE MUJEA REMOTE KA CODE BATA DY TAKYA ME LEA SAKOO REMOTE ME NAY BHUT DHUDHA HAI UNVERSAL REMOTE TO LAG JATA HAI MUGER PURAY FUNGTION KAAM NI KIR TEY AGER KISS KO SAMJ HAI TOO MERA NUMBER PAY WHATAPPS LIR DY DUWHA ME YAAD RAKOON GA PLEASE REQUEST HAI 03335190429
universal remote ap sahi nai laga rahe. yeh remote kai bar work kare ga aur kisi jaga proper hoga. ap dobara try karen. wesy pic dekh k remote milna mushkil hy
Tp.s512.pb83 1920×1080 is not here can you upload it
42, 43, 49 inch all models are Full HD 1920×1080
