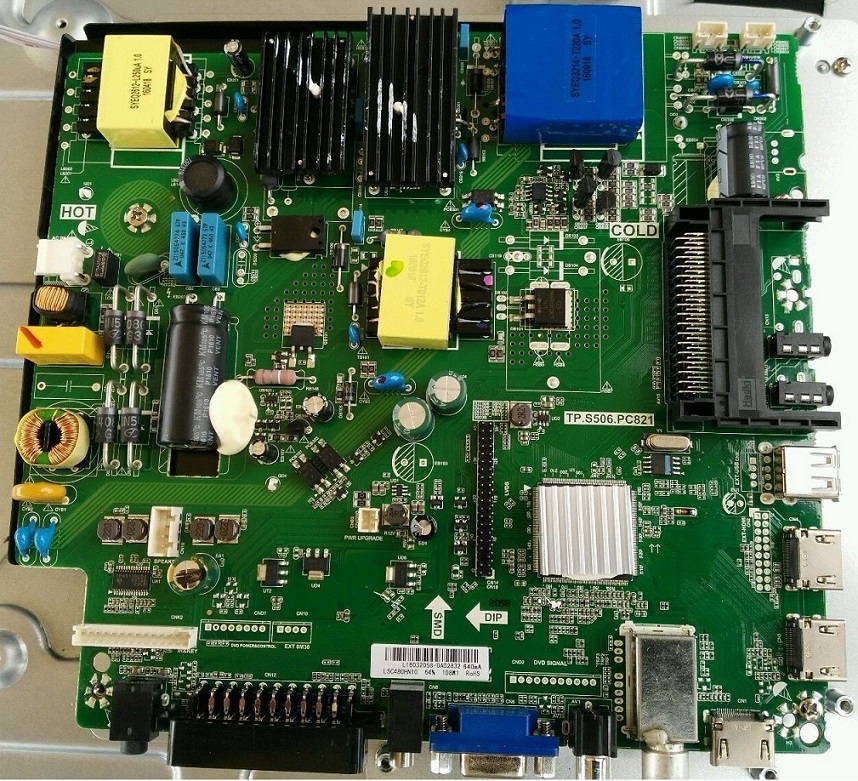

TP.S506.PC821 LCD/LED Driver Board
TP.S506.PC821 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 42-inch to 60-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. TP_S506_PC821 has HDMI port support of 1.4 and HDCP support of 1.1. TP-S506-PC821 is compatible with Non-HD and FHD LCD/LED panel screens. TP.S506.PC821 is widescreen-supported and also has a multi-language option. TP.S506.PC821 has its special feature of Mini AV, Scart, and VGA connectivity .TP.S506.PC821 software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: TP.S506.PC821
Main Chipset:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)
Backlight: 640 mA
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Bin Name: SIS506_xx.bin
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
TP.S506.PC821 Firmware Collection Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.S506.PC821_1920×1080_AUO T500HVN08.2_Dump | Download |
| 2 | TP.S506.PC821_Akai AKTV551_Dump | Download |
| 3 | TP.S506.PC821_Akai LT-4801_Dump | Download |
| 4 | TP.S506.PC821_Condor L49A4600_Dump | Download |
| 5 | TP.S506.PC821_Condor L50G4500_Dump | Download |
| 6 | TP.S506.PC821_Condor LED43C6500_Dump | Download |
| 7 | TP.S506.PC821_Enie EDLE43M08A15C_Dump | Download |
| 8 | TP.S506.PC821_KRÖHLER TKD-55-DL_Dump | Download |
| 9 | TP.S506.PC821_MAXWEL MX SD52_Dump | Download |
| 10 | TP.S506.PC821_Starlight LED55260ST_Dump | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
