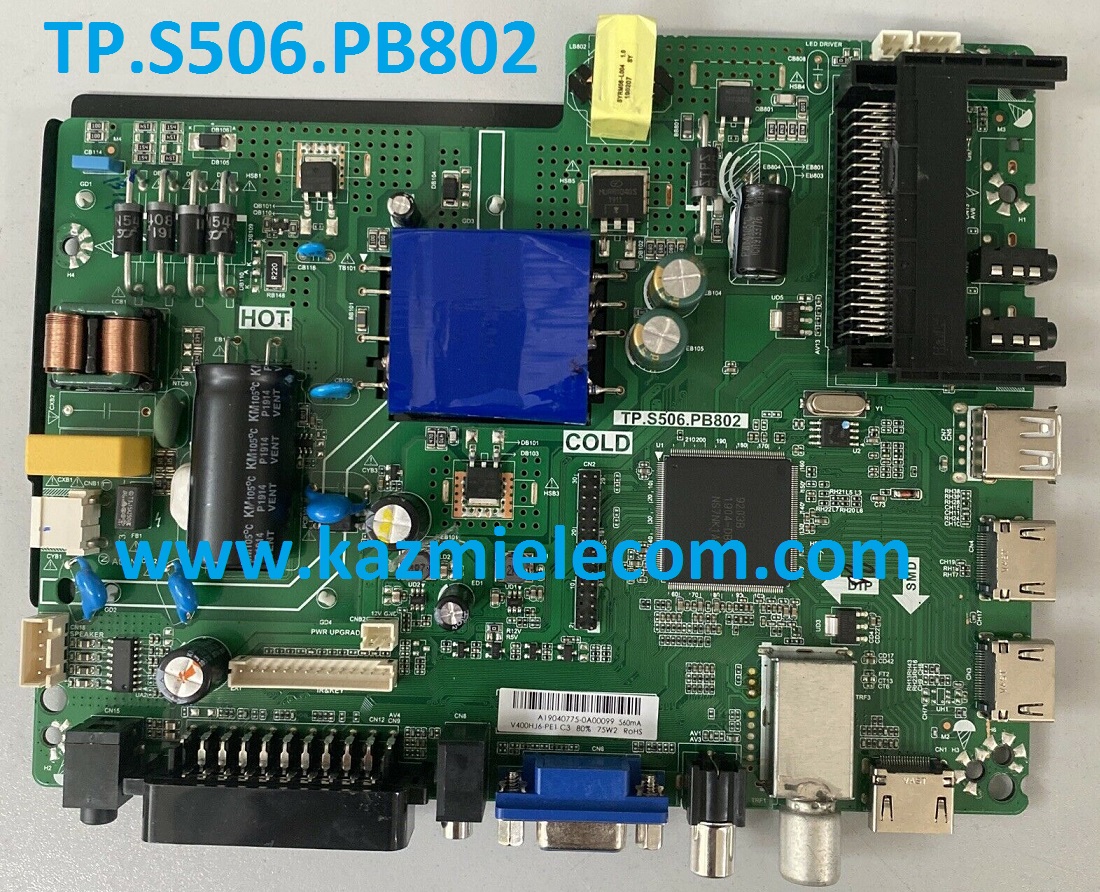

TP.S506.PB802 LED TV Board
TP.S506.PB802 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board. The main power module, LED Backlight Inverter Circuit module, and ATV Card are built into a single printed circuit board (PCB).
This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.TP.S506.PB802 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: TP-S506-PB802
Main Chip:
Product: LED TV
LED Backlight: mA
Flash IC: Mb
Sound Chip:
Tuner IC:
Screen supported: inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
TP.S506.PB802 firmware for free download:
