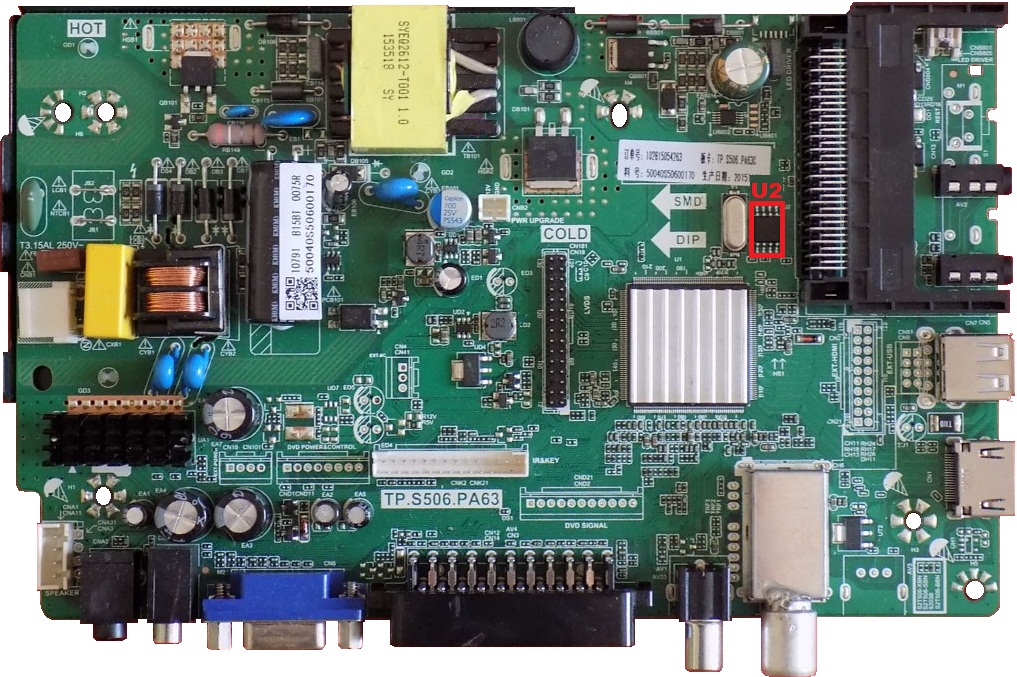

TP.S506.PA63 LED TV Board

TP.S506.PA63 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 32-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrade as well. TP_S506_PA63 has the HDMI port support 1.4 and its HDCP support 1.1. TP-S506-PA63 is compatible with Non-HD and FHD LCD/LED panel screens. TP S506 PA63 is widescreen supported and also has a multi-language option. TP.S506.PA63 has its special feature of  Mini AV, Scart, and VGA connectivity .TP.S506.PA63 software collection is given below for free download.

General Specifications:

Board Make: China

Board Model: TP.S506.PA63

Main Chipset: S21506

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V / +3.3V DC (Jumper Setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Bin Name: SIS506_xx.bin

Firmware Type: Backup Dump

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download TP.S506.PA63 Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

TP.S506.PA63 Firmware Collection Free Download Here :



S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	TP.S506.PA63_1366X768_Echosonic_Dump	Download
2	TP.S506.PA63_1366X768_Fitco_Dump	Download
3	TP.S506.PA63_1366X768_Goldray_Dump	Download
4	TP.S506.PA63_1366X768_Krohler_Dump	Download
5	TP.S506.PA63_1366X768_Sencor_Dump	Download
6	TP.S506.PA63_1366X768_Tokai_Dump	Download
7	TP.S506.PA63_1366X768_Utok_Dump	Download
8	TP.S506.PA63_1366X768_Vortex_Dump	Download
9	TP.S506.PA63_1920X1080_NEI_Dump	Download
