TP.RD8503.PB824

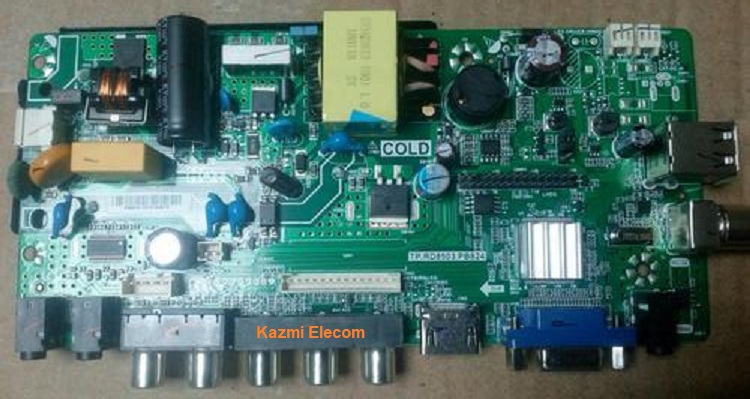

ATV Driver Motherboard TP.RD8503.PB824 is a basic board designed for LCD/LED televisions. Support for Full HD LCD/LED panel screens is its intended use. The Middle East and Asia Pacific regions are good fits for this board. The Combo Board is a three-in-one device. This motherboard has an integrated ATV card, LED backlight inverter circuit module, and main power module. According to the most recent user needs, this board includes all the functionality and connectivity ports needed, including HDMI, USB, PC, component, TV, and optional scart connectors.
Multimedia files can be played and software and firmware updates can be performed via its USB interface. Additionally, earphone output is supported. The LCD LED TV controller board TP.RD8503.PB824 has a maximum resolution of 1920×1080 and supports Full HD. It is compatible with FHD and 24–30-inch HD panel screens. Mstar is the manufacturer of the primary processor, which has excellent graphics. The firmware files for TP.RD8503.PB824 is provided below for the benefit of the technician.
General Specifications:
Brand/Mark: CXEL/China Universal
Model: TP.RD8503.PB824
Main Chipset: RDA8503
Product: LED TV Driver Board
Resolution: Up to 1920×1080
Panel: 24″ to 30″
Panel voltage: 5V,12V
Input Supply: 220V AC
Backlight: 45-65V 35w
Speaker Output: 2x5W
Service Code: Menu+1147
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash
For video tutorials, visit “Kazmi Elecom” on my YouTube channel.
TP.RD8503.PB824 firmware for free download:
