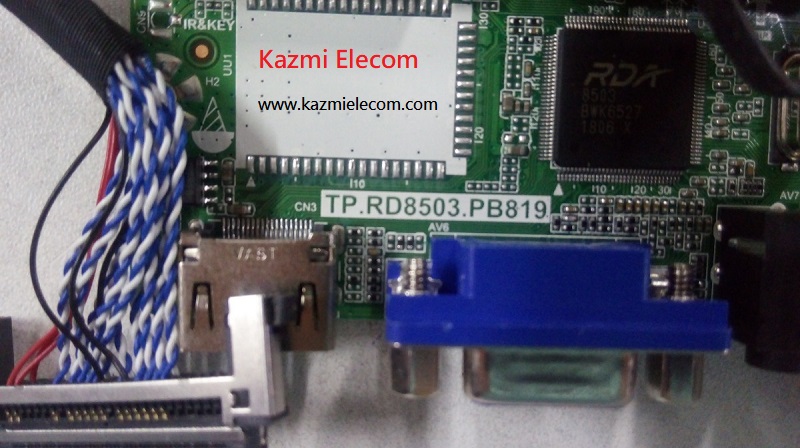

TP.RD8503.PB819 Triple TV Board
TP.RD8503.PB819 is a Three-In-One LCD/LED TV Motherboard that is designed for especially 32-inch screens. TP_RD8503_PB819 is a combo board that is three modules built in into a single piece of PCB like a power card, Backlight driver controller, and ATV Module. TP-RD8503-PB819 is a universal Board that is compatible with many panel screens. TP RD8503 PB819 is a Universal Combination Main Boards that can be used for a variety of different television models, including JVC, TELEFUNKEN, ULTRASONIC, AIM, TEK, HISENSE, and many others.
General Basic Info:
Brand/Mark: China Universal
Model: TP.RD8503.PB819
Main Chip: RDA8503
TV System: PAL\SECAM\NTSC
Product: LED TV
Input Voltage: 220V AC
Backlight Current: 350MA/480MA
MAX Backlight Watt: 25W
Backlight voltage: 45-63V
Size : 146*128mm
Resolution: 30-39 ” PANEL
Service Menu:
Menu 1147/Menu 2008
USB Upgrade Method:
- Plug the U disk into the USB port.
- Insert the AC cord and the machine go to standby status, then it will begin to update the SW, it will take you about 30 seconds to complete the whole update.
- There is one feature when it updates, like below:
The led will twinkle, it will be red, green, red, green slowly, then change quickly, then the led change to red, TV power on itself.
Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download firmware file:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here are below some TP.RD8503.PB819 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.RD8503.PB819_General_800x600_USB | Download |
| 2 | TP.RD8503.PB819_General_1024x768_USB | Download |
| 3 | TP.RD8503.PB819_General_1280x1024_USB | Download |
| 4 | TP.RD8503.PB819_General_1366x768_USB | Download |
| 5 | TP.RD8503.PB819_General_1440x900_USB | Download |
| 6 | TP.RD8503.PB819_General_1600x900_USB | Download |
| 7 | TP.RD8503.PB819_General_1680x1050_USB | Download |
| 8 | TP.RD8503.PB819_General_1920x1080_USB | Download |
| 9 | TP.RD8503.PB819_Guangzhou Changhong HA320 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
