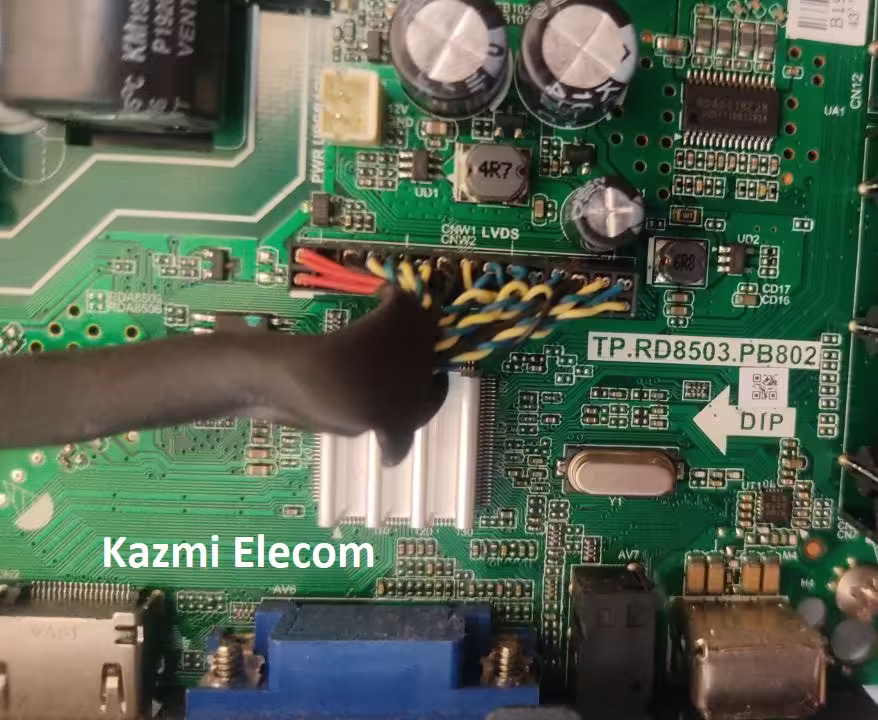

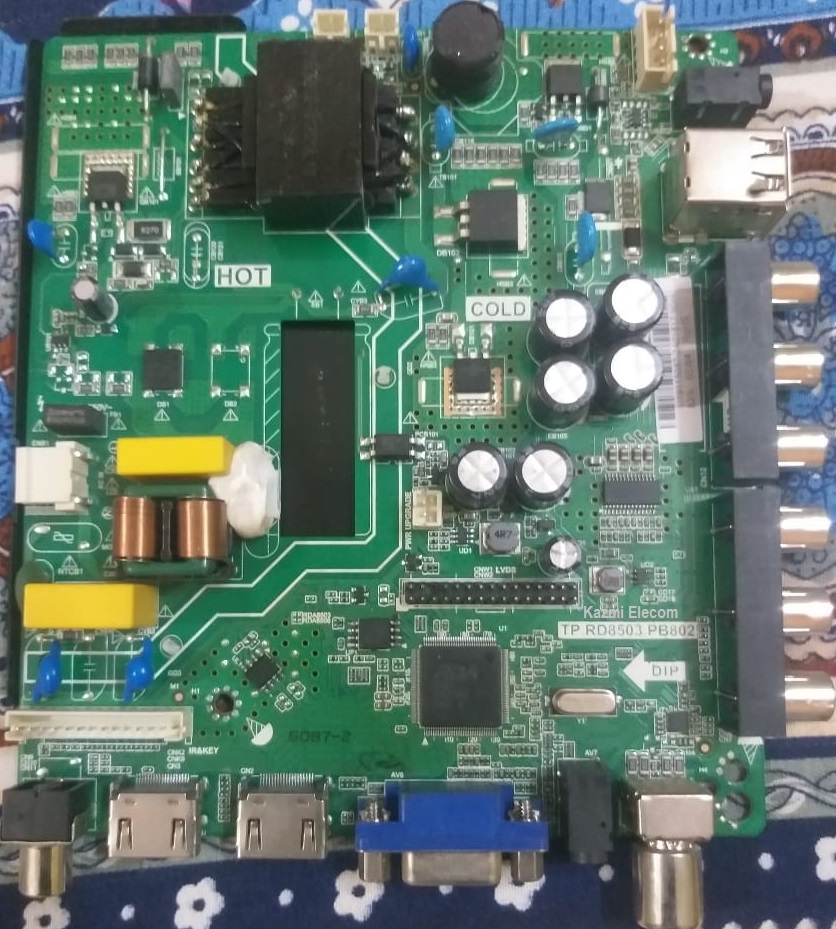

TP.RD8503.PB802 Universal Driver Board
TP. RD8503.PB802 FHD three in one LCD Driver board LED Display Screen Combo TV Card with Dual AV, Dual HDMI, Dual USB, VGA connectivity, RF input, and PC audio. TP-RD8503-PB802 can support up to 1920×1080 screen panel resolution. The USB interface can be used for Firmware Upgrade and Multimedia Playback.
Basic Info:
Model No. TP. RD8503.PB802 (Combo Board)
Main Chipset: RDA8503
LED Backlight: 220mA to 300mA
Display Format: up to 1920×1080 FHD
Panel Supported: 26″ 42″
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: 5V/12V (12V default)
USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support
Electrical Parameters:
Working Input Voltage: AC 230V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the FAT32 USB disk
Step 2: Copy the required resolution program (*. Bin file) to the USB disk.
Step 3: Connect the USB disk with the Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to stop flashing, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again. Do not turn off the power during the software upgrade process, it may cause damage to equipment.
Factory Service Mode:
Menu+1147
Firmware Name: SKR8503_00.bin
Firmware Type: USB upgradeable
How to Download TP.RD8503.PB802 firmware Files:
Download your required TP.RD8503.PB802 firmware file and then extract it you will get the folder. Now copy the files to USB. for More Detail about download process watch video Click Here
Note: Following given TP.RD8503.PB802 firmware is USB bootable and can be loaded by a Pendrive. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of installing/loading the firmware.
TP.RD8503.PB802 Firmware for Free Download Here :
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | TP.RD8503.PB802 _1366x768_Firmware | Download |
2 | TP.RD8503.PB802 1920x1080_Firmware | Download |
