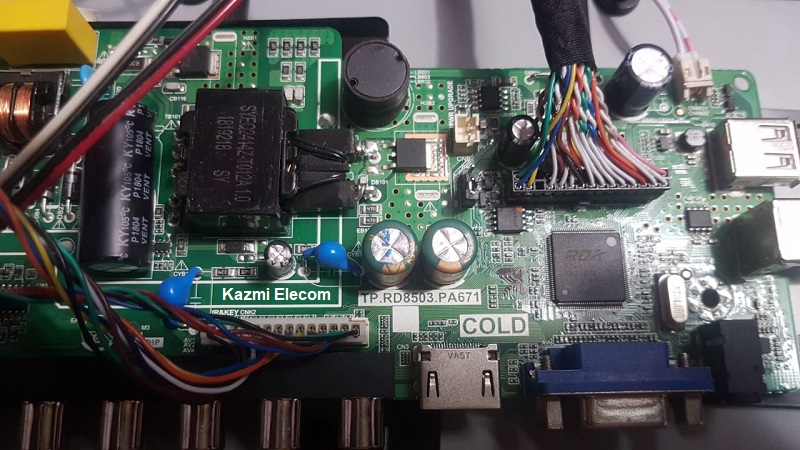

TP.RD8503.PA671 HD LED Driver Card
TP.RD8503.PA671 HD three in one LCD Driver Card LED Display Screen TV Card with Dual AV. TP-RD8503-PA671 can support up to 1920×1200 screen panel resolution. The USB interface can be used for Firmware Upgrade and Multimedia Playback.
Basic Info:
Model No. TP.RD8503.PA671 (Combo Board)
Main Chipset: RDA8503
LED Backlight: 220mA to 300mA
Display Format: up to 1920×1200
Panel Supported: 19″ t0 26″
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes

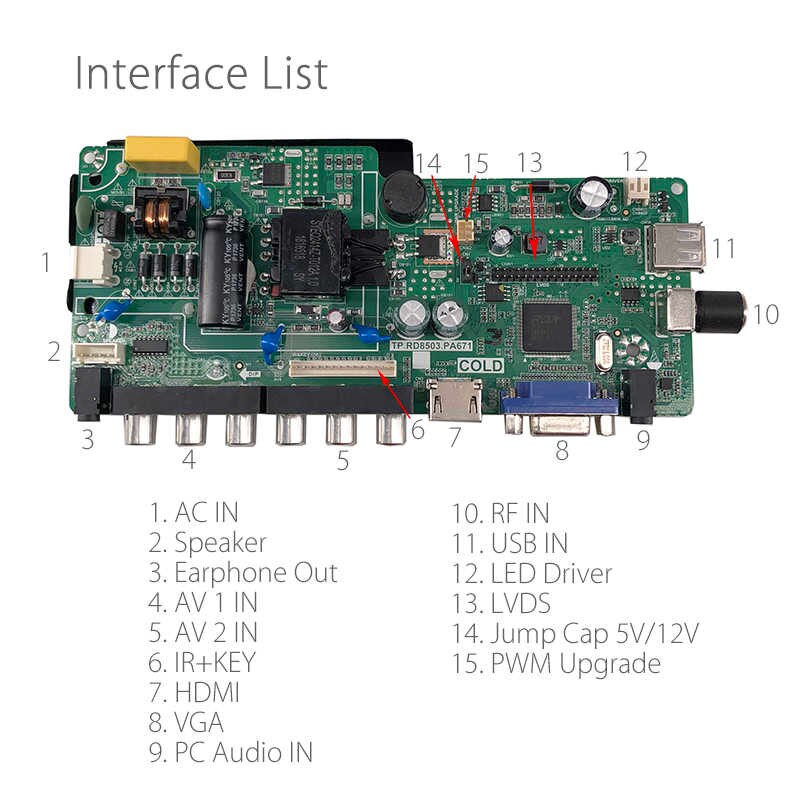

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohm)
Panel Voltage: 5V/12V
USB Port: USB interface for Firmware Upgrade and Multimedia Playback Support
Electrical Parameters:
Working Input Voltage: AC 250V
Maximum Current: 3000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keypad and IR also
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to stop flashing, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again. Do not turn off the power during the software upgrade process, it may cause damage to equipment.
Factory Service Mode:
Menu+1147
Note The following given firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download Firmware Files:
Download the following firmware and then extract it. You will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
TP.RD8503.PA671 Firmware USB upgradeable for Free Download Here :
