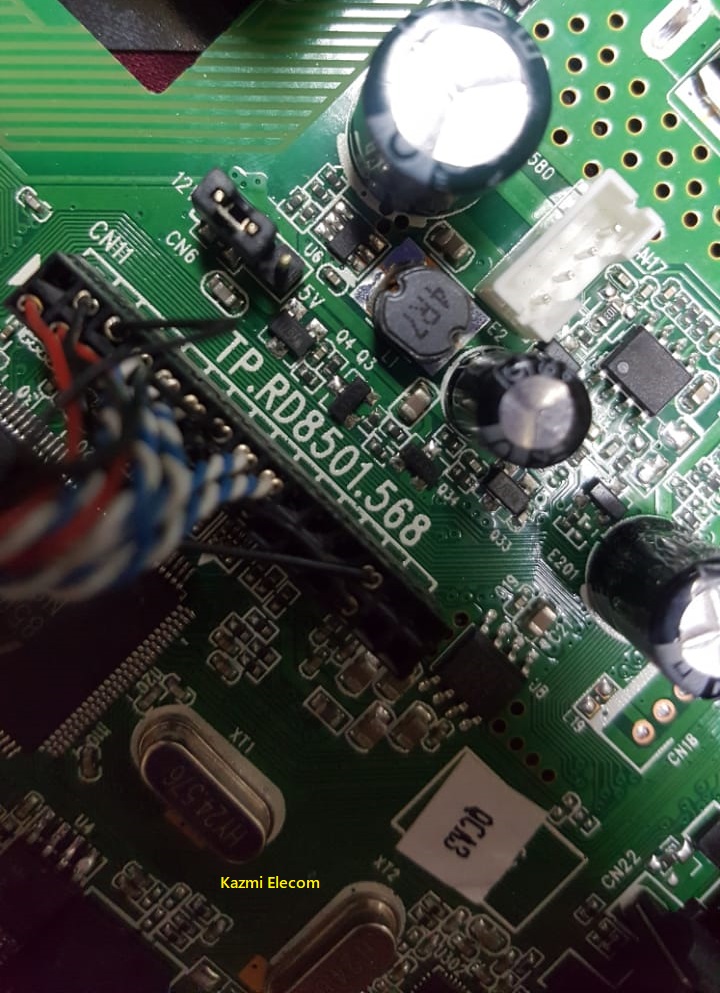

TP.RD8501.568 LED TV Board

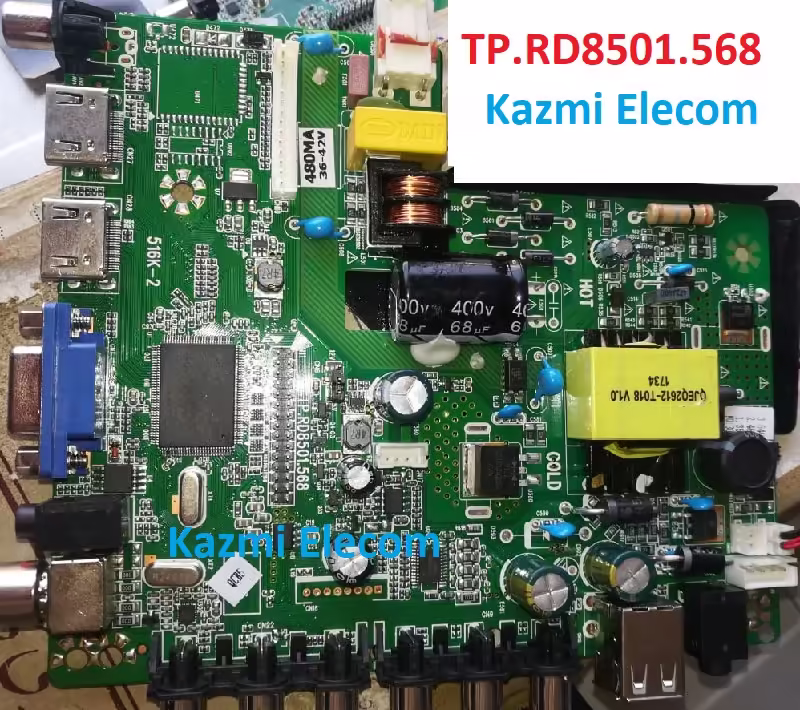

TP.RD8501.568 is an analog LED TV Controller Driver Board that is suitable for Asian and Middle Eastern markets. TP_RD8501_568 is a combo board with a main power module, LED Backlight Driver Inverter Module, and ATV card self-built in a single piece of PCB. TP-RD8501-568 can support Full HD panels. It can be suitable for 26 to 42-inch panel Screens. Its USB interface can be used for Multimedia Playback and for updating software as well.
TP.RD8501.568 has all the interfaces for input or connecting devices to user convenience. It has dual HDMI inputs for connecting STBs, Blu-ray media players, Gaming Consoles, and other Full HD devices. It has a VGA interface for connecting personal computers and laptops with a bigger screen. Its USB inputs can be used to connect external hard disk drives, play multimedia files, and upgrade software.
Technical Specifications:
Model Number: TP.RD8501. 568
Main Chipset: RD8501
Supported Resolution: 1920×1080
Screen Interface: LVDS single 6 single 8 double 6 double 8
Panel Screen Voltage: 5v, 12v with a jumper setting
Mirror Mode: Yes
Input Interface: Computer / HDMI / video / TV / USB multimedia / Headphone input and output
Backlight Output Voltage Range: 36V-42V
Backlight Current Output Range: up to 480mA
Factory Mode:
Menu+1147. For more Service Menu Codes visit Here.
How to Load Software:
- Transfer the RDA_8501.code.bin to the USB
- Connect the USB disk to the Motherboard
- Power on the Board
- When you Notice Flashing of LED it means the software loading process started
- Wait until the LED light gets steady. Done
TP.RD8501.568 firmware for free download:
