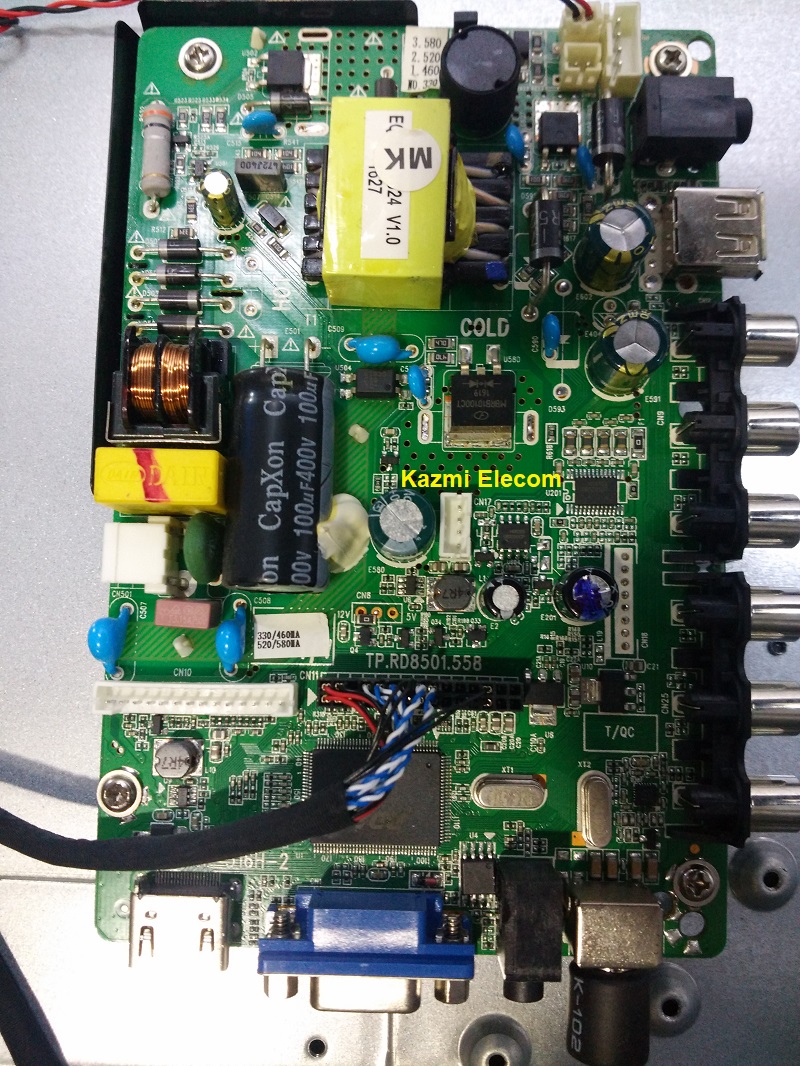

TP.RD8501.558 LED TV Board
TP.RD8501.558 is an analog LED TV Controller Driver Board that is suitable for Asian and Middle Eastern markets. TP_RD8501_558 is a combo board with the main power module and LED Backlight Driver Inverter Module and ATV card self builtin into a single piece of board. TP-RD8501-558 has multiple jumper setting options for backlight adjustment that make work easy. Its USB interface can be used for multimedia playback and software updates.
TP.RD8501.558 is a three-in-one board with all the connectivity user interface for user convenience. This board is suitable for 32-inch to 39-inch LCD LED TV Screen panels. It has HDMI, USB, RCA, Headphones, VGA, and Cable TV tuner interfaces.
General Specifications:
Model Number: TP.RD8501.558
Main Chipset: RD8501
Supported Resolution: 1920×1080
Screen Interface: LVDS single 6 single 8 double 6 double 8
Mirror Mode: Yes
Input Interface: Computer / HDMI / video / TV / USB multimedia / Headphone input and output
Backlight Output Voltage Range: 35V-75V
Backlight Current Output Range: 300MA / 350MA / 450MA / 560MA (jumper setting)
Factory Mode:
Menu+1147
How to Load Software:
- Transfer the RDA_8501.code.bin to the USB
- Connect the USB disk to Motherboard
- Power on the Board
- When you Notice Flashing of LED it means the software loading process started
- Wait until the LED light gets steady. Done
Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download firmware file:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.RD8501.558 firmware for free download:
