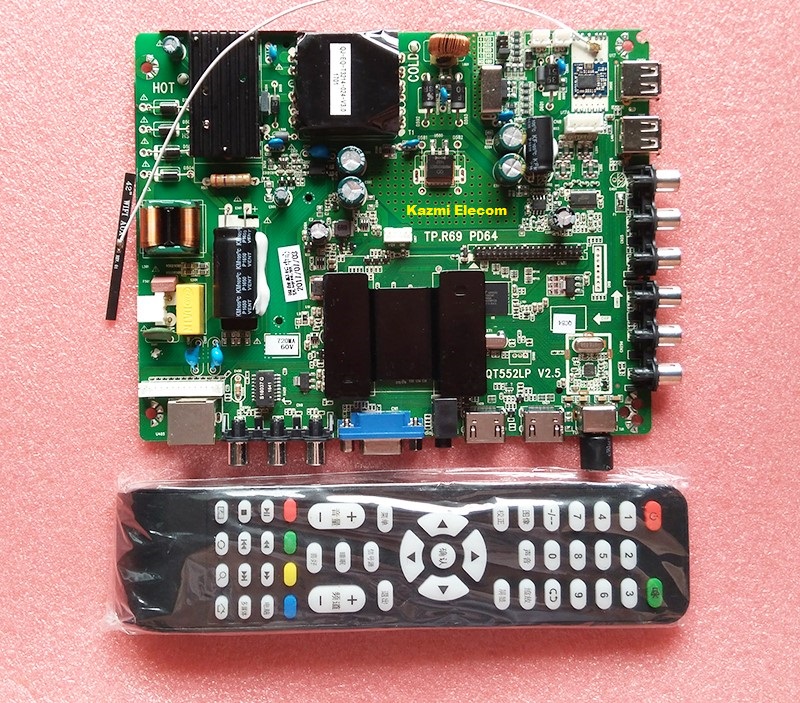

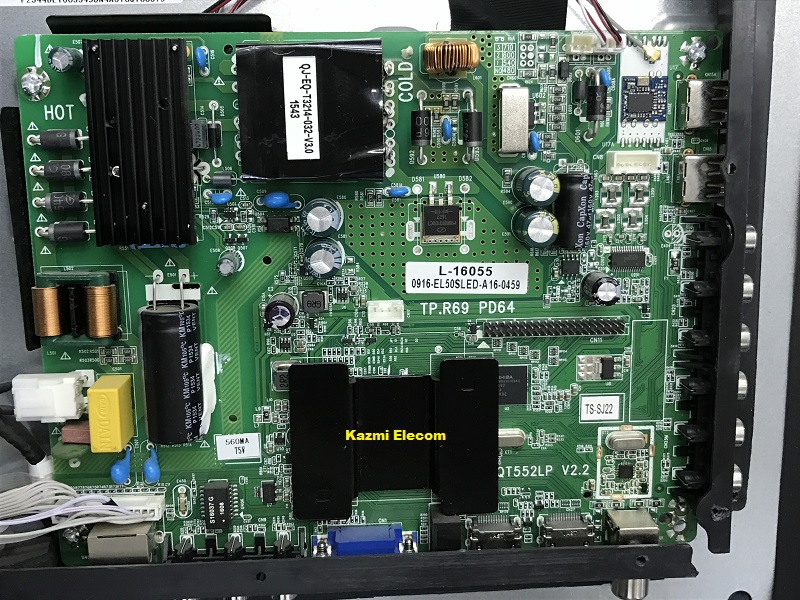

TP.R69 PD64 Intelligent Network Board
TP.R69 PD64 has many hardware versions according to different hardware specifications like:
- QT552LP V1.2
- QT552LP V1.5
- QT552LP V2.2
- QT552LP V2.3
- QT552LP V2.5
Basic Info:
Main Board Model: TP.R69 PD64 (Smart WIFI Board)
Processor: 1.2 GHz Dual Core
Android Version: 4.0.4
Ram: 512MB
Rom: 1Gb to 4Gb
Main Inputs: HDMI, USB, CVBS, YPbPr, RF, VGA, Ethernet
How to Update:
- Copy the upgrade file (Install.img) into USB Disk
- Plug in the USB Disk into USB Interface Port of Main TV Card
- Press and Hold the power button on the TV Panel and then Turn on the TV
- After 5 Seconds release the power button
- If the LED light starts flashing, it means TV is entered in Upgrade Mode and Upgrade screen will appear
- Within in 2 minutes, the process will be done and tv will go to standby mode.
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.R69 PD64 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.R69 PD64_QT552LP V2.2_Eurostar T32SLED-A14.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_Eurostar T32SLED-A14.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_Eurostar T32SLED-A14.part3 | Download | |
| 2 | TP.R69 PD64_QT552LP V2.2_Eurostar 49DN4A.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_Eurostar 49DN4A.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_Eurostar 49DN4A.part3 | Download | |
| 3 | TP.R69 PD64_QT552LP V1.4_Panel_LC430DUY.part1 | Download |
| TP.R69 PD64_QT552LP V1.4_Panel_LC430DUY.part2 | Download | |
| TP.R69 PD64_QT552LP V1.4_Panel_LC430DUY.part3 | Download | |
| TP.R69 PD64_QT552LP V1.4_Panel_LC430DUY.part4 | Download | |
| 4 | TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Eurostar.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Eurostar.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Eurostar.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Eurostar.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Eurostar.part5 | Download | |
| 5 | TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Eurostar.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Eurostar.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Eurostar.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Eurostar.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Eurostar.part5 | Download | |
| 6 | TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Unionaire.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Unionaire.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Unionaire.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Unionaire.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1366x768_Logo_Unionaire.part5 | Download | |
| 7 | TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Asano.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Asano.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Asano.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Asano.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Asano.part5 | Download | |
| 8 | TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Blackstone.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Blackstone.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Blackstone.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Blackstone.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Blackstone.part5 | Download | |
| 9 | TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Unionaire.part1 | Download |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Unionaire.part2 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Unionaire.part3 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Unionaire.part4 | Download | |
| TP.R69 PD64_QT552LP V2.2_1920x1080_Logo_Unionaire.part5 | Download | |
| 10 | TP.R69 PD64_QT552LP_1366x768_Eurostar 32DN4.part1 | Download |
| TP.R69 PD64_QT552LP_1366x768_Eurostar 32DN4.part2 | Download | |
| TP.R69 PD64_QT552LP_1366x768_Eurostar 32DN4.part3 | Download | |
| TP.R69 PD64_QT552LP_1366x768_Eurostar 32DN4.part4 | Download | |
| TP.R69 PD64_QT552LP_1366x768_Eurostar 32DN4.part5 | Download |
thank you sir
you are grate
Thanks You Vry Much!
Bhai Jan AOA Bari meherbani hogi agar aap Samsung remote wala tp.r69 pd64 v2.3 Ka software upload Ker dain ya is software Ka mutbadil software bats dain Woh bhi image file mein ho na ke bin file ho thanks
Bhai Jan AOA Eurostar Ke remote Ka bata dain ya China Ka kon sa remote lage ga thanks
Ya phir bata dain is led mein kon sa latest board jis Ka android version bhi latest ho replace Ker Doon
Latest board ki keya price hogi aur bio programmer kon sa Acha hai aur ous ki price keya hai thanks
link kaam nahi kar raha forbiden ya pher wrong ip atah ai
try again with another browser
Kazmi sahib 2.3 ka firmware upload ker dain khasusi request hai jab aap logon ki request poori ker rahe hain tou merit request bhi poori ker dain thanks
asslam o alaikum
bahi is sofwer ko donwload karny k baad usb mein kesy karna he .plz tariqa bata dein ……..
w.salam dear power key press kar k try karen nai to vol+ key se try karen
Assalamualikum
Plz can you give me software for .
qt552hp/tp.r69 pd66a
And i also want to ask a question that my tv led light is dim and tv is turning on even with back buttons
Dim means it is low like a bulb fuse but why it is not turning on
Plz i request reply me
I have seen many vidoes on your channel but i cant that issue.
I know in your video you said that this is stand by issue but led light is also so dim
Plz reply me
Thanks.
Big supporter
w.salam dear
dont need to load software it may dead. dim maybe due to backlight or panel issue
But i have checked my panel using. Another board .
Its working fine.
But can i fix by board
QT552LP V4.4 KA NI MIL RHA BHAI
assalam o alaikum
TP.R68 PD66A -QT572HP v3.1 Ka FIRMWARE Load kar De
THAKNS
w.salam dear iski sirf EMMC backup file hy mere pas. usb firmware nai hy
TP.R68 PD66A-QT572HP V3.1 ka sofware chaiy plz
QT552LP ka software
