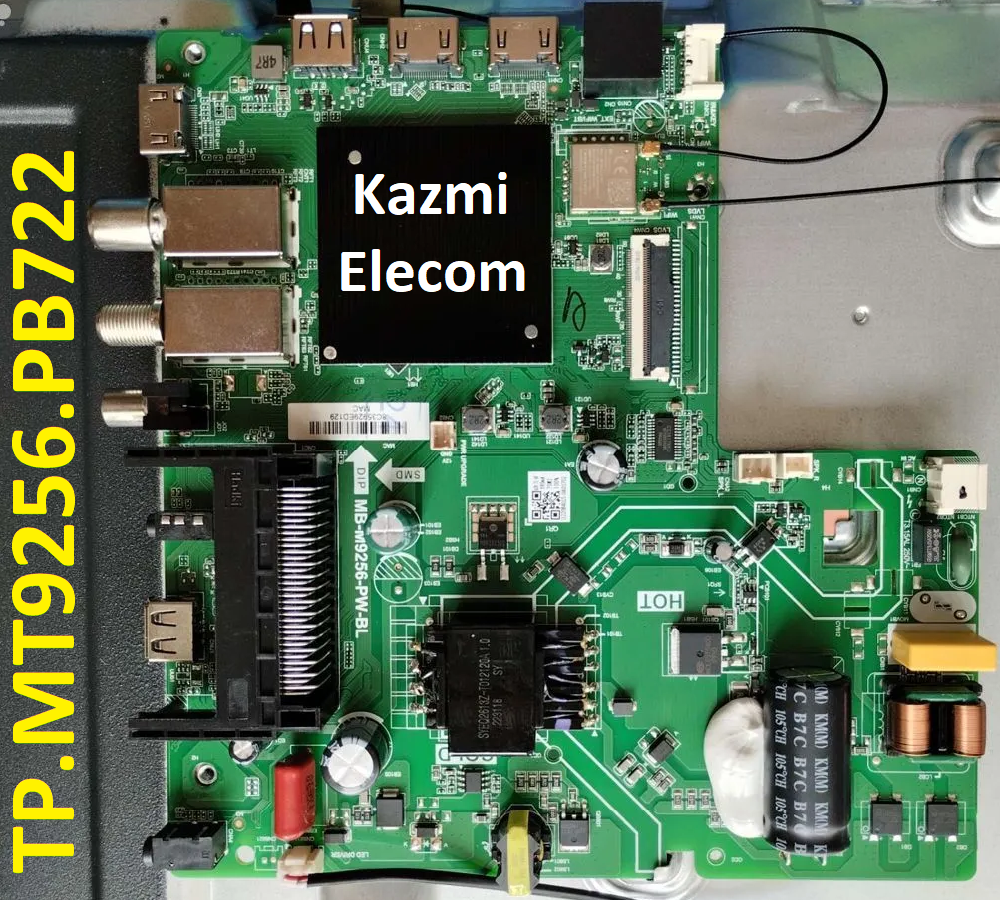

TP.MT9256.PB722 Smart Android Board
TP.MT9256.PB722 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_MT9256_PB722 has a powerful Wi-Fi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP MT9256 PB722 Smart Board has multiple ports of A/V, SCART, USB interface Port, and Dual HDMI ports as well. TP-MT9256-PB722 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.MT9256.PB722 is a Combo Network Triple play board. The Graphics and Sound quality of the TP-MT9256-PB722 Android board are very good and the Response rate is very efficient. TP_MT9256-PB722 China’s smart network board can support up to 32-inch to 43-inch LED Panels. TP.MT9256.PB722 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.MT9256.PB722 (T) B22298, MB-M9256-PW-BL
Main Chipset: MT9256
Operating System: Android 11.0
CPU: ARM Cortex-A53 quad-core 804MHz
GPU: Mali-450 Dual-Core 432MHZ
RAM: 1Gb
ROM: 8Gb
Back Light: 48w 600mA
Resolution: up to 1920×1080
Screen Size supported: 43 to 55 Inch
Audio Output power: 2x8W
Video System: PAL, SECAM, NTSC
DTV Transmission: DVB-T/C/T2/S/S2
Input Voltage: 100-240V AC
Firmware Name: allupgrade516_8GB_1GB_ref100.bin
Firmware Type: USB Updateable Firmware
Product User: DEXP
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MT9256.PB722 firmware file for free download:
- TP-MT9256-PB722-1920×1080-1G-8G-DEXP.part1
- TP-MT9256-PB722-1920×1080-1G-8G-DEXP.part2
- TP-MT9256-PB722-1920×1080-1G-8G-DEXP.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
