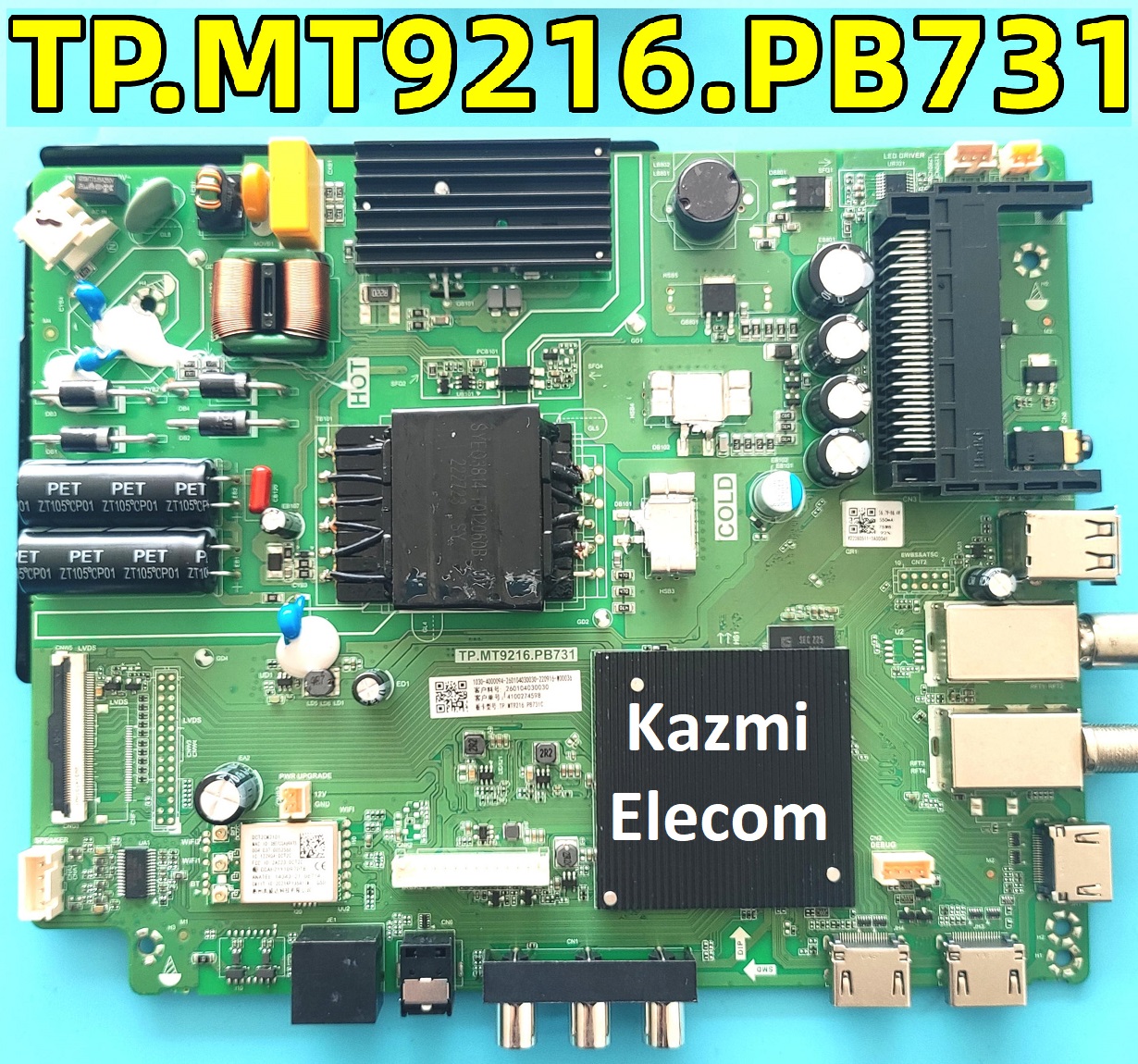

TP.MT9216.PB731 Smart Android Board
TP.MT9216.PB731 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_MT9216_PB731 has a powerful Wi-Fi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP MT9216 PB731 Smart Board has multiple ports of A/V, SCART, USB interface Port, and Dual HDMI ports as well. TP-MT9216-PB731 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.MT9216.PB731 is a Combo Network Triple play board. The Graphics and Sound quality of the TP-MT9216-PB731 Android board are very good and the Response rate is very efficient. TP_MT9216-PB731 China’s smart network board can support up to 32-inch to 43-inch LED Panels. TP.MT9216.PB731 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.MT9216.PB731
Main Chipset: MT9216
Operating System: Android 11.0
CPU: ARM Cortex-A53 quad-core 804MHz
GPU: Mali-450 Dual-Core 432MHZ
RAM: 1Gb
ROM: 8Gb
Back Light: 48w 600mA
Resolution: up to 1920×1080
Screen Size supported: 32 to 43 Inch
Audio Output power: 2x8W
Video System: PAL, SECAM, NTSC
DTV Transmission: DVB-T/C/T2/S/S2
Input Voltage: 100-240V AC
Firmware Name: upgrade_image_no_tvcertificate.pkg
Firmware Type: USB Updateable Firmware
Product User: Haier
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MT9216.PB731 firmware file for free download:
hello sir ineed TP.MT9216.PB731 Firmware please there is no option or file for download please help me sir
link added
i want model tpd mt9216 pb761 service code sir
Not confirm. Menu 1147 and Source/Input 2580 are common. otherwise, try one by one:
https://www.kazmielecom.tech/category/document/service-menu-codes/
Greetings friend, I installed 2 firmware that I downloaded from the website, one 1920×1080 and 1366×768, and both give me the same split screen error I enter service mode, and I can’t change the settings for the screen, can you help me? and tell me where to change the settings
install proper screen resolution software then check panel division option in service menu otherwise search some more software
hello sir i need software tp.mt9216.pb731
1920/1080 please sir
NA
I need software for MB-M9612-PW-CL-0157 or MB-M9612-PW-CL-0158 with Android tv
Brand Name and Model?
Blaupunkt 43ubc6000 or dexp a431
Not available
hello sir mene haier me software kiya software home ke bad me tv barning mode par a raha he
ishka kiya solution he pleese
haier bord nambar tp.mt9216.pb731
panel mismatch
sar ye 1366 nahi hai 190.1080 hai mene laga ya hai mujhe 1366 chiye
link check karen iski resolution 1366 likhi hy: HAIER LE32K7700GA
https://www.haier.com/in/tvs/bezel-less-google-android-tv-smart-ai-plus-32-inches-le32k7700ga.shtml
but sar y 10 data par chalra hai upgret k bad penal 5 deta ka hai i need 5 deta 1366 & 786
Haier LE40K7700GA
TP.MT9216.PB731
Software required
Sansui 32” LED TV
Model no JSWY32GSHD
Board no NTM9216.3G040
Required software
Not available
software haier h32k702g-15 main tp.mt9216.pb731 smart panel v320bj8-q01 merce
software haier h32k702g-05 main tp.mt9216.pb731 panel v320bj8-q01 smart usb
TP.MT9216.PB731 sir ye software apki website se install nh ho raha. Kindly send me on mailbox
all links working
