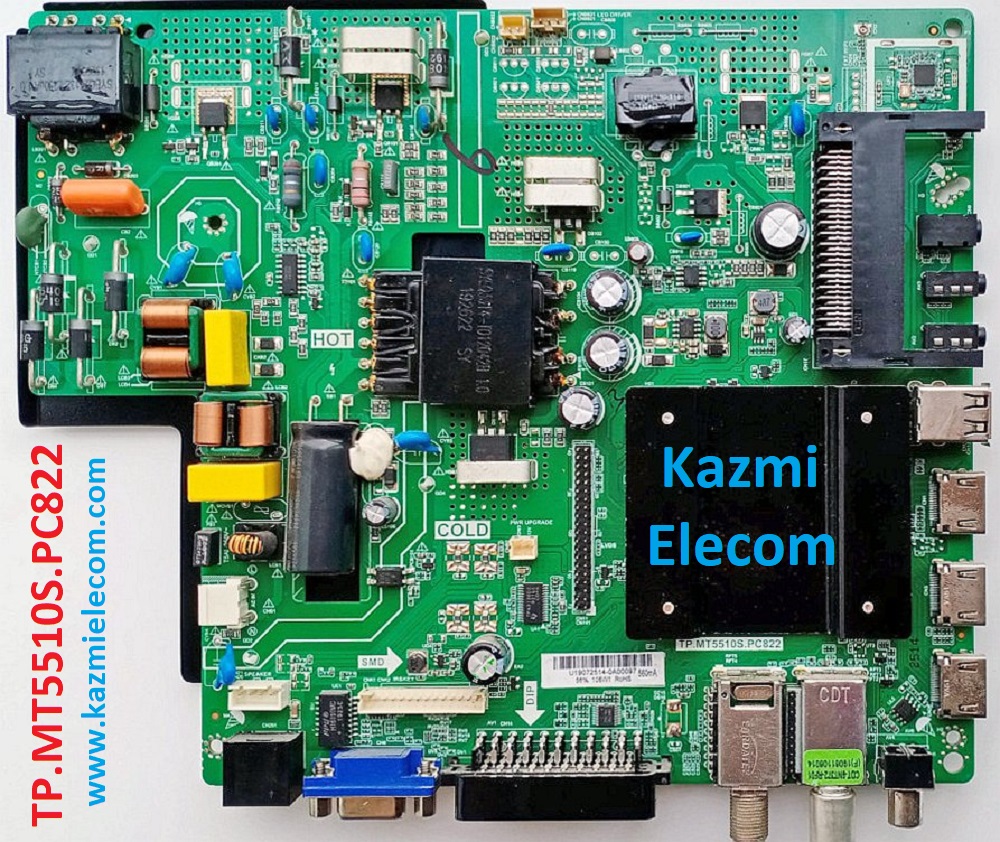

TP.MT5510S.PC822 Smart Android Board
TP.MT5510S.PC822 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_MT5510S_PC822 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP MT5510S PC822 Smart Board has multiple ports of A/V, SCART, USB interface Port, and Dual HDMI ports as well. TP-MT5510S-PC822 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.MT5510S.PC822 is a Combo Network Triple play board. The Graphics and Sound quality of the TP-MT5510S-PC822 Android board are very good and the Response rate is very efficient. TP_MT5510S-PC822 China’s smart network board can support up to 50-inch to 65-inch LED Panels. TP.MT5510S.PC822 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.MT5510S.PC822
Main Chipset: MT5659DHMT or MT5659DHNT
Operating System: Android 7.0
CPU: ARM Cortex-A53 quad-core 804MHz
GPU: Mali-450 Dual-Core 432MHZ
RAM: 1Gb
ROM: 8Gb
Back Light: 138w 600mA
Resolution: up to 1920×1080
Screen Size supported: 43 to 65 Inch
Audio Output power: 2x8W
Video System: PAL, SECAM, NTSC
DTV Transmission: DVB-T/C/T2
Input Voltage: 100-240V AC
Firmware Name: allupgrade_5510_1G_ref56.pkg
Firmware Type: USB Updateable Firmware
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MT5510S.PC822 firmware file for free download:
- TP-MT5510S-PC822 1920×1080-1G-8G-POLARLINE.part1
- TP-MT5510S-PC822 1920×1080-1G-8G-POLARLINE.part2
- TP-MT5510S-PC822 1920×1080-1G-8G-POLARLINE.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Peace
