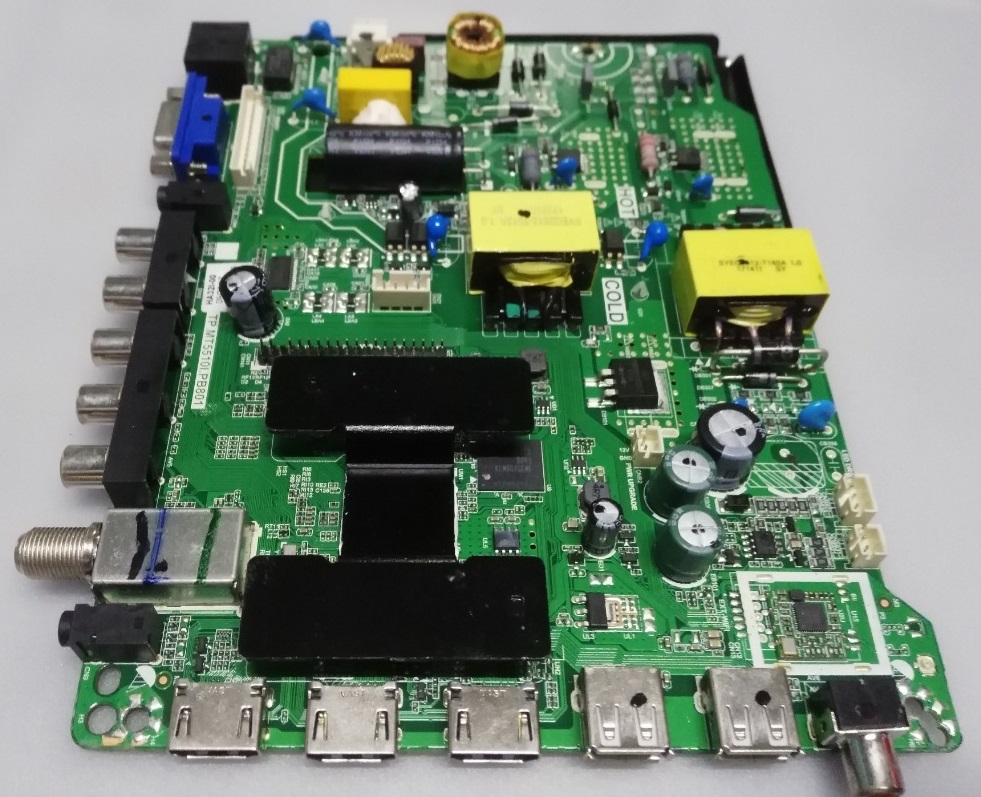

TP.MT5510i.PB801 Smart Android Board
TP.MT5510I.PB801 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_MT5510I_PB801 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP MT5510I PB801 Smart Board has multiple ports A/V, Dual USB interface Ports, and three HDMI ports as well. TP-MT5510I-PB801 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.MT5510I.PB801 is a Combo Network Triple play board. The Graphics and Sound quality of the TP-MT5510I-PB801 Android board are very good and the Response rate is very efficient. TP_MT5510I-PB801 China’s smart network board can support up to 32-inch to 43-inch LED Panels. TP.MT5510I.PB801 firmware file is available for the technician’s support.
Specifications:
Brand: China
Model: TP.MT5510i.PB801
Main Chipset: MT5659CHNT or MT5659CHMT
Display Resolution: 1920×1080
Backlight: 72-82 V 600 mA
Processor: Quad-Core
CPU Frequency: 804 MHz
Graphic Processor: Dual Core
GPU Frequency: 432 MHz
RAM Capacity: 1Gb
Storage Memory: 4/8 Gb
Operating System: Android 7.0
No of HDMI Ports: 3
No of USB Ports: 2
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output RMS: 24W (12W*2)
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 65 W, 1 W (Standby)
Firmware Type: USB Update
Firmware Name: allupgrade_5510_8G_1G_ref56.pkg
Product: Micromax India & JVC
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software.. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files or facing any issues during firmware installation then read here first.
How to Download Firmware Files:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MT5510i.PB801 Firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MT5510i.PB801_1920x1080_Micromax_India.Part1 | Download |
| TP.MT5510i.PB801_1920x1080_Micromax_India.Part2 | Download | |
| TP.MT5510i.PB801_1920x1080_Micromax_India.Part3 | Download | |
| 2 | TP.MT5510i.PB801_1366x768_Micromax_India.Part1 | Download |
| TP.MT5510i.PB801_1366x768_Micromax_India.Part2 | Download | |
| 3 | TP.MT5510I.PB801_1366X768_8G_JVC_REF30.part1 | Download |
| TP.MT5510I.PB801_1366X768_8G_JVC_REF30.part2 | Download | |
| 4 | TP.MT5510I.PB801_1920X1080_8G_JVC_REF30.part01 | Download |
| TP.MT5510I.PB801_1920X1080_8G_JVC_REF30.part02 | Download | |
| 5 | TP.MT5510I.PB801_1920X1080_8G_JVC_REF56.part01 | Download |
| TP.MT5510I.PB801_1920X1080_8G_JVC_REF56.part02 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
1920 1080 ka part 12 .11 main show ho rha hy es trah 12 say 16 no parts ghalt hain
Noted. i will rearrange
can tp.mt5510i.pb801 sofware works on tp.mt5510i.pb805 board?
not tested but i hope it will work
Walton :model : WE4-DH32-BY210: TP MT5510I.PB801 software
tp.mt5510i.pb801 file error
I have used both winrar 7zip but the file is not extracting
I have downloaded from your website but these files are not working it shows error while extract
tp.mt5510i.pb801 update file give new download link
download both parts then extract anyone of them
1920×0 1080 software part 12 re-upload
link is working. 12 times downloaded. try again
thanks sir link is working
Atvio atv 4017iled se queda en logo Android necesito el software tp.mt5510i.Pb805
first try to hard reset
Como lo puedo hacer amigo
load by USB FAT32
Hi, how do I do a hard reset? tp.mt5510i.pb801
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
como se puede hacer had reset
try
https://www.kazmielecom.tech/how-to-reset-smart-tv/
serve para board TP.MT5510I.PB805?
not available
necessito da atualizaçao desta….estou a procura…alguem sabe?
No puedo instalarlo el TV no reconoce la usb. Ayuda
why you want to install. First check your tv mainboard then search exact matching remote firmware. otherwise tv will be dead
el modelo de placa de mi tv es tp-mt5510i-pb801 . Se queda en el logo de android.. podria guiarme de como intalar, Gracias.
first try to hard reset your tv to recover original software
NO HAY MANERA DE RESTABLECER. ESTA DAÑADO EL FIRMWARE POR ESO NO AVANSA DEL LOGO DE ANDROID, LA TV TAMPOCO CUENTA CON BOTON RESET, O COMO AGO PARA RESTABLECER?
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
how to do a hard reset?
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
i have the same problem,did you manage to fix it?
I need firmware for tp.mt5510i.pb805
Please upload tnx…
not available
Hola buenad noches tengo una smartv mitsui de 32″ y usa este tipo de memoria me podrias desir cual link es el aduecado para ella
Instale el firmware pero ahora no me reconoce el control remoto origina que control debo utilizar
better to use universal remote
Como lograste instalarlo Carlos? Encontraste la combinación de botones para el hard reset?
Como le hiciste para descargar el firmware ala memoria
Como le hiciste tengo lo mismo
COMO LOGRASTE INSTALARLO???
carlos como hiciste para instalar intalar el firmware? yo lo descargue pero no puedo lograr instalarlo,me pueden ayudar.
Disculpa como lo lograste
Hola, en que idioma viene el software?
language:English
Brand: Micromax
Origin: India
i need a remote for this motherboard Tp.mt5510i.PB801
try universal remote
Hola, una vez que se extraen los 20 archivos se crea una carpeta con otros dos RAR, todos los archivos se meten asi a la memoria para isntalarlo en la TV o se necesita descomprimir los otros dos RAR?, saludos, gracias de antemano.
extract the rar folder
this software is not for updates. if the tv is stuck then you can load but remote maybe change
Mi tv no reconoce la momoria USB ya descomprimi los archivos de la carpeta AHMT y DHMT.
what is the issue in TV, you have to load files available in the folder. maybe your remote control not work
Hola estoy trabajando con una placa tp.mt5510i.pb801 calibrada para 43 pulgadas. La pregunta es cual de las carpetas del firmware es la que debo cargarle. Desde ya muchas gracias
according to your panel and board specifications
Sus link de descarga están perfectos, ya tengo todo el archivo descargado. Ahora, cómo se instala .pkg?
Hola Man me podras los pasar los archivos no los puedo descargar WhatsApp 3885212975 te lo agradecería Man
hola nesecito el firmwar de la placa MT 5510I.PB801 como se descarga
you can download but the remote control and logo maybe change
estos firmwares tiene el idioma español disponible?
this firmware has the spanish language available?
not confirm
I got the files, but when I extract the folders, this have two other files whit the name AHMT and DHMT. I extract this files too, but what file I need to copy at the USB? Only the bin file or all files?
all files in the folder but not for update purposes. be careful
I just downloaded all the files. but I could not install, and the files in the AHMT and DHMT folders are the same. use the AHMT files and charge correctly. but now I turn on and it’s in refresh mode and I can’t remove it from there.
can you clarify what is refresh mode??? if panel resolution mismatch then burn mode on
file not boot my tv
first, try with recovery option I hope it will be fine
P.MT5510I.PB801 for tv cloudwalker 43SFX2.
gracias ya lo descargue pero falta el archivo mboot.bin para poder correr la usb
you can get by mboot extractor tool/ i think no need. change usb it must be FAT32
hi, when finished the download the 10 files, i am extract the rar archive and it is generated the folder with various documents, but what documents i need copy the usb ?
bin file. get idea from youtube videos how to load firmware
not for update purpose
yeah is not for update, i have a smart tv whit board tp.mt5510i.pb801 he turn on but power and only show the logo, the treaty install the software but i cant, in the usb only it is copy the file .bin ? because in the files extracted there are files .pkg, .bin and files .txt
.pkg file will be loaded but first try to hard reset. by loading this software logo and remote maybe change
If you are having problem getting the software to work, try changing the pkg file name to
allupgrade_5510_sos.pkg
Sir says the software is not open Please help me
download all parts then unzip with 7zip
como va el proceso de instalacion? como se hace paso a paso? ya teniendo los archivos
BUENAS TARDES LOS LINKS ESTAN CAIDOS
mention the serial number and part number
BUENAS TARDES TENGO UN TV 32 PULGADAS MARCA KANJI MODELO KJ-MN320C-30SM CON MAIN TP.MT5501l.PB801 EL CUAL QUEDA EN EL LOGO ANDROID , CUAL SERIA ES EL QUE TENGO DE DESCARGAR, HAY FORMA DE RESET CON EL CONTROL REMOTO. MUCHAS GRACIAS
first, try to hard reset with TV keypad buttons
saludos , funciona para este firmware T.mt5510i.81??? o lo tendran para descargarlo???
la pantalla se queda en el logo tv3219s
gracias!¡¡
bords have different specifications. never experienced with this board
Sir,
I need software for this TP.MT5510I.PB801
My tv name is Walton 43” .
Model no is WD4-TS43-DL210
Smart tv
TP.MT5510I.PB.801 need software for my 43” smart tv which is named Walton and the model no is WD4-TS43-DL210
not available for walton brand
Assalamu alaikum
Kazmi Bhai,
Bhai mere BRAND ka naam jaruri hein ka softwaer upload k mamle mein jankari k liye puch raha hu.
meherbani hoga agar batade
or mujhe asal mein (TP.MT.5510I.PB801) isike liye softwear chahiye
mein aapko hole story bayan karu,mera jo smart tv hein uske sath asal mein hua keya,jaise ke apne aak smart tv ko thik kiya softwaer k jariye,us mein problem tha k logo show karta hein or smart likhha display bhi hota hein or buble in out move hota hein.bilkul usi tarah mera tv bhi power milne pe aisa hi harkat karta heni or hang hoke reh jata hein.
(wisdom share smart cloud tv software problem and solution) you tube par is vedio ko dekh kar hi aap se rafta shuru ki hein mere bhai.
w.salam
dear first try to hard reset
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
Ok bhai I’ll try first
Assalamu alaikum
Bhai try kiya hard resetting deke,but still same problem .to aab Keyaa kare ?or ko-ee haal batai please
load software at your own risk
Software dedo phir mujhe
site se download kar len
Estimados no se puede abrir los links de TP.MT5510I.PB801
Intento pero no puedo descargar
watch the video in the given link under how to download and get idea
amigo ya tengo los archivos pero el tv no los lee cual podria ser la causa del problema
change the usb disk
buenas colegas ya descargue los archivos pero mi problema es que el tv no los carga que debo hacer que problema seria
e copiado todos los archivos el usb pero el tv no los reconoce me podrian dar una ayuda
not all files. unzip anyone part then copy the bin files to u-disk
Para Atvio atv4017iled tp.mt5510i.pb805 se queda en el logo Android tengo que descomprimir todos los archivos o solo uno para meterlo en la memoria usb
SIR WE NEED TP.MT5510I.PB805 EMMC PIN OUT DETAIL ,
tengo un tv marca punktal modelo mt 5510ipb801 no encuentro el sfware para desbloquearlo alguien quien me pueda alludar
which hard reset processs do i use wich tp.mt5510i.pb805 (i tried this six one’s https://www.kazmielecom.tech/tag/reset-android-tv)
i have the same problem
what happens if i upload my tp.mt55010i.pb805 with tp.mt55010i.pb801?
Buenas tardes, necesito el firmware tp.mt5510i.pb801 es para el TV KANJI KJ-MN320C-30SM el cual se queda en la pantalla android por siempre. ya se probo todas las posibilidades de hacer un factory reset o un hard reset sin exitos ya que el televisor no entra en modo recovery, ninguna combinacion de las teclas para reset funcionan en esta tv. por favor alguien que pase un link valido apra descarga de firmware o puedan enviarmelo al correo electronico canchelara@hotmail.com Muchas gracias.
salidosyo necesito los lik del por otra via aqui no funcionan de la placa tp 5510i pb 801 mi tv esta en el logo y necesito que alguin me ayude
recovery file not available for this board. try with the following techniques:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
software para TP.MT5510I.PB801 Funciona na placa TP.MT5510I.PB805??
pois nao encontro em lugar algum para TP.MT5510I.PB805 alguem pode me ajuda por favor..
never experienced but i hope it will work
estou com o mesmo problema
encontrou solução?
Mi duda es con sistema operativo debo crear mi usb pendrive para que reconozca mi tv
no experience about this
EXCELENTE PERO DEBEN INCLUIR EL ESPAÑOL COMO IDIOMA
Mt 5510i pb 801 hag mastar upgrade bin software den vai
gracias por compartir el software saludos desde peru
si pueden resumir como descargarlo seria genial porque no entiendo el idioma del video
https://www.upload-4ever.com/free515971.html
signup account and upgrade to premium then you will get direct download link
Has anyone tried using tp.mt5510i.pb801 software to tp.mt5510i.pb805?
busco fireware para tv panoramic pnm3032 con placa tp.mt5510l.pb801 . se queda en android ..hay disponible ?
Not available. you should try to hard reset
Hi.l need soft tp.mt5501i.pb.801
links down, repair please, I´m need softaware 1920 x 1080 JVC
I replace the links
hello sir links are not working please do something
i need micromax 1920 1080 software
updated
I can not download 1366X768 JVC pls check !
links updated
Los links de la opción 1 dan error, no sé si están caidos o que problema hay…
Los necesito, gracias de antemano!
updated
1) Please shere the service menu code??????
TP. MT5510I. PB805
2) I need softwear CV-9255-A42
Please help sir.
https://www.kazmielecom.tech/2019/04/08/all-lcd-led-service-menu-code.html
CV-9255-A42 softwear nahi he kya sir????
Not Available
Mere paas abhi yahi same number ka ok board aaya he. .. to kuch ho sakta he????
TP.MT5510I.PB805 firmware
Me pueden pasar el firmware por favor los links no abren
links working. if you found any link broken then mention here with serial and part number
Hola, amigo, tengo varias tarjetas de este modelo tp.mt5510i.pb801, he intentado hacer un hard reset sin resultado, tambien he descargado el software descomprimirlo en usa y no logro que lo pueda detectar, seria bueno un video como hacer el update de el firmware para las marcas mastertech, jvc
espero me puedas ayudar
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
Hola, segui todos los pasos de ese link y no logro, poder instalar el firmware, solo me queda en el logo de mastertech, he cambiado USB, hice varias combinaciones de botones vol+ vol- power sin resultados
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
otherwise, visit the technician
i thechnician bro
Hola buen día, Me pueden facilitar la contraseña para descomprimir el archivo
no password set
hola, la contraseña es 88800
Good Morning Bhai,
I have Micromax 40CANVAS1PRO with Mtherboard NO.:TP.MT5510I.PB801. IT stucked on Boot Screen. I downloaded firmware from website and tried to install software but. it could not able to load. It directly route to boot screen stucked LOGo every Time. IS there need to press any key while powering ON??. SEcondly i tried to reset TV with Reset file given on your website. but result is same every time it is not taking command from USB. Please help me out. One more question can i try to load TP.MT5510I.PC821 Software in it. will it work.
Please share process to upgrade this particular model.
Thanks
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
https://www.kazmielecom.tech/2021/08/26/how-to-load-firmware.html
otherwise, visit the technician
brother the file uploaded by you for TP.MT5510I.PB801 for Micromax 40CANVAS1PRO not downloading. we are able to download only part 1,2,3,4 ..baki ke part error show kar rhe h… can you please help
all links working
fits TP.MT5510l.PB805
chip mediatek.
television is stuck in the logo.
Cheers
TP.MT5510I.PB801_1920X1080_8G_JVC_REF56.part7 not working, please
link replaced
TP.MT5510I.PB801_1920X1080_8G_JVC_REF56.part7.rar
Link caido
Hermano eres el mejor, serias mi dios si pones ese link de vuelta
link replaced
Namaste
Hello, thank you for the firmware, one question, when I extract the first 20 parts, there are 2 folders (AHMT and DHMT) with an rar archive, should I extract those archives as well ?
Than you
YES
Plaese
I want software for Daewoo Android tv 32 inch board no. TP.MT5510I.PB805 resolution 720p
NA
Sir, please Tp.mt5510i.pb805 software upload kare….
Hello , It’s Showing Data Error . When i try to extract .rar File. How can i solved this ? is this my issue or your files problem ?
what is the .bin name for TP.MT5510I.PB801
allupgrade_5510_8G_1G_refxx
which one should i download for my tv the board is “TP.MT5510I.PB801” and the name is “Paramount”
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
I have tried all the options listed and it is still stuck at boot screen
try to load the appropriate software
why i cant flash the software by usb port ..my problem is stuck on logo ..and i cant open the recovery mode and also cant able to flash the software using pendrive
https://www.kazmielecom.tech/how-to-load-firmware/
Do we need to download all 67 entries? is there anyway to download all at once?
not all. only one according to your tv/board requirement
TP.MT55101.PB801
necesito el software del tv ryder TP.MT5510I.PB801 si me podrian ayudar se estanca en logo de wisdom share.
not available for ryder. try to reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
I have videocon 32 inch smart TV and the board type is tp-mt5510i-pb801. Which firmware is latest one to install on my TV.
update not available
tp.mt5510i.pb801
Tengo una pantalla Mitsui 32 pulgadas que se queda freezed en el logo Android.
Funcionará con las 10 partes de 1366x768_8G_JVC?
First, try to reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
otherwise, load firmware but remote, logo and panel setting may change
شكرا
شكرا جدااااات
