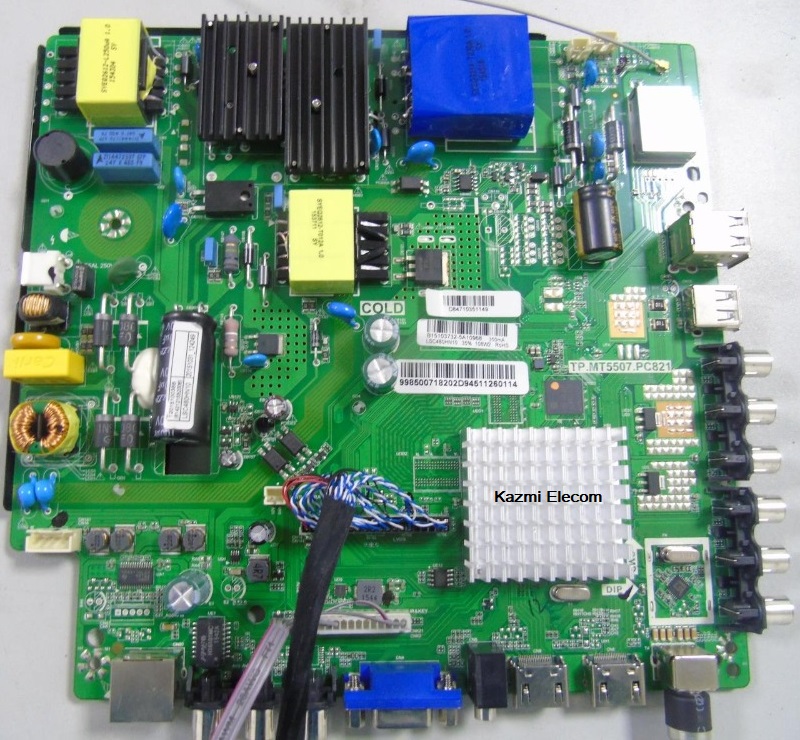

TP.MT5507.PC821 WIFI Smart Board
TP.MT5507.PC821 is a high-speed network driver board with an FHD resolution of 1920×1080. It is dedicated to 32″ to 55″ screens. TP_MT5507_PC821 has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MT5507-PC821 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and headphones.
TP.MT5507.PC821 also has a LAN/RJ45 Ethernet Connector interface port for the wired/cable internet network. TP MT5507 PC821 is a Combo high-speed Network triple-play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP.MT5507.PB801 android board is very good and the Response rate is very efficient. TP.MT5507.PC821 China smart network board has an Android 4.4.3 version.
Technical Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP.MT5507.PC821
Main Chipset:
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)
Operating System: Android 4.4
CPU: 4 Core A7
CPU Frequency: 1.5 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512 Mb/1GB DDR SD-Ram
Rom: 4Gb eMMC
Backlight Power/Voltage: 36V-140V/435W
Backlight Current: 400mA
Audio Output: 2x8w
Resolution: up to 1920×1080 (32” to 55″)
Panel Power: 12V
Power Input: 100-240V AC
Service Code: Menu+1147
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Copy the required file into the USB disk
- Connect the U-Disk to the TV
- Keep Pressing the Power/standby button and Switch on the TV
- Standby lights start flashing. wait to stop. Done
TP.MS5507.PC821 firmware for free download:
Dear Sir, please correct this line (Here are below some TP.MS358.PC821 firmware for free download) in the page of TP.MT5507.PC821 software free download.
Thank you.
Regards
Boro
ok, thanks
BHAI FILE YE CURRUPT HAI
konsi bhai? aur kese check ki hy?
As salaam o Alaikum sir i requir this software TP.MS358.PC821 1G / 8G Please Thanks,, my whatsApp , No,,0323-2360875
SIR,
50 INCH TV MAIN TP.MT5507.PC821 KA [SAMSUNG8G1GEND-B031] BOARD HAI KYA USME 4G WALA FIRMWARE CHALEGA.
NAHI CHALEGA TO PLEASE 8G WALA SOFTWARE PROVIDE KARA DAIN.
nai chale ga
plz tp.mt5507.pc821 ka [samsung8g1gend] board ka software avilable kara dein.
thanks.
Sir sabi files main se kon si chalegi
Tiene diagrama o circuito de la placa?
https://drive.google.com/file/d/1lmxzFZonPi5BUmJMZbnvK6tFqv2kS5Ck/view?usp=sharing
Sir ….
Mera name bhavesh he
Mera bord tp.mt5507.pc821 he usme toshiba brand ki emmc ic use ki he
Muje Toshiba ki 4gb vala emmc file chahiye plz help ……
not available
Tpmt 5507 pc 821 ka software chahiye bhizaan
download kar len
TP.MT5522.PC821
i am not getting to download i am getting error message
LINKS UPDATED
Sir samsung 55inch ka combo smart board he 32inch hd panel me laga rahe resulation problem ho rahi he ko na software dale please reply
panel resolution google se check karen. 32 ki mostly 1366×768 hoti hy
Assalam o alaikum sir mere pas yehi TP.MT5507.pc821 board hy backlught thik hy new b lgai hy ankh msr k band ho jati hy board pe 190 voltage akar jate hy or jo lighte serious ki hoi hy 109 voltage pe chalti hy tester pe kya kru reply me plzzzz
