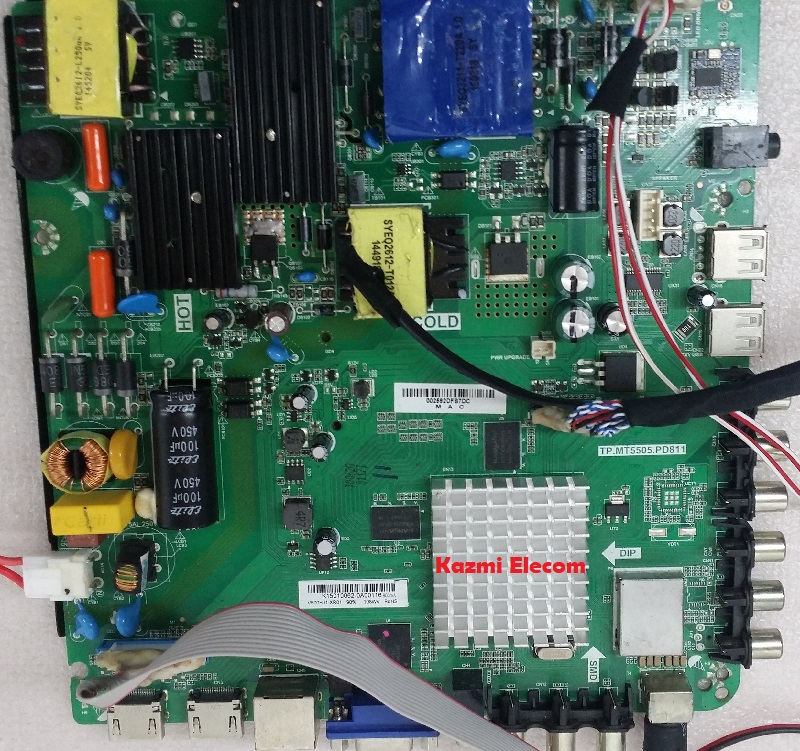

TP.MT5505.PD811 Smart Android Board
TP.MT5505.PD811 is a high-speed network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 44″ to 65″ screens. has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART and 3D features. TP-MT5505-PD811 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphones. TP.MT5505.PD811 has a LAN/RJ45 Ethernet Connector interface port also for the wired/cable internet network.
TP MT5505 PD811 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP_MT5505_PD811 android board are very good and the Response rate is very efficient. TP.MT5505.PD811 China smart network board has an Android 4.4 version.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP.MT5505.PD811
Main Chipset:
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)
Operating System: Android 4.4
CPU: 4 Core A7
CPU Frequency: 1.2 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512 Mb DDR SD-Ram
Rom: 4Gb eMMC
Backlight Current: 900mA
Audio Output: 2x8w
Resolution: up to 1920×1080 (44” to 65″)
Panel Power: 12V
Power Input: 100-240V AC
Service Code: Menu+1147
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss in result with uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Copy the required file into the USB disk
- Connect the U-Disk to the TV
- Switch on the TV
- Standby lights start flashing. wait to stop. Done
TP.MT5505.PD811 firmware for free download:
