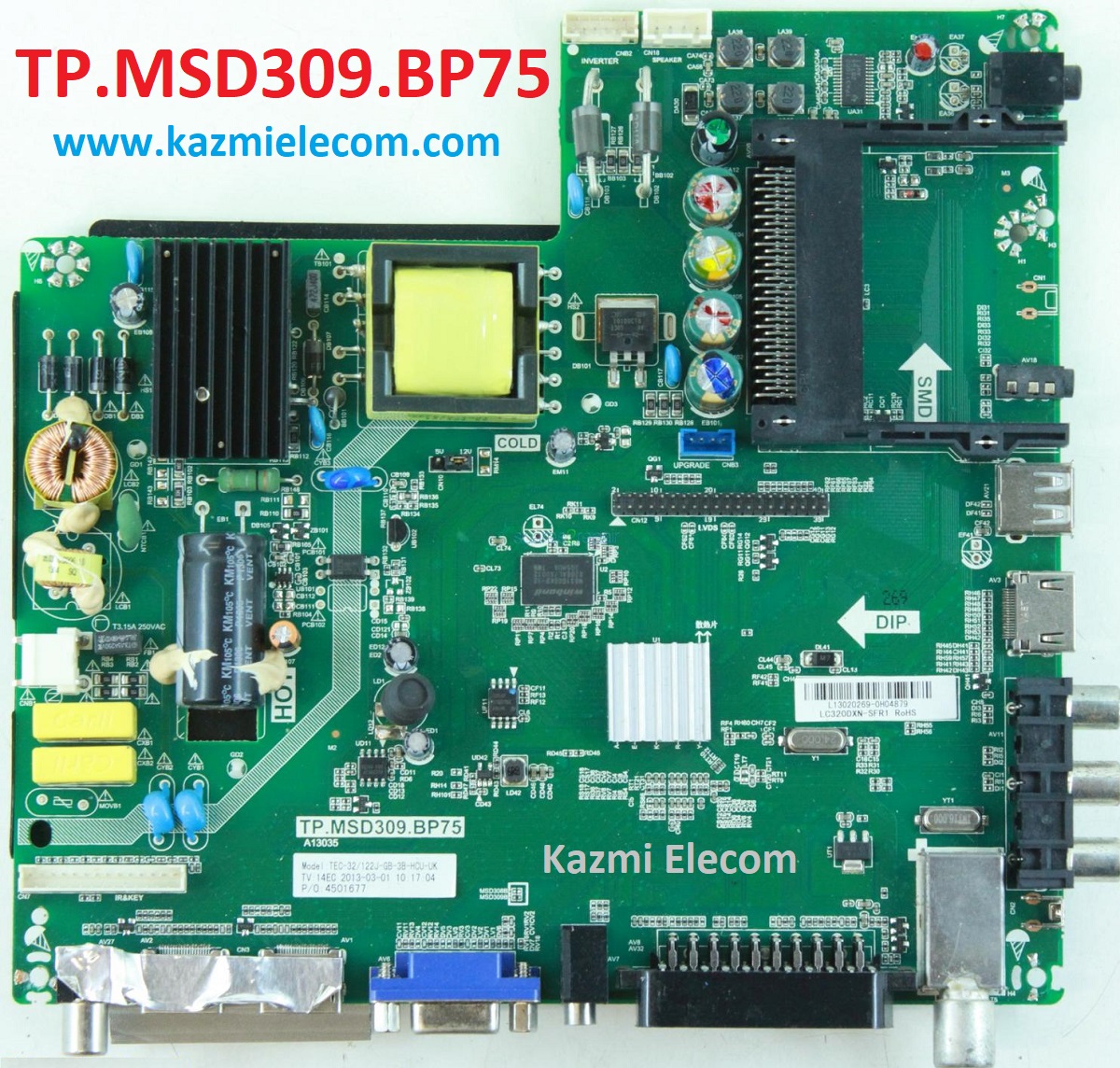

TP.MSD309.BP75 LED TV Board
TP.MSD309.BP75 is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. TP-MSD309-BP75 is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. It has all the connectivity ports as per user requirements as HDMI, AV, RF, VGA, and SCART. The firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: China Universal
Model: TP.MSD309.BP775
Main Chip: MSD309
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
Backlight Volt:
MAX Backlight Watt: 65w
Backlight Current:
Resolution: up to 1920×1080
Flash size: 4 MB
AUDIO:
Tuner:
Service Menu:
Source
Note:
The following Software is a backup dump and can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
TP.MSD309.BP75 Firmware Free Download :
