TP.MS880.PB801 Software Free Download

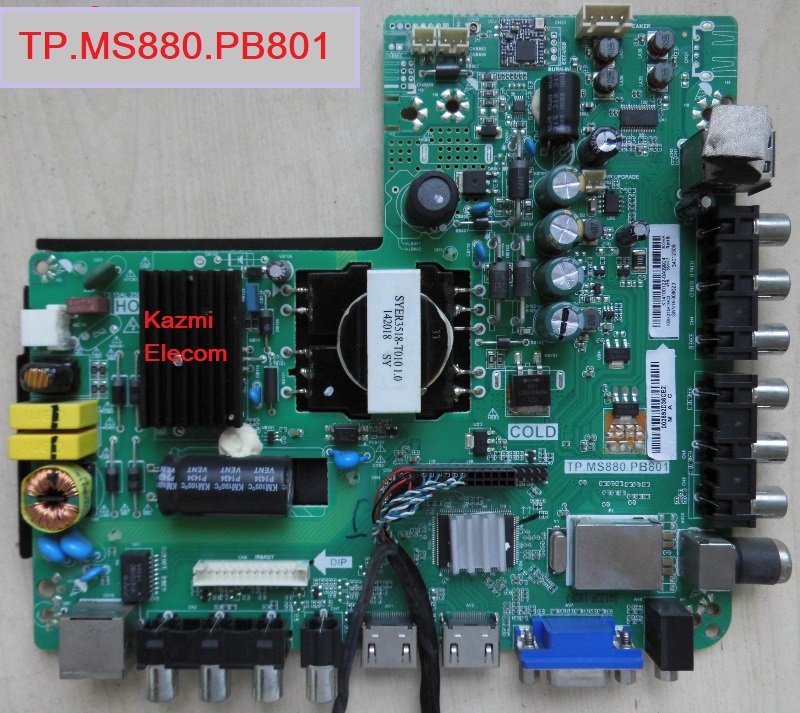

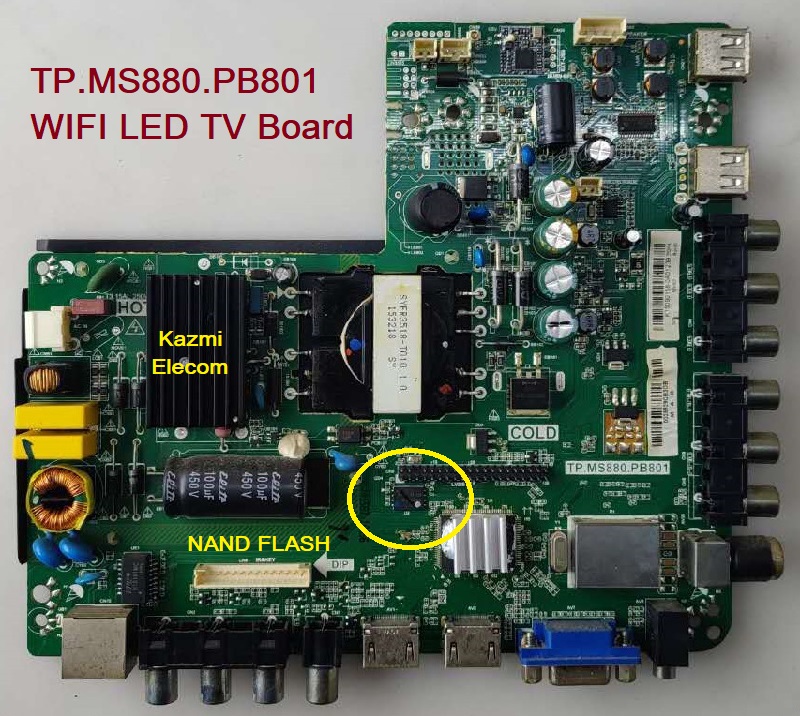

TP.MS880.PB801 WIFI LED TV Board

TP.MS880.PB801 is a simple WIFI Network LCD/LED TV motherboard. It is specially designed for the Asian markets and the Middle East as well. TP_MS880_PB801 can support 32-inch to 46-inch screen panels. It can support a Full High Definition resolution of 1920×1080. TP-MS880-PB801 has multiple input interface ports like Dual AV, dual HDMI ports, PC VGA Connector interface with Audio in port, RF Antenna Connector, etc.

TP.MS880.PB801 has an RJ45 Ethernet LAN connector for wired internet connectivity. TP MS880 PB801 is a combo board that has three-in-one modules built into a single piece of PCB like the Backlight inverter driver, ATV module, and Main Power Module.

General Specifications:

Model: TP.MS880.PB801

Panel Supported: 32-46-inch

Screen Resolution: Max 1920×1080 FHD

Backlight: 300mA

HDMI: Yes

USB: Yes

AV: Yes

PC VGA: Yes

Wifi: Builtin



RJ45: Yes

Power Input: 110-240V 50Hz

Power Consumption: 75W

Firmware Files:

• CS92641_ANHUIKONKA_KONKA_TP_MS880_PB801_ST3151A04_9_KK_Y367_REF50_AT_R16217_20150716_111734
• CS93448_ANHUIKONKA_KONKA_TP_MS880_PB801_LC320DXJ_SFE1_KK_Y367_REF50_AT_R14935_20150504_171451
• CS93497_ANHUIKONKA_KONKA_TP_MS880_PB801_KBI_430B1L01_KK_Y367_REF67_AT_R14939_20150504_175622

Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any damage or loss that results from loading or installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.MS880.PB801 Firmware for free download:

• TP-MS880-PB801-1366×768-KONKA-USB
• TP-MS880-PB801-1920×1080-KONKA-USB
