TP.MS6486.PC759 Firmware Free Download

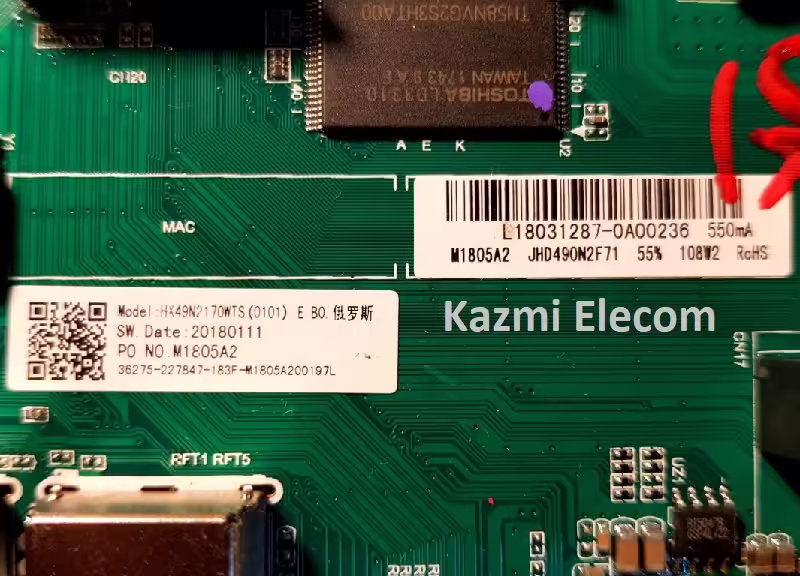

TP.MS6486.PC759 LED TV Board

TP.MS6486.PC759 is an FHD LED TV Smart Driver Board. Its maximum screen resolution is 1920×1080 Full HD.TP_MS6486_PC759 is a smart but not an Android board. It has triple HDMI Video Input ports to connect Full HD devices such as Gaming consoles, Blu-ray media players, and Set-Top-Boxes. This board has dual USB Input ports for Multimedia playback, connecting external Hard Disk drives, and software update functions. It has a VGA port for PC and laptop input for widescreen display. It has a built-in Wireless Connection. It has mini component inputs for analog devices. TP-MS6486-PC759 has the Special feature of Miracast functionality. TP MS6486 PC759 has dual-tuner input as a DVB-T/T2 (DVB-C, DVB-S2, DVB-T2) Tuner built in it.

Download Here

TP.MS6486.PC759 has built smart applications in its software such as YouTube, Netflex, etc. Users can not install or uninstall more applications of their own choice because this board is not an Android. TP-MS6486-PC759 is a three-in-one board that is also called a combo board. This board is built on a single printed circuit board on which the main power module circuit, the cable input tuners, and a led backlight driver inverter module circuits are combined. So, the users do not need anything else to complete the LED TV setup. Just install a single PCB motherboard and accessories, make connections, and the LED TV is ready. The sound quality is good and the picture quality of this board is very excellent.

TP.MS6486.PC759 board came into the market with different brands such as VU, Dexp, Condor, and Hisense. Its NAND flash backup files are given below for free download to recover the LED TVs that are not functional due to software malfunctioning. The RAM capacity of this board is 256 MB and the ROM capacity is 544 MB (NAND Flash TOSHIBA TH58NVG2S3HTA00).

General Information:

Board Model: TP.MS6486T.PB753

Resolution: 1920×1080

Audio Power: 2x8W (8 ohm)

Backlight Current: 550 mA

Backlight Power: 108W2

USB Ports: 2

HDMI Ports: 3

Scart: 1

RJ45: Yes

Analog Tuner: PAL, SECAM

Digital Tuner: DVB-T/T2/C/S/S2 (MPEG4 +HEVC)

Wifi: Yes

Mira-Cast: Yes

Satellite Input:

RAM: 256MB

Memory: NAND Flash

Nand Flash: TOSHIBA TH58NVG2S3HTA00

Power Rating: 220V~240V 50Hz

Power Consumption: 70Watt Max.

Firmware: NA

Firmware Type: Nand Backup Dump

Product User: Hisense, Condor, VU, Dexp

Technical Specifications:

Manufacturer: China
Display Type: 2K
Screen Resolution: Full HD (1920×1080)
SMART TV support: Yes
Digital tuner: Yes
Panel type: LED
Screen format: 16:9
Wi-Fi Connectivity: Yes
Inputs: AV, Scart, HDMI x3, USB x2, Ethernet (RJ-45), Wi-Fi 802.11ac, CI
Outputs: Optic
Sound system: 2×8 W
Dolby: Yes
Supported formats: MPG, MPEG, MPEG2-PS, MP4, MKV, AVI, ASF, FLV, MP3, JPEG, PNG, BMP
Operating system: Linux
Refresh rate: 60 Hz
Wireless data transmission: Miracast
Contrast Ratio: 3,000,000: 1
Response Time: 2ms
Color System: PAL, SECAM, NTSC
TV System: PAL / NTSC
Headphone Jack: Yes
RF Connectivity Input RF Input: 2
Component In (RGB Cable) Component / Y Pb Cb Pr Cr: 1
Supported App – YouTube: Yes
Supported App – Netflix: Yes
Operating System Present: Yes
Screen Mirroring: Yes

How to Write Nand Flash Backup:

Download the given TP.MS6486.PC759 Nand Flash backup shared in this post below
Remove the Nand Flash Memory from the board
First, save the backup with the Programming Tool
Write the Nand Flash data with a programmer
Resold it back. Done.

Note: The following TP.MS6486.PC759 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
