TP.MS6486.PB710 Firmware Free Download

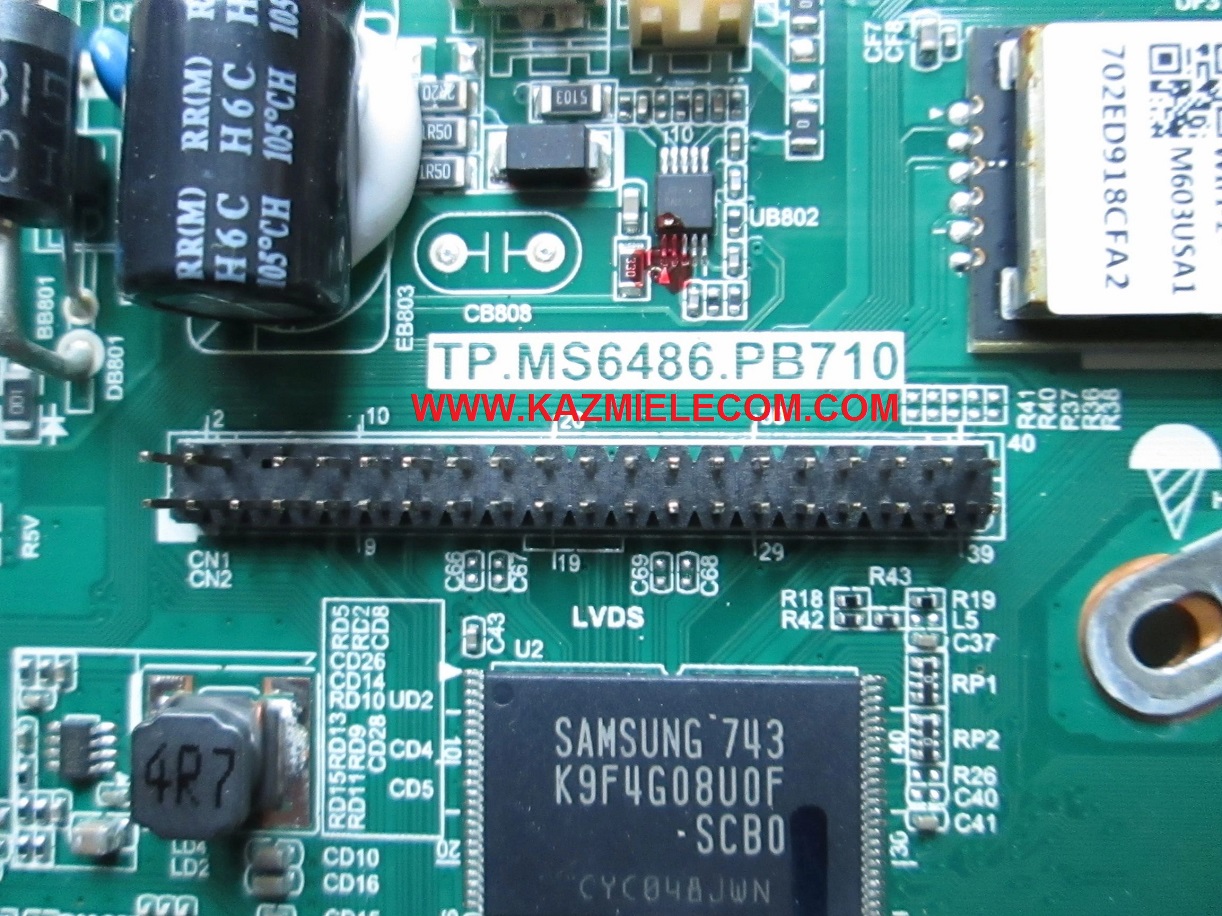

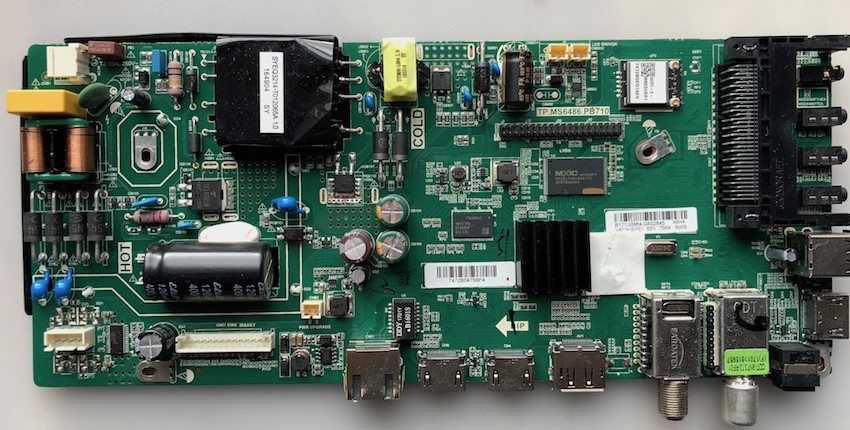

TP.MS6486.PB710 FHD LED TV Board

TP.MS6486.PB710 is an HD LED TV Driver Board with a screen resolution of 1366×768.TP_MS6486_PB710 also has the features of Freeview, Saorview, and HEVC (H.265 codec). It has three HDMI ports, two USB ports for Multimedia and software update functions, a VGA port for PC input, and a Wireless Connection. TP-MS6486-PB710 has the Special feature of Miracast functionality.

TP MS6486 PB710 has dual-tuner input as a DVB-T/T2 Tuner built in it.  TP-MS6486-PB710 is a combo board. TP.MS6486.PB710 firmware files are given below for free download.

Technical Specifications:

Board Model: TP.MS6486.PB710

Resolution: 1366×768

Audio Power: 2x10W (8 ohm)

Backlight: 500 mA

USB Ports: 2

HDMI Ports: 3

Scart: 1

RJ45: Yes

Analog Tuner: PAL, SECAM

Digital Tuner: DVB-T/T2/C/S/S2 (MPEG4 +HEVC)

Wifi: Yes

Mira-Cast: Yes

Satellite Input: Yes

Memory: NAND Flash

Power Rating: 220V~240V 50Hz

Power Consumption: 70Watt Max.

Firmware: allupgrade_6486_aes_SN51_50_U.bin

Firmware Type: USB Updateable Firmware

Product: Sharp

Firmware File:

CP212711_SN_HS_UMC_BLA_MSD6486_PB710A_512M_LSC320AN10_DVBS_DH1711_HK_G1_DOWN_NFX_UNF_V4.05_20170706_204214.tar.gz

Note: The firmware given below is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.MS6486.PB710 Firmware for free download:

• TP.MS6486.PB710-1366×768-Sharp-LC32CHG6242E-USB
