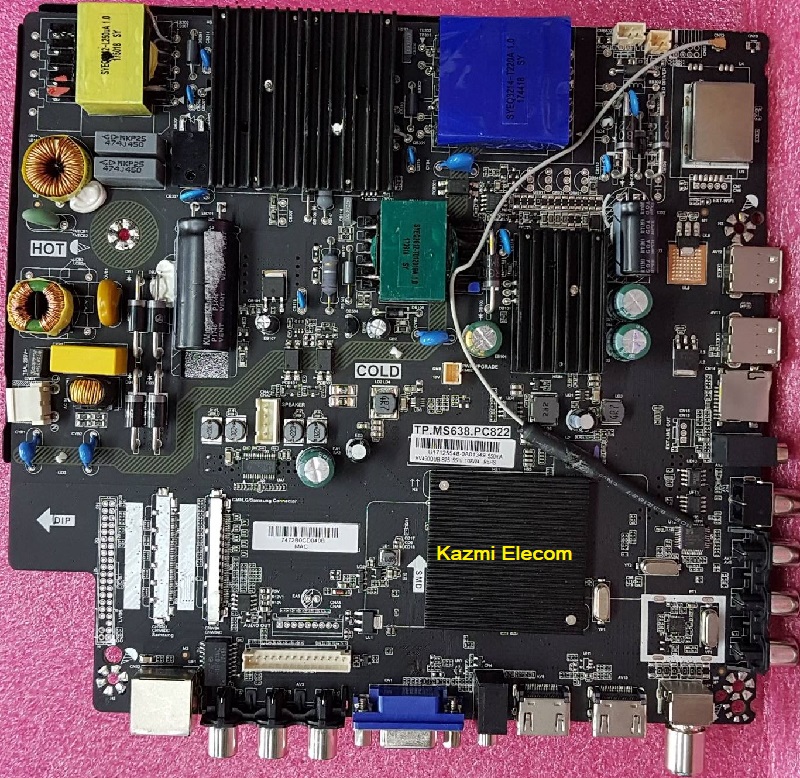

TP.MS638.PC822 Smart LED TV 4K Board

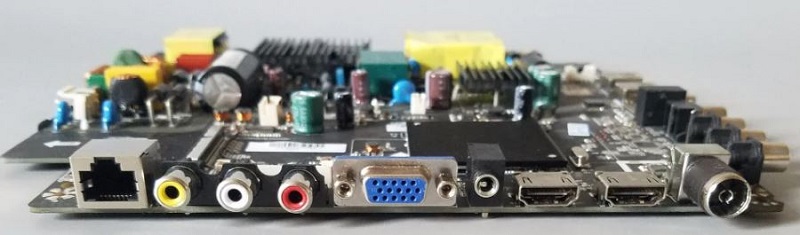

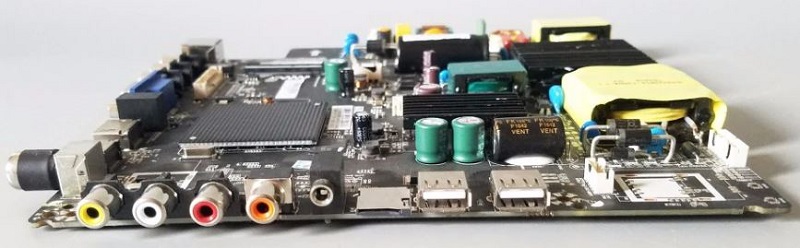

TP.MS638.PC822 is a three-in-one Intelligent 4K network drive board with a resolution of 3840×2160. It is dedicated to 60 and 120 Hz screens. TP-MS638-PC822 has a powerful wifi system. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. TP_MS638_PC822 is a 4K original quad-core Android smart Mainboard. TP MS638 PC822 has multiple Input interface ports like Dual USB, HDMI, AV, Earphone out, PC VGA interface, and wifi builtin with an RJ45 ethernet port for wired internet connection and smooth connectivity.
General Specifications:
Brand/Mark: China Universal Network Smart Triple Play Board
Main Board: TP.MS638.PC822
Main Chipset: MSD6A638JSM-003J
PANEL Type: TFT LCD
Panel Size: 42″-60″
Interface: Single/Dual LVDS,V-by-one(4K2K)
Max Resolution: 1920*1080,3840*2160(4K2K)
Panel Power: 12V
Function: ATV(PAL/NTSC/SECAM)/DTV(DTMB)
Aspect Ratio: 16:09
Audio Output Power: 2x10W(8Ω)
OS: Android 4.4
CPU: A53*2
CPU Frequency: 1.2 GHz
GPU: Mali720MP2*2
GPU Frequency: 450 MHz
Ram: 768 Mb
Rom: 4Gb/8Gb eMMC
Backlight: 60-180V 138W
Power Input: 100-280V AC
Service Code: Menu+1147
Note: Following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss in result with loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch video Click Here
Here is below some TP.MS638.PC822 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS638.PC822_China_8G_REF46_USB.part1 | Download |
| TP.MS638.PC822_China_8G_REF46_USB.part2 | Download | |
| TP.MS638.PC822_China_8G_REF46_USB.part3 | Download | |
| TP.MS638.PC822_China_8G_REF46_USB.part4 | Download | |
| TP.MS638.PC822_China_8G_REF46_USB.part5 | Download | |
| 2 | TP.MS638.PC822_3840x2160_4G_REF55.part1 | Download |
| TP.MS638.PC822_3840x2160_4G_REF55.part2 | Download | |
| TP.MS638.PC822_3840x2160_4G_REF55.part3 | Download | |
| TP.MS638.PC822_3840x2160_4G_REF55.part4 | Download | |
| TP.MS638.PC822_3840x2160_4G_REF55.part5 | Download | |
| 3 | TP.MS638.PC822_3840x2160_1G_8G_REF66.part1 | Download |
| TP.MS638.PC822_3840x2160_1G_8G_REF66.part2 | Download | |
| TP.MS638.PC822_3840x2160_1G_8G_REF66.part3 | Download | |
| TP.MS638.PC822_3840x2160_1G_8G_REF66.part4 | Download | |
| TP.MS638.PC822_3840x2160_1G_8G_REF66.part5 | Download | |
| 4 | TP.MS638.PC822_3840x2160_8G_Mitashi 40_Ref35.part01 | Download |
| TP.MS638.PC822_3840x2160_8G_Mitashi 40_Ref35.part02 | Download | |
| 5 | TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref58.part1 | Download |
| TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref58.part2 | Download | |
| TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref58.part3 | Download | |
| TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref58.part4 | Download | |
| TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref58.part5 | Download | |
| 6 | TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref65.part01 | Download |
| TP.MS638.PC822_3840x2160_8G_Mitashi 50_Ref65.part02 | Download | |
| 7 | TP.MS638.PC822_3840x2160_Aconatic AN-49DSU800.part1 | Download |
| TP.MS638.PC822_3840x2160_Aconatic AN-49DSU800.part2 | Download | |
| TP.MS638.PC822_3840x2160_Aconatic AN-49DSU800.part3 | Download | |
| TP.MS638.PC822_3840x2160_Aconatic AN-49DSU800.part4 | Download | |
| TP.MS638.PC822_3840x2160_Aconatic AN-49DSU800.part5 | Download | |
| 8 | TP.MS638.PC822_3840X2160_4G_REF56_CONTINENTAL.part1 | Download |
| TP.MS638.PC822_3840X2160_4G_REF56_CONTINENTAL.part2 | Download | |
| TP.MS638.PC822_3840X2160_4G_REF56_CONTINENTAL.part3 | Download |
allupgrade_msd638_8G_ref46.bin
TP.MS638.PC822_China_8G_REF46_USB\CS151470_JAV_TP_MS638_PC822_CHINA_IR_TYPE_KA94_4K_2K_LOGO_CVTE_DEFAULT_8G_REF46_cce49def_20160315_223417
BONJOUR ,
Bonjour est ce la carte mere TP.MS638.PC822 et t ‘elle disponible
prier de ma donnée le prix et la disponibilite .
cordialement
available in market. search google, aliexpress etc
salam azhar bhi jan ksy hn bhi jan i kon 55 ka softwere chya msd638.pc822 ap ke site sy sb download ker k dakh leya kohi be ni ho reha phr secour CRT sy print informisn le to pata chala k is ma allupgrade_msd683_4G_ref56.bin
sorry dear not available allupgrade_msd683_4G_ref56.bin
Dear sir Tp.ms638.pc822 changhong ruba smart lady software require
not available in chanhong ruba brand
hi sir.
pls. help software download nahi hota he
mene 4k ultra hd me WPS download kiya tab se ye problem aa rahi he to tv ON hoke Off ho jata he barbar. pls send software
MY card No. TP.MS638.PC822
KORYO make Ultra HD 4k
BD_TP_MS638_PC822B ( allupgrade_msd638_4G_ref60.bin
Salam e kum
dear sir i want latest software for my 60″ led kindly let me know if you have , or if already upload in website kindly share with me link, i also find model on search option but its missing letter B like 822,
android version is kit kat 4.4.4 which i want to upgrade thank you so much
Chinese boards have the final version installed in it. so, no need to update
How i may know ref rate of my mboard
ref rate is for screen not board. check panel datasheet
Hi Kazmie. I just bought a bruhm window share 58 inch tv, it comes with an android 4.4.4 which is limited in its capacity, the os is quite annoying. Is it possible to update to a much recent android tv os like android 8. Please if yes can you post a link and if no can you state reason and if it will still be possible later.
If it’s not possible. I might have to get rid of the tv as I am not impressed with the firmware. Thank you and God bless.
can not update. change board for higher android version
Kazmi bhai 4G links are not working. Showing file not found pls update
fixed
Hello sir i have ikon 55 curved smart tv. its stuck on ikon logo. can u plz help me to fix it.
Ikon 4K Ultra HD Curved Smart TV IKE55DUS 55″
Can u send me the link for the software. Plz. It will be a great help. I can pay u for it. My whatsapp Number. +94764260642
first try to hard reset, otherwise load firmware
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Hello sir i tired to do hard rest but didn’t work can u plz send me the link for the firmware. This is my Display model ( 55JP1611061000700719). It would be a great. help
Hi and thanks for your efforts. I have rest my tv and Netflix gone. My board is TP.MS638.PC822B will the above software restore the TV to as was purchased? Thanks
Hi pls update link tp.ms638.pc 822 for 4G ROM.It is showing file not found Thanks
fixed
AsSalam u alikum azahr bhai kase hen ap bhai jan ek swal tha k mere pas ek tv he jis ka panel 55 inch ka curved he or us m yehi board he tp.ms638.pc822
i think board khrab ho gayi he to mane koi or board lagani he jis ka model he tp.mt5522.pc822 but us par koi software he jo curved led ka nahi he to center m ek barik si line hoti he koi Software btaen jo m is board par laga sakon curved tv ka.. thanks
w.salam dear panel resolution check karen us k mutabiq software load karen
Hello sir.. i have VU brand 50 inch android led tv .. that one stuck in burn mode.. when turn on tv its show black,red.green.blue,white color display. In this tv mother board was TP.MS638.PC822 PLZ CAN U PROVID ME SOLUTION FOR THIS PROBLEM… THNX IN ADVANCE
try to exit from burn mode, otherwise, load firmware, or maybe mainboard fault
bạn có firm nay không?
allupgrade_msd638_8G_1G_ref60.bin
rename the REF00 to sos and load firmware but remote and logo may change
tôi đã làm xong nhưng điều khiển không được. Hiện logo SHOWNIC . Giờ tôi nên sử dụng điều khiển nào?
HIiii thank you
I have the same board on
WANSA TV with WANSA remote (wud55h7762sn)
i uploaded aconatic software and remote is not working
do you have the original software, I cannot find it really anyware
use universal remote
which Android version this will give me and do you have wansa platform on same motherboard
older version i.e 4g with 4.4 and the new version with 8gb maybe 5.0. not available in wansa. you should try to hard reset instead of loading firmware
good
I have red led only
When connect to RT809H serial showing “AC_ON“ and stops there
Thanks
hardware issue maybe
Yes probably. I have 3 boards with the same issue thoughts u may have a solution
Thanks anyway
How to use FHD 1920*1080 panel on this. Pls help
hello sir plz upload nikai uhd50sledt board model no ms638.pc822
Good
very good
pour resoudre ,probleme du double image,tv nikai 55 puces
not understand. screen split into two or ghost with picture?
please how do I upgrade 4.4.4 kikat from BD_TP_MS638_PC822B allupgrade_msd638_4G_ref60.bin to a higher android version?
not possible. change mainboard
Greetings, is it possible to upgrade android version 4.4.4?
My tv is IKON, 50 inch, Board type BD TP MS638 PC822B
No. Change the board for latest android version
Hello can I get TP.MS638.PC822_1G_8G Ref55 what I saw is 4G ROM and it couldn’t load.
All the other refs I tried divided the screen.
Also if you can provide 8G ROM ref 55 dump or USB I will be grateful.
Thanks
First, try to reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Otherwise, load firmware:
rename the file to sos like: TP.MS638.PC822_1G_8G_sos
if you install another brand firmware then remote and logo may change
I’ve added sos to the filename, loaded almost all the files you have for 8G but i couldn’t get the right file to work on the tv. all i got was a ghost image or split screen.
I’ve tried ref46, ref66, ref35, ref58, ref65 and so on, all i got was ghost image or split screen.
can you please upload ref55 for 8G? that is the firmware that will work for my screen
ghost image can be adjusted from the service menu. ref55 not available
Good day sir,
Sir please I would like you to make a video if possible with English language in details how to backup emmc file from board to USB using the HDMI port or through VGA port using RT809H Programmer also how to enable UART for those that haven’t been turned on before. I have tried doing it but can’t get pass where I will have to input the copy command, even when I hold down the shift key and power the board. I would really appreciate if you can help out with this.
Thanks
i will try
Good day sir,
Sir how are you doing? Hope fine? Sir this is just a reminder concerning the video I asked you to make on how to backup emmc file from the board to USB using the HDMI or VGA port using RT809H programmer also how to enable UART.
Thanks still expecting
I am fine. I remember it. I will make as soon as possible.
Good evening Sir, how are you doing? Hope fine?.
I will start by saying thank you. Thank you for all your efforts you have put in your site. I know on several occasions I have asked for firmware links and you provided it free of charge. Not everyone will do that or share their knowledge freely but you are one of a kind. Thanks once again.
I know you are very busy that’s why you’ve not had time to make the video I asked for. I will keep reminding you sir. Please don’t get angry with me sir. I really enjoy your teaching, if I don’t enjoy your teaching I will not ask for the video.
Sir please try and find time to teach us more.
Thanks sir, and do have a wonderful day ahead.
