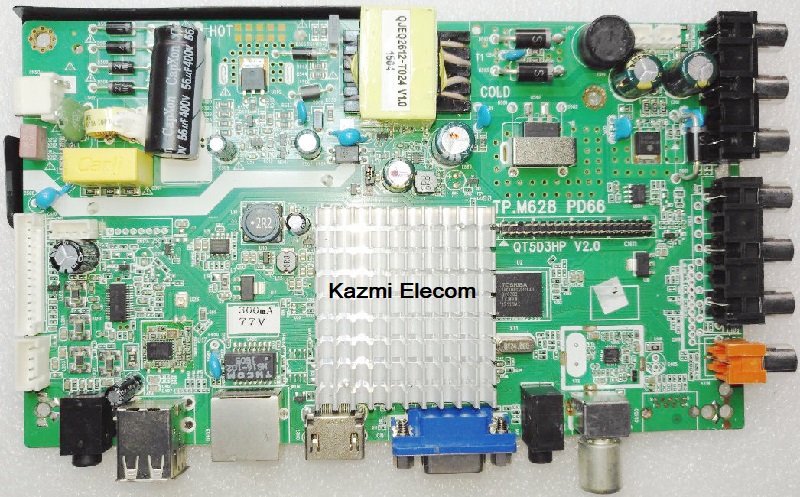

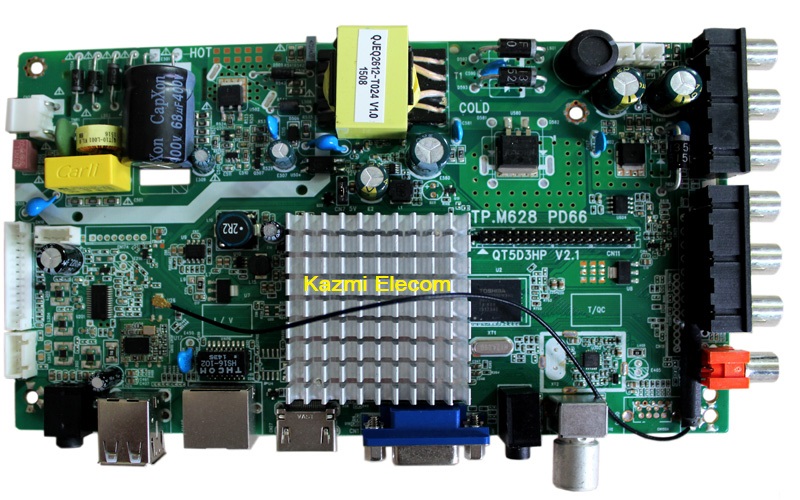

TP.MS628 PD66 QT5D3HP Android Board
TP.MS628 PD66 QT5D3HP is Ali Cloud 4 Core network drive Android wifi motherboard with the supported resolution of 1920×1080. TP_MS628_PD66_QT5D3HP has a powerful wireless network wifi system. Smart TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS628-PD66 can support up to 28″ to 32″ screens. TP MS628 PD66 QT5D3HP has multiple input ports as HDMI, Dual USB, VGA interface, Dual AV and RJ45 Ethernet connector for wired internet connectivity.
Its USB interface is used for installing software, and firmware, and playing multimedia files. It can also support Earphone output. TP.MS628 PD66 is a Full HD-supported LCD LED TV controller board with a maximum supported resolution of 1920×1080. It can support 28 to 48-inch HD and FHD panel screens. The main processor is made by Mstar and its graphics are also good. TP.MS628 PD66 firmware files are given below for the technician’s support.
General Specifications:
Model Name: QT5D3HP TP.MS628 PD66 ( Quad-Core Android SMART TV)
Main Chipset: MSTAR 6A628
Resolution: 1920×1080
Screen Supported: ELED/DLED integrated backlight shell, single and dual-port LVDS interface
Screen Size: 28-32 inch
Aspect Ratio: 16:09
OS Version: Android 4.4
CPU: Quad-Core CPU
CPU Frequency: 1.5 GHz
GPU: Mali-450MP2
GPU Frequency: 400MHz
Ram: 512Mb DDR3
Rom: 4 GB eMMC (supports external plug USB32G)
Backlight Power: 25w
Audio Power Output: 2x8w (8ohm)
System: PAL/SECAM/NTSC
WIFI Antenna: Yes (Built-in)
PC Compatible: Yes (via HDMI/VGA)
Power Rating: 100V~240V 50Hz/60Hz
Power Consumption: 45Watt
Service Mode:
Press the remote control: ” Menu 1 1 4 7 ” or ” Channel (signal source) 2580 ” a few boards as ” Menu 2580 ”
Caution:
All the pictures and specification details related to TP.MS628 PD66 QT5D3HP in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.
Pros:
There are many advantages to installing the given TP.MS628 PD66 QT5D3HP USB software or eMMC backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given USB software or EMMC backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given TP.MS628 PD66 QT5D3HP USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
TP.MS628 PD66 QT5D3HP Android Version Upgrade:
Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
TP.MS628 PD66 QT5D3HP Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.
How to Download:
Download all parts of your required resolution and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MS628 PD66 QT5D3HP Firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS628 PD66_QT5D3HP_1366x768_USB.part1 | Download |
| TP.MS628 PD66_QT5D3HP_1366x768_USB.part2 | Download | |
| TP.MS628 PD66_QT5D3HP_1366x768_USB.part3 | Download | |
| TP.MS628 PD66_QT5D3HP_1366x768_USB.part4 | Download | |
| TP.MS628 PD66_QT5D3HP_1366x768_USB.part5 | Download |
