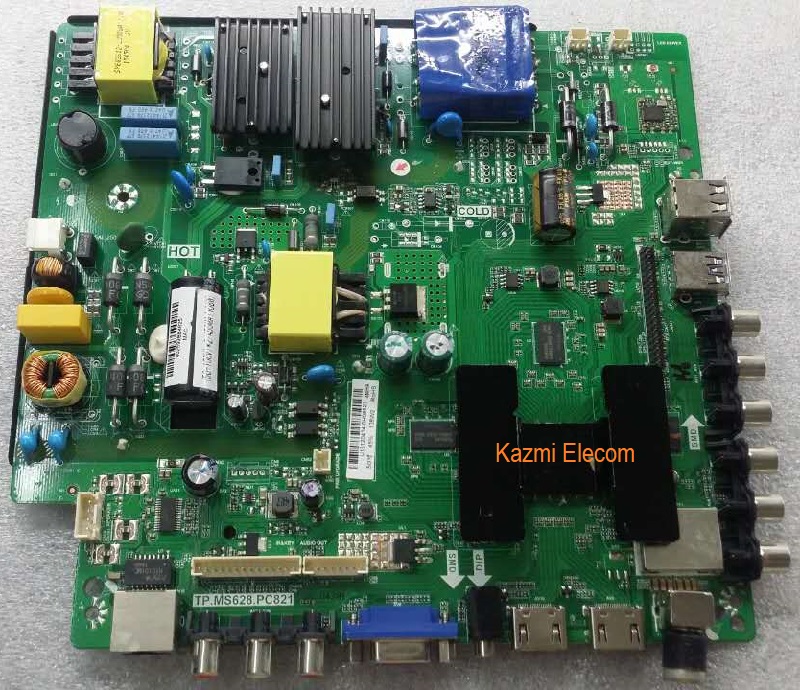

TP.MS628.PC821 4K LED Driver Board
TP.MS628.PC821 is an Intelligent 4K network drive Android quad-core motherboard with a resolution of 3840×2160. It is dedicated to 60 and 120 Hz screens. It has a powerful wireless network wifi system. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. TP_MS628_PC821 can support up to 42″ to 65″ screens.
TP.MS628.PC821 has multiple Input interface ports like Dual USB, HDMI, AV, Earphone out, PC VGA interface, and wifi built-in with an RJ45 Ethernet port for wired internet connection and smooth connectivity. TP.MS628.PC821 firmware file is given below for the technician’s support.
General Specifications:
Model Name: TP.MS628.PC821 (Smart UHD With Android Platform)
Size: 20CM*21CM* thickness 1.5CM
Main Chipset:
Resolution: 3840*2160
Aspect Ratio: 16:09
OS Version: Android 4.4
CPU: Quad-Core
Ram: 1GB
Rom: 4 GB
Audio Power Output: 20w (10×2)
System: PAL/NTSC
WIFI Antenna: Yes (Built-in)
Mirror: Yes
PC Compatible: Yes (via HDMI/VGA)
TV Tuner Input: 1
LED Backlight: 50V-100V 450MA 108W
Screen Voltage: 12v
Power Rating: 100V~240V 50Hz/60Hz
Power Consumption: 150Watt
Service Mode:
Press the remote control: ” Menu 1 1 4 7 ” or ” Channel (signal source) 2580 ” a few boards as ” Menu 2580 ”
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MS628.PC821 Firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS628.PC821-3840x2160-Samsung-USB.part1 | Download |
| TP.MS628.PC821-3840x2160-Samsung-USB.part2 | Download | |
| 2 | TP.MS628.PC821-3840x2160-4G-NINTUS-REF45.part1 | Download |
| TP.MS628.PC821-3840x2160-4G-NINTUS-REF45.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
