TP.MS628.PB803 Software Free Download

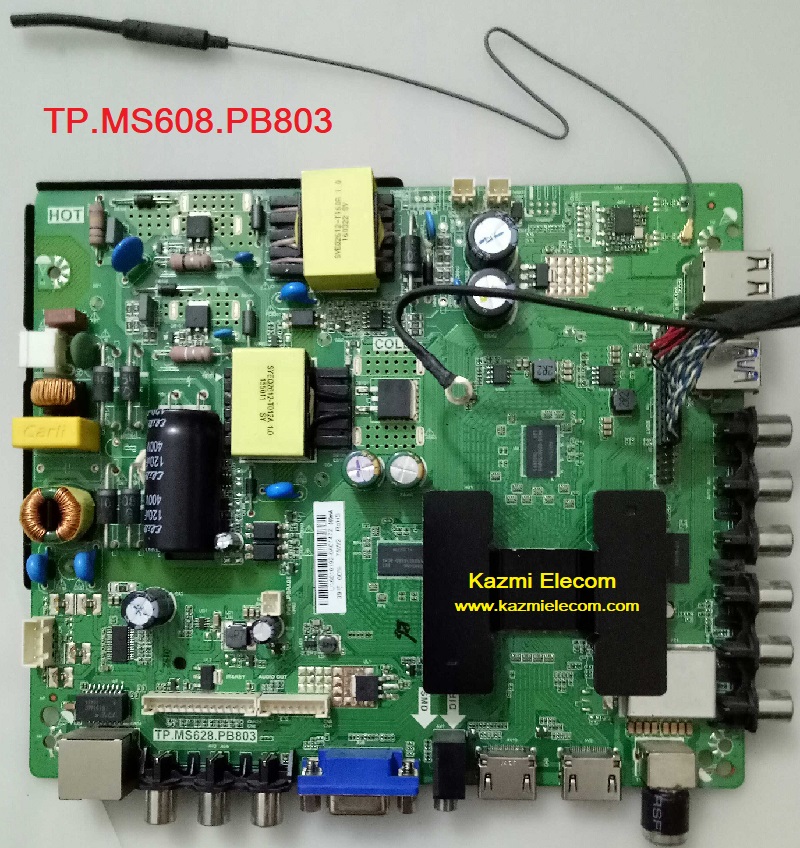

TP.MS628.PB803 FHD LED Driver Board

TP.MS628.PB803 is an Intelligent network drive Android wifi motherboard with a supported resolution of 1920×1080. TP_MS628_PB803 has a powerful wireless network wifi system. Smart TV With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS628-PB803 can support up to 42″ to 65″ screens. TP MS628 PB803 has multiple input ports as Dual HDMI, Dual USB, VGA interface, Dual AV, and RJ45 Ethernet connector for wired internet connectivity.

TP.MS628.PB803 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T) signals. The TP.MS628.PB803 USB Upgrade Firmware file is given below for the Technician’s support.

General Specifications:

Model Name: TP.MS628.PB803

Size: 20CM*21CM* thickness 1.5CM

Main Chipset: MSD6A628VXM-Z1-ST

Resolution: 1920×1080

Aspect Ratio: 16:09

OS Version: Android 4.4

CPU: ARM Cortex A7 Quad-Core CPU

CPU Frequency: 1G Hz

GPU: Quad-Core Mali-450MP2

GPU Frequency: 400MHz

Ram: 1GB DDR

Rom: 4 GB eMMC

Panel Power: 5v, 12v

Backlight Voltage: 30V to 140V

Backlight Power: 45w

Audio Power Output: 2x8w (8ohm)

System: PAL/NTSC

WIFI Antenna: Yes (Built-in)

Mirror: Yes

PC Compatible: Yes (via HDMI/VGA)

TV Tuner Input: 1 (ATV, DTMB)

Power Rating: 100V~240V 50Hz/60Hz

Power Consumption: 110Watt

Service Mode:

Press the remote control: ” Menu 1 1 4 7 ” or ” Channel (signal source) 2580 ” a few boards as ” Menu 2580 ”

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

TP.MS628.PB803 Firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	MS628.PB803_1366x768_REF60_USB.part1	Download
	MS628.PB803_1366x768_REF60_USB.part2	Download
2	MS628.PB803_1920x1080_REF60_USB.part01	Download
	MS628.PB803_1920x1080_REF60_USB.part02	Download

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
