TP.MS608.P83 Software Free Download

kazmielecom 54 Comments 20,287 Views

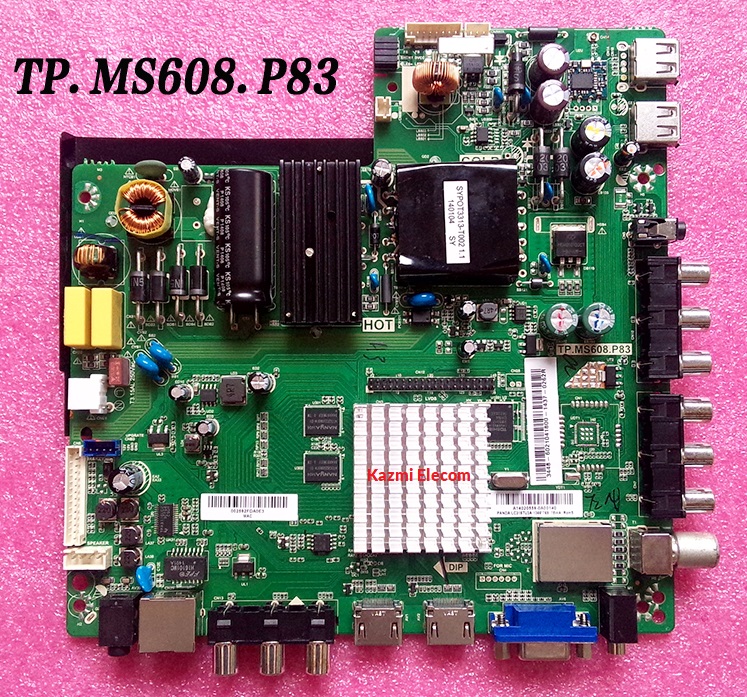

TP.MS608.P83 Smart LED TV Board

TP.MS608.P83 is designed for a Network function Analog TV Board which is suitable for Asian Markets and the Middle East as well. It supports the screen size of 26″ to 47″. This is a three-in-one motherboard integration of the main power module LED Backlight Driver/Inverter module and TV Module in a single piece of a motherboard.

Download Here

It is best with its interfaces like Dual AV/Component, Dual HDMI input, Dual USB interface slot that can be used for Software upgrade and multimedia playback, PC Input with audio and Headphone jack, and Rj45 network interface that supports 10/100M auto-identification and DHCP. TP.MS608.P83 supports ATV and DTV with the standard DT supports.

Tp.ms608.P83_Software

General Specifications:

Brand/Mark: China Universal Smart WIFI Network Drive Board

Main Board: TP.MS608.P83

Main Chipset: MSD6A608HTAB

Panel Volt: 5v/12v

Audio Output Power: 2x8w(8Ohm)

OS: Android 4.4

CPU: Dual Core

Size: 18.5 * 21 cm

Back Light V/C : 90v-100v 520mA 45w

Ram: 512 Mb DDR

Rom: 4 Gb eMMC

Resolution: upto 1920×1080

Screen Size Supported: 26″ to 47″

Power AC Input: 100~240V/75W

Service Code: 1147

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

How to Update:

  1. Download all parts and then extract any one of them and copy the upgrade file into USB Disk
  2. Plug the USB Disk into the USB Interface Port of the Main TV Card
  3. Press the Volume+ button When powering on the TV
  4. Wait for the LED light to flash
  5. If the LED light starts flashing, it means the TV is entered in Upgrade Mode and Upgrade screen will appear
  6. Within in 2 minutes, the process will be done and the tv will go to standby mode.

TP.MS608.P83 firmware for free download:

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1TP.MS608.P83_1366x768_General.part1Download
TP.MS608.P83_1366x768_General.part2Download
2TP.MS608.P83_1920x1080_General.part1Download
TP.MS608.P83_1920x1080_General.part2Download
3TP.MS608.P83_1920x1080_General_3D.part1Download
TP.MS608.P83_1920x1080_General_3D.part2Download
4TP.MS608.P83_Sony-32W670.part1Download
TP.MS608.P83_Sony-32W670.part2Download
TP.MS608.P83_Sony-32W670.part3Download
5TP.MS608.P83_1920x1080_Eurostar T40SLED-A14.part1Download
TP.MS608.P83_1920x1080_Eurostar T40SLED-A14.part2Download
6TP.MS608.P83_1366x768_Samsung 32F6400_Tested.part01Download
TP.MS608.P83_1366x768_Samsung 32F6400_Tested.part02Download
TP.MS608.P83_1366x768_Samsung 32F6400_Tested.part03Download
TP.MS608.P83_1366x768_Samsung 32F6400_Tested.part04Download
TP.MS608.P83_1366x768_Samsung 32F6400_Tested.part05Download
7TP.MS608.P83_1366x768_Samsung 40F6400_Tested.part01Download
TP.MS608.P83_1366x768_Samsung 40F6400_Tested.part02Download
TP.MS608.P83_1366x768_Samsung 40F6400_Tested.part03Download
TP.MS608.P83_1366x768_Samsung 40F6400_Tested.part04Download
TP.MS608.P83_1366x768_Samsung 40F6400_Tested.part05Download
8TP.MS608.P83_1920x1080_Samsung 40F6400_3D_Tested.part01Download
TP.MS608.P83_1920x1080_Samsung 40F6400_3D_Tested.part02Download
TP.MS608.P83_1920x1080_Samsung 40F6400_3D_Tested.part03Download
TP.MS608.P83_1920x1080_Samsung 40F6400_3D_Tested.part04Download
TP.MS608.P83_1920x1080_Samsung 40F6400_3D_Tested.part05Download
9T.MS608.P83_1920x1080_STARLIGHT 39E8100.part1Download
T.MS608.P83_1920x1080_STARLIGHT 39E8100.part2Download
T.MS608.P83_1920x1080_STARLIGHT 39E8100.part3Download
T.MS608.P83_1920x1080_STARLIGHT 39E8100.part4Download
T.MS608.P83_1920x1080_STARLIGHT 39E8100.part5Download
10TP.MS608.P83_1366x768_Eurostar T32SLED-A14.part1Download
TP.MS608.P83_1366x768_Eurostar T32SLED-A14.part2Download
TP.MS608.P83_1366x768_Eurostar T32SLED-A14.part3Download
TP.MS608.P83_1366x768_Eurostar T32SLED-A14.part4Download
TP.MS608.P83_1366x768_Eurostar T32SLED-A14.part5Download
11TP.MS608.P83_1366x768_Samsung UA32F8000A.part01Download
TP.MS608.P83_1366x768_Samsung UA32F8000A.part02Download
TP.MS608.P83_1366x768_Samsung UA32F8000A.part03Download
TP.MS608.P83_1366x768_Samsung UA32F8000A.part04Download
TP.MS608.P83_1366x768_Samsung UA32F8000A.part05Download
12TP.MS608.P83_1366x768_Samsung UE32F6800.part01Download
TP.MS608.P83_1366x768_Samsung UE32F6800.part02Download
TP.MS608.P83_1366x768_Samsung UE32F6800.part03Download
TP.MS608.P83_1366x768_Samsung UE32F6800.part04Download
TP.MS608.P83_1366x768_Samsung UE32F6800.part05Download
13TP.MS608.P83_1366x768_General_XINGYUN.part01Download
TP.MS608.P83_1366x768_General_XINGYUN.part02Download
TP.MS608.P83_1366x768_General_XINGYUN.part03Download
TP.MS608.P83_1366x768_General_XINGYUN.part04Download
TP.MS608.P83_1366x768_General_XINGYUN.part05Download
14TP.MS608.P83_1920x1080_General_XINGYUN.part1Download
TP.MS608.P83_1920x1080_General_XINGYUN.part2Download
TP.MS608.P83_1920x1080_General_XINGYUN.part3Download
TP.MS608.P83_1920x1080_General_XINGYUN.part4Download
TP.MS608.P83_1920x1080_General_XINGYUN.part5Download
15TP.MS608.P83_1366x768_PANDA.part01Download
TP.MS608.P83_1366x768_PANDA.part02Download
16TP.MS608.P83_1366x768_WEIBO HAILRE.part01Download
TP.MS608.P83_1366x768_WEIBO HAILRE.part02Download
TP.MS608.P83_1366x768_WEIBO HAILRE.part03Download
TP.MS608.P83_1366x768_WEIBO HAILRE.part04Download
TP.MS608.P83_1366x768_WEIBO HAILRE.part05Download
17TP.MS608.P83_1366x768_WEIBO HUALING.part01Download
TP.MS608.P83_1366x768_WEIBO HUALING.part02Download
TP.MS608.P83_1366x768_WEIBO HUALING.part03Download
TP.MS608.P83_1366x768_WEIBO HUALING.part04Download
TP.MS608.P83_1366x768_WEIBO HUALING.part05Download
18TP.MS608.P83_1920x1080_PANDA.part01Download
TP.MS608.P83_1920x1080_PANDA.part02Download
TP.MS608.P83_1920x1080_PANDA.part03Download
TP.MS608.P83_1920x1080_PANDA.part04Download
TP.MS608.P83_1920x1080_PANDA.part05Download
19TP.MS608.P83_1920x1080_SANSUI.part01Download
TP.MS608.P83_1920x1080_SANSUI.part02Download
TP.MS608.P83_1920x1080_SANSUI.part03Download
TP.MS608.P83_1920x1080_SANSUI.part04Download
TP.MS608.P83_1920x1080_SANSUI.part05Download
20TP.MS608.P83_3840x2160_WEIBO HUALING.part01Download
TP.MS608.P83_3840x2160_WEIBO HUALING.part02Download
TP.MS608.P83_3840x2160_WEIBO HUALING.part03Download
TP.MS608.P83_3840x2160_WEIBO HUALING.part04Download
TP.MS608.P83_3840x2160_WEIBO HUALING.part05Download
21TP.MS608.P83_1920x1080_Sony KDL-40X9000_Tested.part01Download
TP.MS608.P83_1920x1080_Sony KDL-40X9000_Tested.part02Download
TP.MS608.P83_1920x1080_Sony KDL-40X9000_Tested.part03Download
TP.MS608.P83_1920x1080_Sony KDL-40X9000_Tested.part04Download
TP.MS608.P83_1920x1080_Sony KDL-40X9000_Tested.part05Download

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
