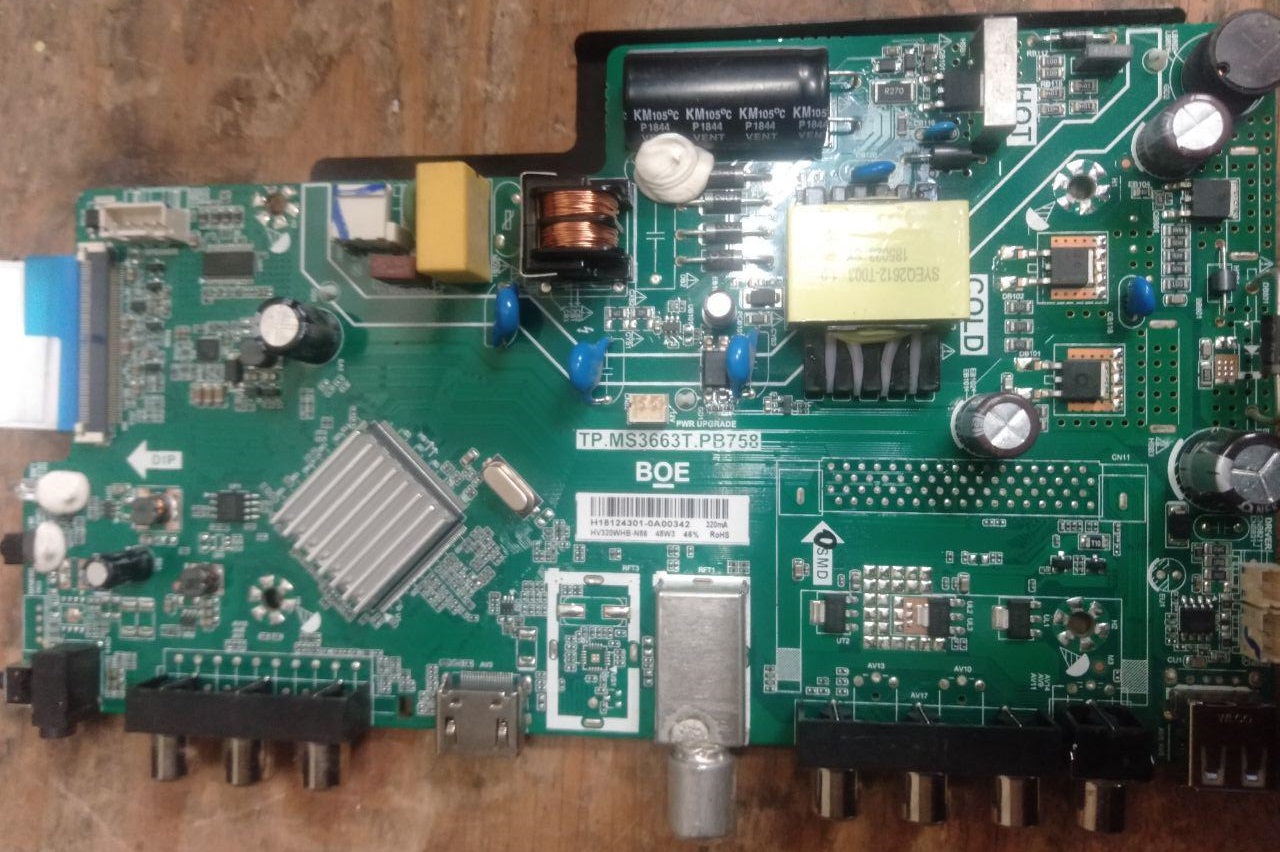

TP.MS3663T.PB758 LED TV Board
TP.MS3663T.PB758 is a combo non-smart LCD/LED TV Driver Board.
General Features and Specifications:
Brand/Mark: China Universal
Model: TP.MS3663T.PB751
Main Chipset:
Product: LED TV
Resolution: 1366×768
Panel: 32 to 40 Inch
Backlight: 320ma-550 mA 48 W
HDMI Ports: 1
Component: Yes
Tuner: 1 (2nd optional)
USB Ports: 1
VGA Port: No
Scart: 1 (Optional)
DTS Studio Sound™ Yes
Analog Audio Out AV Out
Digital Audio Out (SPDIF) Yes
Service Code:
Flash Size: 8 MB
Firmware Type: Backup Dump
Firmware Name:
Note: The following given firmware dump backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware and then extract you will get the folder. Now load the file by the programmer. For More Detail about the download, process watch the video Click Here
TP.MS3663T.PB758 firmware files free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS3663T.PB758_1366x768_DAIKO_Dump | Download |
