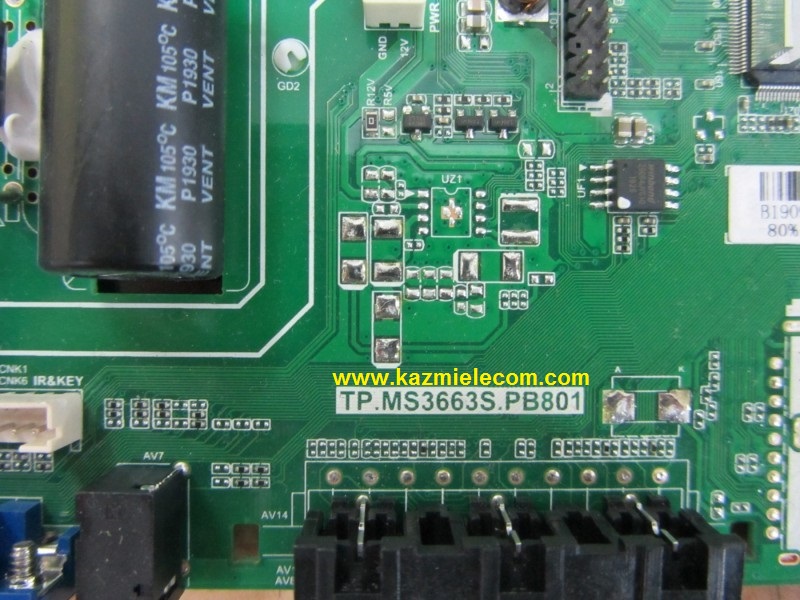

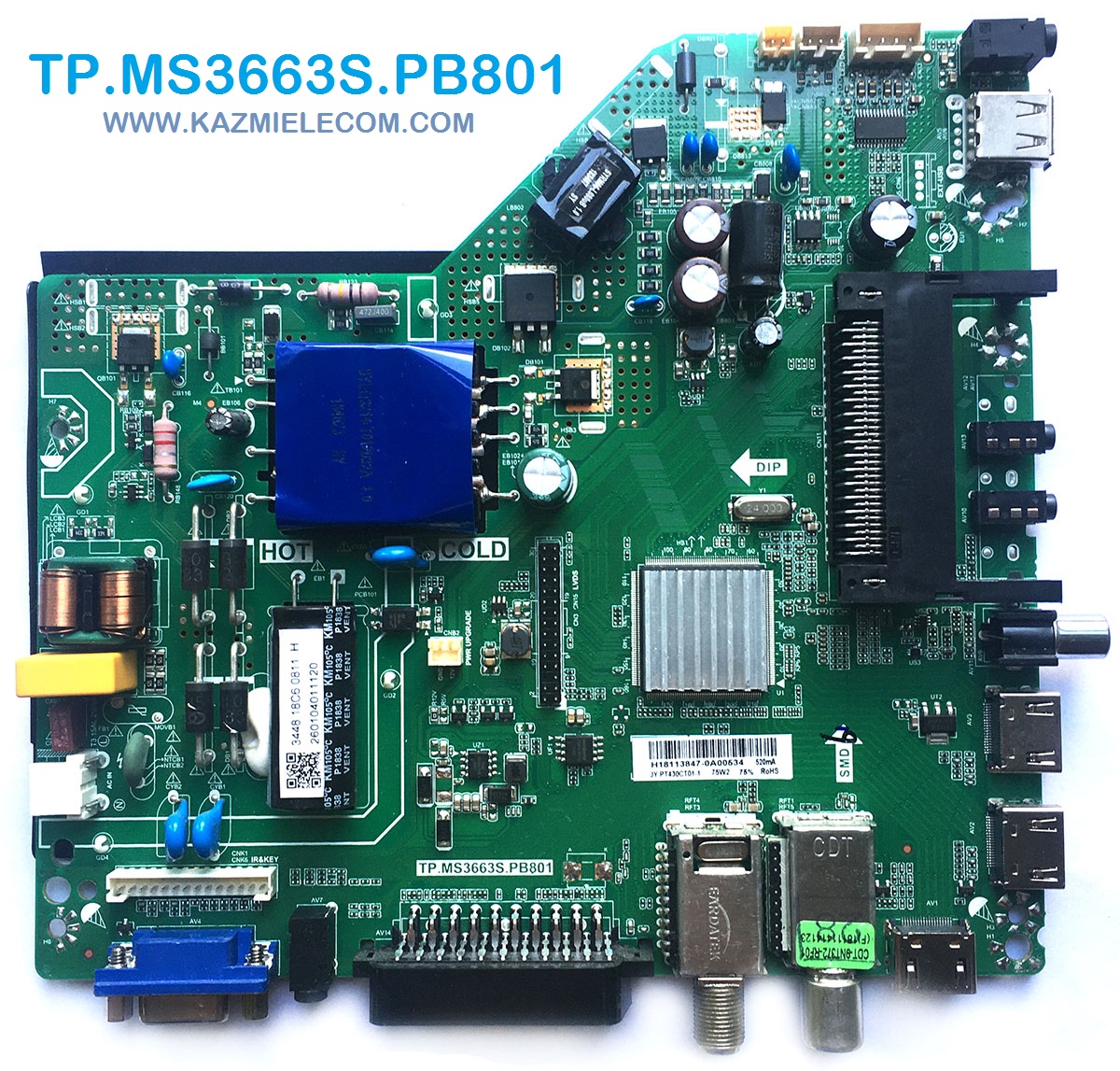

TP.MS3663S.PB801 LED TV Board
TP.MS3663S.PB801 is a combo HD&FHD DVB LED TV non-smart Board. It has a supported FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect a set-top box, Blu Ray players, and gaming console, and also has more than one USB port to connect hard drives and other USB devices and play multimedia as well. It has a Dolby Sound system that Supports 16 Watts sound output and HDR Display viewing. TP-MS3663S-PB801 can support multiple LCD/LED panels. TP_MS3663S_PB801 firmware files are given below for free of cost download to support technicians.
General Features and Specifications:
Brand/Mark: China Universal
Model: TP.MS3663S.PB801
Main Chipset: MSD3663LSA
Product: LED TV
Resolution: 1920×1080
Panel: 32 to 46 Inch
Backlight: 45-53V 600mA 65W
HDMI Ports: 3
Component: Yes
Tuner: 2
USB Ports: 2
VGA Port: Yes
Scart: Yes
DTS Studio Sound™ Yes
Analog Audio Out AV Out
Digital Audio Out (SPDIF) Yes
Service Code: 8899
Firmware Type: USB Boot, Backup Dump
Firmware Name: MSD3663_OB3353_55.bin
Note The following given firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download firmware files:
Download the following given firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.MS3663S.PB801 firmware files free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS3663S.PB801_1366X768_AKAI_USB | Download |
| 2 | TP.MS3663S.PB801_1366X768_ARCELIK_USB | Download |
| 3 | TP.MS3663S.PB801_1366X768_General_Dump | Download |
| 4 | TP.MS3663S.PB801_1366X768_Harper_Dump | Download |
| 5 | TP.MS3663S.PB801_1366X768_Moonx_Dump | Download |
| 6 | TP.MS3663S.PB801_1366X768_Roison_Dump | Download |
| 7 | TP.MS3663S.PB801_1366X768_Samsung_Dump | Download |
| 8 | TP.MS3663S.PB801_1366X768_Sencor_Dump | Download |
| 9 | TP.MS3663S.PB801_1366X768_Vison_Dump | Download |
| 10 | TP.MS3663S.PB801_1920x1080_ARCELIK_USB | Download |
| 11 | TP.MS3663S.PB801_1920x1080_Daiko_Dump | Download |
| 12 | TP.MS3663S.PB801_1920x1080_Dexp_Dump | Download |
| 13 | TP.MS3663S.PB801_1920x1080_Moonx_Dump | Download |
| 14 | TP.MS3663S.PB801_1920x1080_Samsung_Dump | Download |
