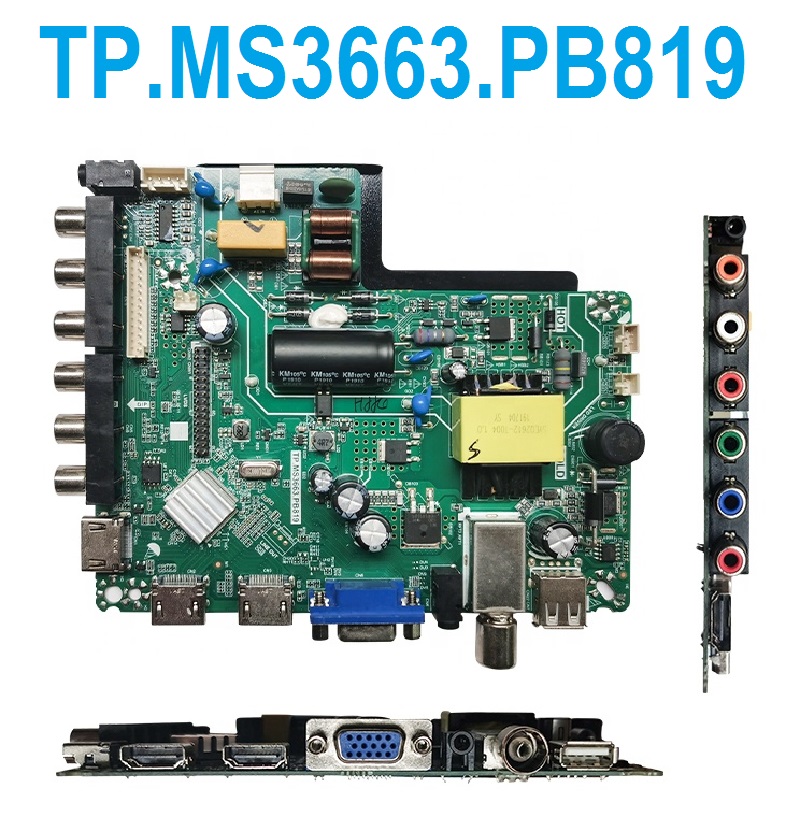

TP.MS3663.PB819 LED TV Driver Board
TP.MS3663.PB819 is a combo HD&FHD DVB LED TV non-smart Board. It has a supported FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect a set-top box, Blu Ray players, gaming console, and also have more than one USB port to connect hard drives and other USB devices and playing multimedia as well. It has a Dolby Sound system that Supports 16 Watts sound output and HDR Display viewing. TP.MS3663.PB819 can support multiple LCD/LED panels. TP.MS3663.PB819 firmware files are given below for free of cost download to support technicians.
General Features and Specifications:
Brand/Mark: China Universal
Model: TP.MS3663.PB819
Main Chipset: MSD3663LU
Product: LED TV
Resolution: 1366×768
Panel: 32 to 40 Inch

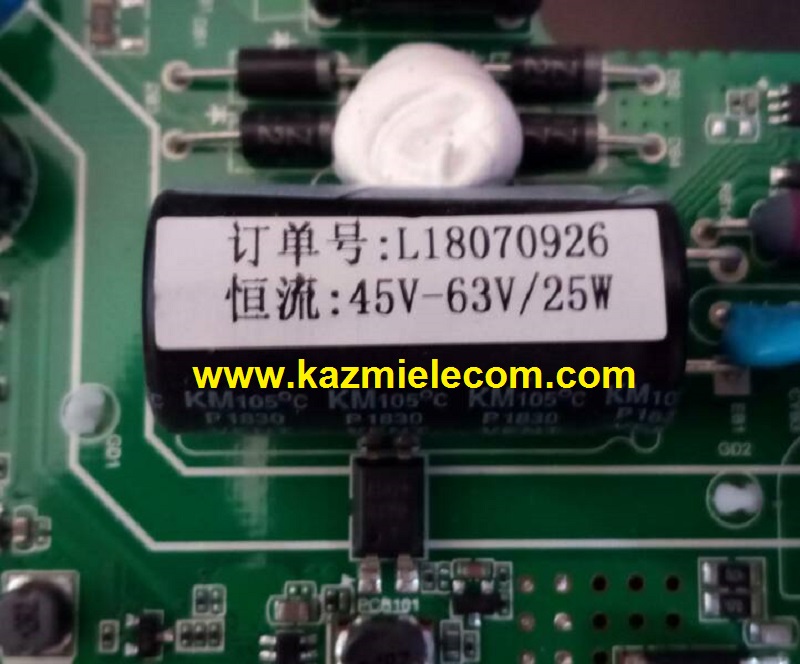

Backlight: 45V-63V 25 W
HDMI Ports: 3
Component: Yes
Tuner: 1
USB Ports: 1
VGA Port: Yes
Scart: No
DTS Studio Sound™ Yes
Analog Audio Out AV Out
Digital Audio Out (SPDIF) Yes
Service Code: 8899
Firmware Type: USB Boot, Backup Dump
Firmware Name: MSD3663LU_OB3353_71.bin
Note The following given firmware is USB bootable and dumps backup files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download firmware files:
Download the following given firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
Here are below some TP.MS3663.PB819 firmware files free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS3663.PB819_32COKBADZ_Backup_Dump | Download |
| 2 | TP.MS3663.PB819_1366x768_Backup_Dump | Download |
| 3 | TP.MS3663.PB819_1366x768_CRISTOR 32LH310_USB | Download |
| 4 | TP.MS3663.PB819_CONDOR L32P4100_Backup_Dump | Download |
| 5 | TP.MS3663.PB819_CRISTOR 32LH330_USB_Firmware | Download |
| 6 | TP.MS3663.PB819_KROHLER TK-32-DL-01_Backup_Dump | Download |
| 7 | TP.MS3663.PB819_TELESTAR TSLD-32 TD CJ19_Dump | Download |
CAN YOU PLEASE HELP WITH THE LINK TO DOWNLOAD 55 INCHES IKON TV WISDOM SHARE FIRMWARE
TP338PC821
No need to load firmware. just reset to factory default. follow the link and watch the video for a better understanding:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Firmware link:
https://www.kazmielecom.tech/2018/10/22/tp-ms338-pc821-software-free-download.html
PLEAS BHAI ZP.V53RL.671 KA SOFTWERE 1920X1080 UPLODE KAREN SHUKRIA
can help and learn me for change logo with edit file ?
if you know about hexadecimal or you use hex workshop then you can modify but you should take ideas from youtube tutorials. or simply use logo change tools
tp.ms3663.pb819 fhd reso master
NA
