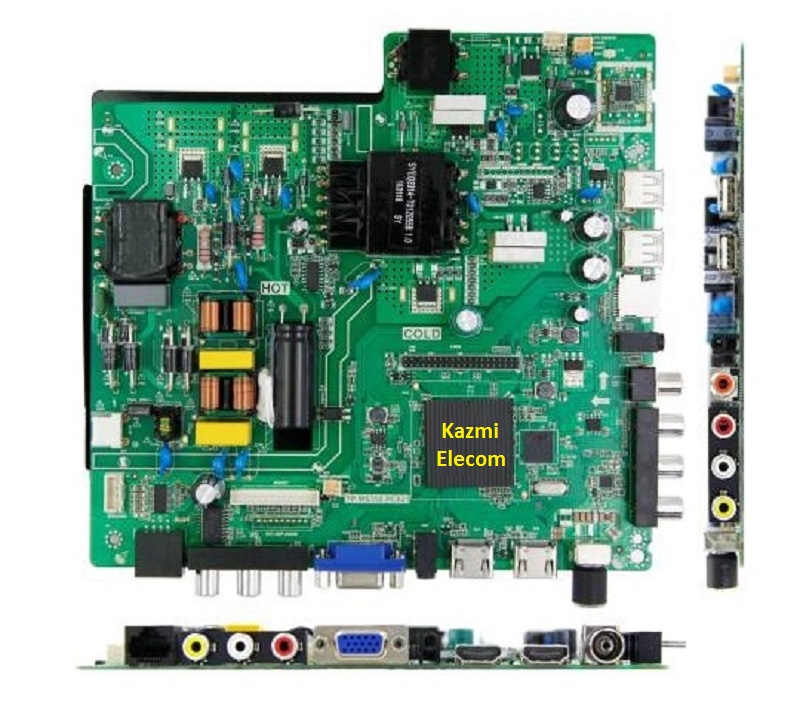

TP.MS358.PC821 Smart & Wifi ATV Board
TP.MS358.PC821 is a high-speed network driver board with an FHD resolution of 1920×1080. It is dedicated to 49″ to 65″ screens. TP_MS358_PC821 has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS358-PC821 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphones also.
TP.MS358.PC821 has a LAN/RJ45 Connector interface port also for the wired/cable internet network. TP_MS358_PC821 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP-MS358-PC821 android board are very good and the Response rate is very efficient. TP.MS358.PC821 china smart network board has an android 4.4.4 version.
Technical Specifications & Features:
Brand/Mark: Mstar FHD Smart LED TV Main Board
Main Board Model: TP.MS358.PC821
Main Chipset: MSD6A358ATH-003D
OSD Language:
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)
Operating System: Android 4.4.4
CPU: Quad-Core A35
CPU Frequency: 1.5 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512Mb/1 Gb DDR
Rom: 4/8 Gb eMMC
Backlight Power/Voltage: 35v to 180v
Backlight Current: 300-680mA
Audio Output: 2x8w
Resolution: up to 1920×1080 (49” to 65″)
Panel Power: 12V
Tuner Type: R842
Power Input: 100-240V AC
Service Code: Menu+1147
Firmware Name: msd358_4G_512M_AS_ref56.bin
Firmware Type: USB upgradeable
Product: Elite 50DN5 (Lebanon)
Note: The following given firmware/software is USB upgradeable. Download all parts of the required resolution and then extract/unzip anyone of them you will get the folder. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here is below TP.MS358.PC821 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS358.PC821_1920x1080_512MB_4G_ELITE.part1 | Download |
| TP.MS358.PC821_1920x1080_512MB_4G_ELITE.part2 | Download | |
| TP.MS358.PC821_1920x1080_512MB_4G_ELITE.part3 | Download | |
| TP.MS358.PC821_1920x1080_512MB_4G_ELITE.part4 | Download | |
| TP.MS358.PC821_1920x1080_512MB_4G_ELITE.part5 | Download | |
| 2 | TP.MS358.PC821_1920x1080_512M_4G_Pakistan.Part1 | Download |
| TP.MS358.PC821_1920x1080_512M_4G_Pakistan.Part2 | Download | |
| 3 | TP.MS358.PC821_1920x1080_1G_8G_Amman.part01 | Download |
| TP.MS358.PC821_1920x1080_1G_8G_Amman.part02 | Download | |
| 4 | TP.MS358.PC821_1920x1080_1G_8G_Pakistan.part01 | Download |
| TP.MS358.PC821_1920x1080_1G_8G_Pakistan.part02 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Firmware File:
X2-19014_50DN5_TP.MS358_PC821_20190720_150535_CV500U1-T01 V03_ELITE_2400-EPR0
CS437356_FWB_F19002_MS358_PC821_A20_PAKISTAN_LC490DUY_SHA2_WB_S06_NOLOGO
Can we hard reset wisdom share without installing firmware. As I installed some app from aptoid and it went to standby. Now when I turn it on it passes the wisdom share then says android is upgrading app 1 of 1. Then goes to standby. I don’t know what’s the problem. Plz advise
yes you can try same as android phone
But tv doesn’t on goes to standby automatically after wisdom share logo
Kazmi sab Pakistan wali file not found message pe hai. Kindly update link. Kindly advise Samsung remote chalet GA Pak file pe?
remote not confirm. link replaced
tp.ms358.pc821 firmware not downloading
watch video on the homepage of the website
tp.ms358.pc821 1gb ram and 8gb rom software missing
sir we have a 49 inch wisdom smart cloud led tv in our mosque. and its board is tp.ms358.pc821. it has 2 gb ram and 32 gb rom plz provide me its software. i have installed the software available here but led become very slow.
do not to try update software. installed software is fine
thanks for the software sir… can we change its remote?? because the original remote is not working and why these pakistan files are not downloading and showing error.
server issue. try universal remote
Sir plz advise ab Pakistan file that Samsung remote working or not. Plz share experience if some 1 have done it?
mostly Samsung remote works
Sir tp.HV530.PC821 or be.to.ms358.PC821
Dono same Bord hain kia
plz provide us 2gb ram and 32 gb rom software for our mosque led board no. tp.ms358.pc821.
how to install samsung remote with this software?? please guide
I need software for non hd tv for board TP.MS.358.PC.821
Sir system damaged please upgrade system araha hai android ka logo show ho raha hai sirf
reset to recovery mode or load the software
hello sir mere pas 50 inch wisdom share cloud tv ha jis ka borad TP-MS358.512- 4G ha meri led me google play store ni ha us me aptoide tv ha joik theak se kam ni krta plz mje ic ka hal batay me chahta hu google play store install ho jay.
dear playstore install nai hota yeh builtin hota hy. ap youtube app install kar k cehck karen warna koi hal nai
Dear Kazmi Sb
mere pass 50 inch ki china Led ha or me ne firmware download ki thi or install kr di pr ab remort kam ni kr rha or led b wisdom share pr aa kr hang ho jati ha kon sa soft ware ho ga jo mere remort k sath pair ho ga or board ha TP.MS358.PC821 512 RAM 4GB ROM wala ha pls soft ware bata de k ab kai karon.
smart utube b ni chal rhi wo crosswalk project b download ni ho rha pls rehnmai farmay.
dear aise to kuch kehna mushkil hy. software load karne se pehle pata ho k remote konsa hy aur RAM/ROM kitni hy. ab koi bhe dosra try kar k check karen. agar chal jati hy to remote universal laga len
Salam sir please help me I have. Ms358.pc 821 .1 GB ram and 8 GB ROM.android 8.0 I want to update my TV it have old version of wisdom share cloud TV . none animation boot loot of wisdom share I want to upgrade it . please help and tell where I can download that files please
w.salam dear no need to update. chinese board has final version installed in it
Hello Sir,
The links from 1 to 10 Pakistan are not working. All are dead.
Please upload the new links.
I need the software Tp.MS358.PC821 SAMSUNG IR. Do you have sir?
link replaced. you may download now
Mujhay tp.ms358.pc821 ka board chaeya
apni local market visit karen
will these pakistani link software would be installed on tp.ms.358.pc821? if yes then which remote will work?
and sir please also tell me that it has built in playstore or not? i have installed 4G-Elite software in it, it has no playstore.
if tv is working then no need to update more. software not tested by me
actually i want to install a pdf reader app in my led.but when i install any app on it, led gets power off and when i power on it again led shows a message of android is upgrading and after few seconds it power off again. that is why i want to upgrade android.. can i install the pakistani link android in my led??
may be updated software not available. because chinese brands has the final version installed in it
Salam sir g mairy pas TP.MS358.PC821 ka board hai 55” key china lED UHD 4k issue ye aa ra led on kro wisdom share py aa k khudi bnd ho jati Mai ap key website py software download krny aya tha lkin ap key website py 1920 into 1080 ka pra howa software mjy 3840 into 2160 ka chaheye software kindly guide kr dy.. thanks
i think yeh board 4k nai hy. ap apne panel ki resolution check karen ya lvds cable k pair check karen kitne hen
Sir maine same Motherboard ke connection nikal ke dobara laga diye ab blank screen aa rhi hai tv pe kya karna chahiye do u have solution ?
lvds connection me he problem hy. panel ki data sheet check kar k set karen ya phir ready made lvds laga len
Boss,
After downloading any .rar files are getting extracted.
It’s showing error in extraction.
Can you please help.
download all parts then extract any one with 7zip
Sir mene is board wale tv pe factory reset chalaya. Us me pir masla agaya thaa scene green ho gai thi to ap ki video se dekh kar kar dea set band kar k on kea to screen mirror ka masla hoa to wo bhi ap ki video se set kar dea. Lekin pir screen resolution ka masla agya words aur chti details bhut block type dekh rahe hain kia ap bata sakta hain wo kese set karo. Shukria
lvds mapping adjust karen. aur tv ko door se observe karen may be sahi ho
Sir mene ke mapping us se bhi set ni hoa kia ap ko kisi tareeqe se me pic send kar karsakta hoo ya video. Pixel resolution grainy hain
phir to apka wehm hoga. ap short sa video clip bana k forum pe post karen
Bhai jan yeh palistan wali file download main Ms358.pc801 ki file aa rahi hai…….Board tu PC821 hai…. will it work
yes it will work
Bhai pakistan wali file main 821 ki bajaye 801 a raha hai. Or agar 801 bhi 821 pe install ho jata hai to remote samsung chale ga ya koi or. Agar kisi ne kiya hai to experience share karain. Thanx
the file will work but remote not confirm
Dear kazmi SB kindly advise ab the remote if somebody used Pakistan file or kindly upload Samsung remote file.?
Bhai aik e part extract karna hai baqi nae?
dusri bawt ye k her file mian 3 se 4 files hai setup ki konsi wali setup file hai kindly guide kardain
han aik he part extract kar len. ur folder k andar jitni bhe files hen sab usb me dalni hen
jazakAllah bhai
Bhai 801 wali file 821 pe load ki hai kissi ne to experience share karain. Or remote samsung hai ya koi or . Plz advise. Thanx
I am stuck on a blank page when I tried to download the files. What should I do ?
watch video on the homepage of the website
assalam o alaikum
bhai mere pass 50 inch ka led tv hai tp.ms358.pc821 4gb rom 512 mb ram mere led tv ka software vesion pehle 8.0 tha jab mene update kia hai tu 4.4. hogya hai or youtube bhi nhi chal or remote bhi sahi kam nhi kar rha
chinese software update nai hote. apko kisne keh dia update karne ko. isme 4.4 he aya hy 8 nai. software ka farq hy is waja se remote sahi kam nai kar raha hoga
i have a 55″ led with TP MS358 PC 821 with 1 Gb ram and 4Gb rom but the about info is showing 32Gb Rom, 4Gb Ram and android version 8.0.0. Esa ku dikha raha hai?
or aik or masla bh hai, led ka wifi antenna connected wifi k signals sirf aik bar show kar raha even though the router is just outside the room. kia issue ho sakta?
rom/ram ki tension na len woh 32 gigabyte hogi maybe jo k 4 gigabit he hoti hy.. wifi k liey router ki position change kar k check karen
Tp.ms358.pc821
1g-8g
Need softwer
sony ki files de janaab kaazmi sahab
Bonjour. S’il vous plaît quel logiciel pour renverser l’image de TP.s512.pb83 et comment l’installer. Merci d’avance
https://www.kazmielecom.tech/2020/05/14/tp-s512-pb83-software.html
which software i download for board elit,pakistan,ammman TP.MS358.PC821
what is the issue why you want to install it?
helloo brother my led model (TP.MS358.PC821) is working fine but youtube is not working. when i start smart youtube and select a video to play it just freez on please tell me the solution of it kindly. im sharing my whats app number aswell. +923214151270
watch the video and install yt application
Sir Maine recovery sy ja k TV reset kiya jis k bd colours b Khan hogy, wo panel setting sy ja k tekh hogya par screen seedhi ni horhi panel setting sy b try kiya par what sy b ni hoa.
Ab software update krna chah rha hun 4G 512MB ha aur board b yhe h ab kia Elite waly saray parts download kr k USB mai kru? Ya koi b ek part?
update karne ki zarorat nai hy. dobara try karen seedhi ho jye gi
MSD358.4G.512.AS.REF60.BIN pleace ye wala samart tv sofware chahiy mujhay jaldi connect karain shukria
download
HELLO sir:- i have ultra slim 55′ 4K china wisdom.share coronet Andriod smart tv.inside the board there TP.MS358.PC821 tage. unfortunatly the tv starting with Andriod upgrading and application optimazing 1 to …. something then waiting second and go off to standby without finishing starting.now the tv couldn’t start finished the problem is persist.i try to hard reset but itis not possible to hard reset and also i try to software reset with master recovery software but couldn’t reset.and finally i try to installe the software which is i found on your site TP.MS358.PC821 but it is not working.please help me how to solve this probem.
https://www.kazmielecom.tech/how-to-load-firmware/
the firm ware that try to install is TP.MS358.PC821_1920x1080_512MB_4G_ELITE.i downloaded all software part and i extracted one of the part and copy to USB filash and i inserted the filash into the tv usb port and i plug the tv power and started the tv.the tv started the same as the previous problem not starting to installed the softaware.
dear, board specifications may be different. Ram/Rom may be differ. The reference number may differ so rename the refxx to sos. remote and logo may change by loading this firmware
By Mistake i have done some changes in hide menu of my lcd now screen is black what should i do
Revert the steps back if possible otherwise load firmware
Assalam u alikum,
Sir mera board TP.MS358.PC821 hai or os main android 4.4.4 install hai, main android update 8.0 karna chahta hun, kese update karun? kya apke website wale software se update hojye gai or download pakistan wali files karun? please rehnomai farmaiye
w.salam dear isko upgrade nai kar sakte. apko board change karna hoga
salam alaikum sir ji.. muje ideocon smart tv tp.sk518d.pb802(n) software download millega.
TP.SK513S.PB802 (N) PANEL MODEL JR425D3HC1L
TV MODEL E43EL1100 43” SMART FHD LED TV
TP.SK513S.PB802(N) KE JAGA PAR TP.SK518D.PB802 SOFTWARE USE KAR SAKTE HAI KYA
No
ASSALAMUALIKUM Sir.
wisdom share smart cloud tv 43” 8gb/1gb pe sirf Smart Tube chalta hai.Baki ke apps update nahin horaha hai, brouser ka update option aata hai par update nahin hota. Plz suggest any solution. motherboard kit TP.MS358.PC821
w.salam dear can not upgrade this board. change board for latest android version
hello i I have a 4GB internal storage and 512M memory wisdom share smart cloud tv. Board bd_tp_ms358_pc821 .
and i want to update my tv so i can instal apps so what software do you recommend
can not update. change board with latest android version
