TP.MS358.PB818 Firmware

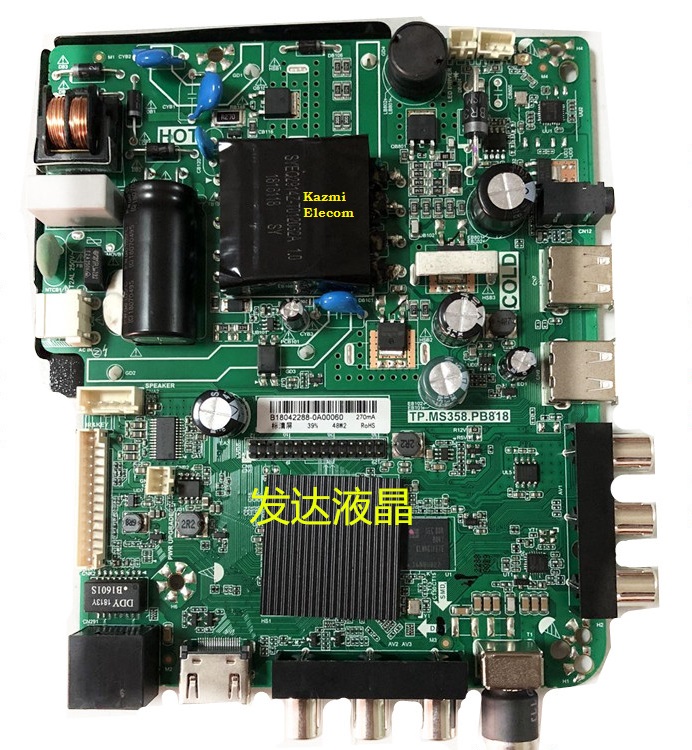

TP.MS358.PB818 is a high-speed 4-Core network driver board with an FHD resolution of 1920×1080. It is dedicated to 28″ to 38″ screens. TP_MS358_PB818 has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS358-PB818 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphones also.
TP.MS358.PB818 has a LAN/RJ45 Connector interface port also for the wired/cable internet network. TP.MS358.PB818 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP.MS358.PB818 android board is very good and the Response rate is very efficient. TP.MS358.PB818 china smart network board has an android 4.4.4 version.
Technical Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP.MS358.PB818
Main Chipset: MSD6A358ATH-003D
OSD Language: Chinese, English, Arabic, Indonesian
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)/DTV (DTMB)
Operating System: Android 4.4.4
CPU: A35*4
CPU Frequency: 1.5 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512 Mb DDR SD-Ram
Rom: 4Gb eMMC
Audio Output: 2x8w
Resolution: up to 1920×1080 (28” to 38″)
Panel Power: 12V, 5V
Power Input: 100-240V AC
Service Code: Menu+1147
Firmware Type: USB Upgradeable
Firmware Name: rename the main bin file as “msd358_4G_512M_AS_ref45.bin” or “msd358_4G_512M_AS_sos.bin”
Note: The following given firmware is USB upgradeable. Download all parts of the required resolution and then extract/unzip anyone of them you will get the folder. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.MS358.PB818 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS358.PB818_1366x768_512M_4G_REF45.part1 | Download |
| TP.MS358.PB818_1366x768_512M_4G_REF45.part2 | Download | |
| TP.MS358.PB818_1366x768_512M_4G_REF45.part3 | Download | |
| TP.MS358.PB818_1366x768_512M_4G_REF45.part4 | Download | |
| TP.MS358.PB818_1366x768_512M_4G_REF45.part5 | Download | |
| 2 | TP.MS358.PB818_4G_512M_REF35.part1 | Download |
| TP.MS358.PB818_4G_512M_REF35.part2 | Download | |
| TP.MS358.PB818_4G_512M_REF35.part3 | Download | |
| TP.MS358.PB818_4G_512M_REF35.part4 | Download | |
| TP.MS358.PB818_4G_512M_REF35.part5 | Download | |
| 3 | MSD358.PB818_1366x768_4G_Ref48.part1 | Download |
| MSD358.PB818_1366x768_4G_Ref48.part2 | Download | |
| MSD358.PB818_1366x768_4G_Ref48.part3 | Download | |
| MSD358.PB818_1366x768_4G_Ref48.part4 | Download | |
| MSD358.PB818_1366x768_4G_Ref48.part5 | Download | |
| 4 | MSD358.PB818_1920x1080_4G_Ref48.part1 | Download |
| MSD358.PB818_1920x1080_4G_Ref48.part2 | Download | |
| MSD358.PB818_1920x1080_4G_Ref48.part3 | Download | |
| MSD358.PB818_1920x1080_4G_Ref48.part4 | Download | |
| MSD358.PB818_1920x1080_4G_Ref48.part5 | Download | |
| 5 | TP.MS358.PB818_1G_8G_REF48.part1 | Download |
| TP.MS358.PB818_1G_8G_REF48.part2 | Download | |
| TP.MS358.PB818_1G_8G_REF48.part3 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Aslam o alikum sir
Sir mera tv service setting mein panel setting se dead per chala gaya hai ab us mein kuch b nazar nahi aa raha na he service setting aa rahi hai. Es ka solution bata dein kya hai. MS358PB818 board hai.
Ab muj ko kya karna ho ga plz bata dein
Waiting ur reply
software dobara karna hoga
BD_TP_MS358_BP818_A10
This is my 32inches lcd
I want this software
Sir,pls provide BD_MSD358-818 software
Sir mere pass bhi hai usme kon sa software download krna hoga kyoki esme jo virson hai uske 5 part hai main konsa karu download
TV Modal No. TP.MS358.PB518
download all parts then extract any one of them
es kay lia MS358_PB818 wala board hai ye jo oper software hai ye 5parts he hon ga ya just aik part download kr ky usb mein laga layein
dear post me sab kuch likha hua hy read kar len
Sir g zafar is par konsa remote kam kar raha ha
China Smart Tv mein software karne hain kon sa software ho ga plz recommended..
Board No. BD_TP_MS358_PB818
Panel AU32_T315XW03
Upgrade Name msd358_4G_512M_AS_ref48.bin
app kay pas ref45.bin aa raha hai wo kar doun koi issue tu nahi aye ga.
please reply as soon as possible
agar set working hy aur update karna chahte hen to na karen. agar set band hy to kar len. but file rename karni hogi apko jese apne likha hy. me rename karna bhol gya tha. aur ref ki jaga sos kar len
Sirf sound aa raha hai picture nahi aa rahi service menu mein panel setting se dead ho gaya tha.
Wo app ne oper likha hai usb mein file name change kar kay likha hai jo app ne likha hai oper.
apne panel ki resolution pehly confirm kar len kion k is software me dosri resolution mere pas nai hy
“Au32_T315xw03”
32inch ka smart led hai wisdom share wala.
Thanks for your response
Tp ms358 pb818 is software par konsa remote kam karta ha sir g
no idea
Mein ne file name ye likha hai after download
Msd358_4G_512M_AS_ref45.bin
ok agar is se na ho to ref45 ki jaga sos likh dena
Kya app muj ko bata saktay hain kay 32inch ki kya resolution hoti hai? Qk muj ko koi idea nahi es ki resolution ka.
Phelay jo software howa tha us mein service manu mein panel mein Au32_T315xw03 likha tha.
Meharabi ho gi janab ki
1366×768
Sir mein ne ye wala software kiya mager boot ni howa usb se. Ref45.bin se kiya.
Mere led mein jo phely software tha wo “msd358_4G_512M_AS_ref48.bin” tha.
System info:
Version 20190402_202918
Build Time 20190402_202918
OCS 414613
Board BD_TP_MSD358_PB818
Plz system dead hai just sound hai ab kya karon? 03110556688 my nbr whatsapp plz ur nbr for help.
Dear post me clear likha hy k file ko rename kar len. ap rename kar k try karen hona chahye
Ye software kr raha hon 1366×768 but kafi time se red and blue right blink kr rahai hai ab kya karna hai.. solution
YE SOftware kr raha hon 1366 768 but kafi red and blue ho raha ha solution for help
kar kion rahe ho
Sir es software ki aur resolution mein upload krein. HD UDH FHD ect.
Ya es mein ye he ai hai
filhal mere pas yehi hy
Thanks
I need emmc pinout for this board tp.ms358.pb818
ref35 kitni resolution ky lia hai
1366
1920×1080 resolution ka kab tak load ho jaye ga????
filhal mere pas nai hy
Sir namaste mera set hang condition hai board name- CV338H-A50 sony remot mai hai eska resolution 1920*1080 hai evam EMMC 512 mb 4 GB hai ka software chahiye pen drive wala.Pls help me.thanks.
https://www.kazmielecom.tech/2018/11/21/cv338h-a50-software-free-download.html
Kya ye ab 1920×1080 resolution mein ap ky pass aa gaya hai? Reply
zafar sab ap kaha se hain pakistan main
mera number ha 0333-4287304
Yes from rwp
AOA
azhar bhai tp.ms358.pb818 ka jtag connection bta dain plzzzzzzzz
sorry is k nai hen mere pas
My software is running fine but the software is outdated. Applications are not working due to update problem. I have the above TP.MS358.PB818.
what would you recommend?
chinese board not have the updates. so no need to do anything
Sir softwair load nai ho rha tp
.ms358.pb818 please help me
is board me chipset ka farq hoga
Aslamuloukm sir is my remont kun sa chalyee ga
please sir give me bd tp358 pb818.1920×108
Tp.ms358.pb802 try this
Ref48 both resolution files same not 1920×1080 boht 1366×768 please upload 1920×1080 correctly.
use configuration files to change panel resolution:
https://www.kazmielecom.tech/category/customer-config-files
sir meri LCD k Graphic Ka Masla ha uska Board (TP.MS358.PB818 )he Or remote SamSung hay iski Resulation kesay pata Lagta hay Agr Ap software email kar den maharbani hogi.
dear check kr k he pata chale ga k kia issue hy. software ka issue nai hy. maybe setting se ho jye ya phir panel me issue ho sakta hy
TP.MS358.PB818 model
Malaysian samsung
32 inches.
Software chahiyai bhai. Board tadeel kar diya hai. Aab picture ulta hai.
service menu se seedhi ho jye gi
Service menu mai kaha per hoga jis say screen seedah ho jaega. Setting button pay hoga kia ?thanks for reply
panel setting. flip/mirror mode
Dear sir,
do you have, by any chance, file msd358_8G_1G_ref45.bin ?
Try to find it and no success.
I have board BD_TP_MS358_PB818 on panel AU32_T315XW03
Thank you in advance for answer.
universal led smart tv TP.MS358.PB818 Sofware needed
Good
Respected Brother Aslam-o-Alaikum!
Brother I Need msd358_8G_1G_AS_ref60 Software For 32 Inch LCD.
You are requested to please facilitate and If possible Inform me on 0321-8461984 Whatsaap No.
w.salam dear ap software karna kion chahte hen
Brother Iska Software Dead ho gya ha. Wisdom Share py a kar restart ho jata ha. Software k elawa sollution ha tu plz bta den.
reset karen:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
otherwise, terminal se hoga aur final hal software
Respected Brother Mene Power & -, Power &+, +-, Chanel + and – Sab Try Kiya but recovery men nai ja rha set. Ab Kiya karun. Mene MS 358 PB 818 Wala 4G 512 Wala Software Try Kiya File Rename kar k. Ye 1 GB 8GB Wala Board ha. Mene file Rename ki but display nai ata Led red blink Karti aur Software nai ho raha. Apki Jo Last File Is Page py ha 1GB 8B wali wo Kafi try ki but download nai ho Rahi. Plz Mashwara den. Ya tu iski recovery file Dy den ya Software. Plz Azhar Bhai.
Brother Mene All Method Apply kiye han. Power -, Power +, + -, Chanel + Chanel -, But Recovery mode men nai ja rha. Remote Ka Power Button Pehlay Kharab tha tu mene Auto On Kiya Huwa tha. Kahin ye reason tu nai. Power Button wali Wire Jo Board Sy Remote eye kit ki Taraf ati jeck Sy nikali thi. Usko sold direct kar Liya tha. Sir G Plz Iska Software ya Recovery File Dy den. Men Buhat Mehnat ki. Ab bas ho gyi. MS358_8G_1G_AS_ref60 Software File ha iski. PB818 Board ha. Mujhe Lagta ha Software he Karna padhega.
agar ap technician hen to phir terminal se recovery karen. otherwise, software search kar k load karen
Sir iss board pe Boot LOGO change kaise karen. Maine USB me export kiya hai, aur image jo export hoti hai uski jagah apni marzi ki image rakhi hai aur same name kar k wapis tv me lagaya, phir import kiya aur msg aya “Success”. Lekin logo phir b change nai hua
Kya ghalt kar raha hu?
maybe size ka issue ho ya phir dobara try kar len. apka tariqa to sahi hy
AOA SIR PLZ HELP KARY MARI MARY PAS YAHIU WALA BORD HA JO PIC MA HA MANY SECOND NUMBER WALY SARY PART KIY THY MAGAR JAB MANY USB LAGIYI TV MA KUCH HOVA NI PLZ HELP KARY KONSA SOFT WARE KAARNA HA WAITING FOR REPLY
Board me masla kia hy??
