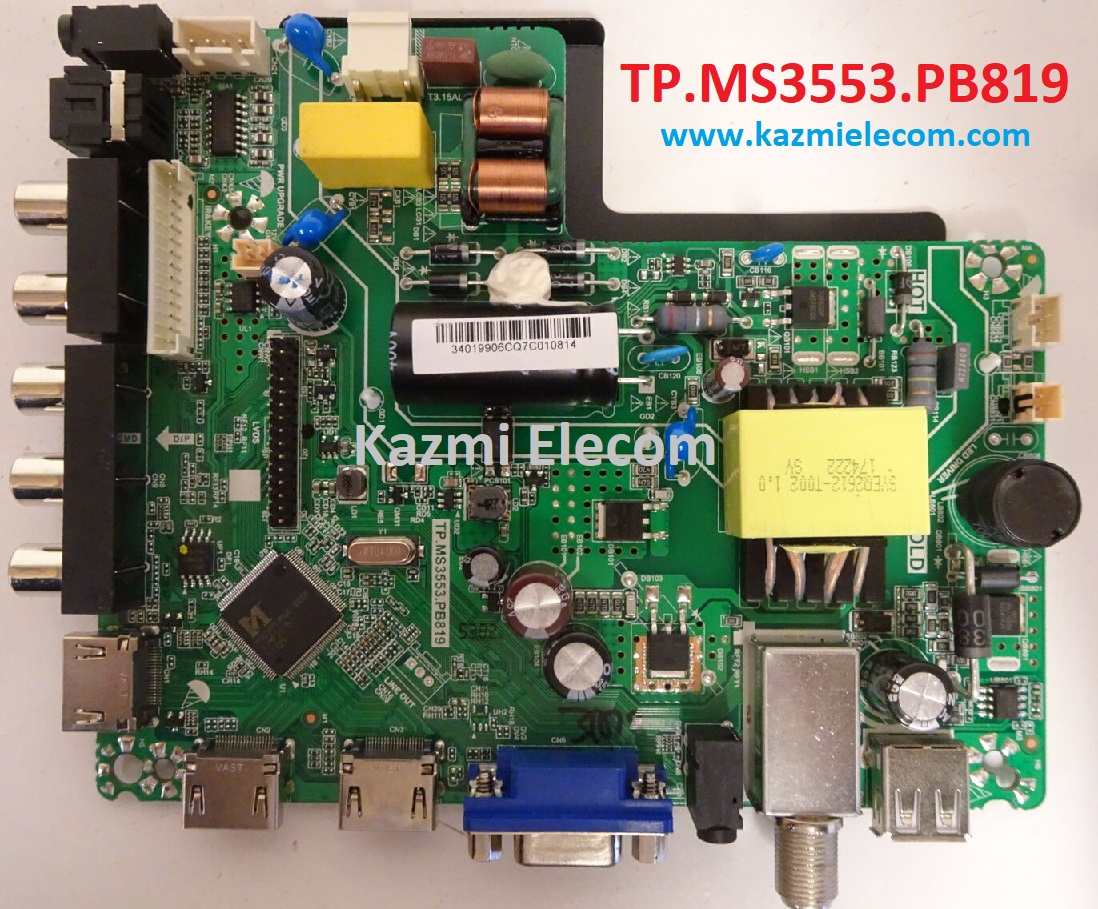

TP.MS3553.PB819 LED TV Board
TP.MS3553.PB819 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This is a Combo Board. The main power module and LED Backlight Inverter Circuit module and ATV Card are builtin into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. TP.MS3553.PB819 firmware files are given below for the technician’s support.
Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. TP.MS3553.PB819 is a Full HD-supported LCD LED TV controller board with a maximum resolution of 1920×1080. It can support 28 to 48-inch HD and FHD panel screens. MSD3553 system processor by Mstar that has excellent graphics results. TP.MS3553.PB819 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: TP.MS3553.PB819
Main Chip: MSD3553
Product: LED TV
LED Backlight: 36-40.8V

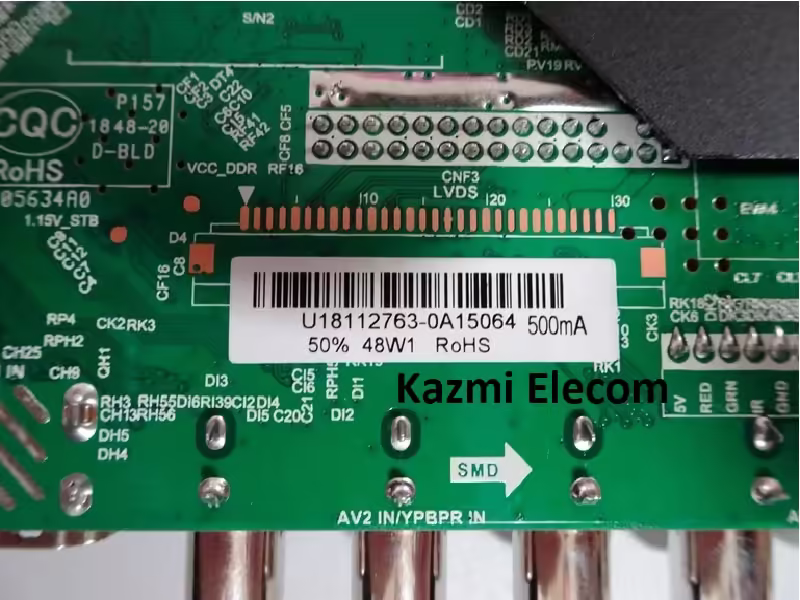

LED Backlight Power: 500mA 48W
Flash IC: 4/8 Mb
Sound Chip: NA
Tuner IC: NA
Screen supported: 32-40 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input 2580 or Menu 1147
Caution:
All the pictures and specification details related to TP.MS3553.PB819 in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.
Pros:
There are many advantages to installing the given TP.MS3553.PB819 USB software or backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given software backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given TP.MS3553.PB819 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
TP.MS3553.PB819 Version Upgrade:
Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software malfunctions due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.
TP.MS3553.PB819 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download your required resolution firmware/software and then extract it, you will get the folder. Now copy the files to USB or write flash ic by a programmer. For more Details about the download process watch the video Click Here
TP.MS3553.PB819 firmware for free download:
